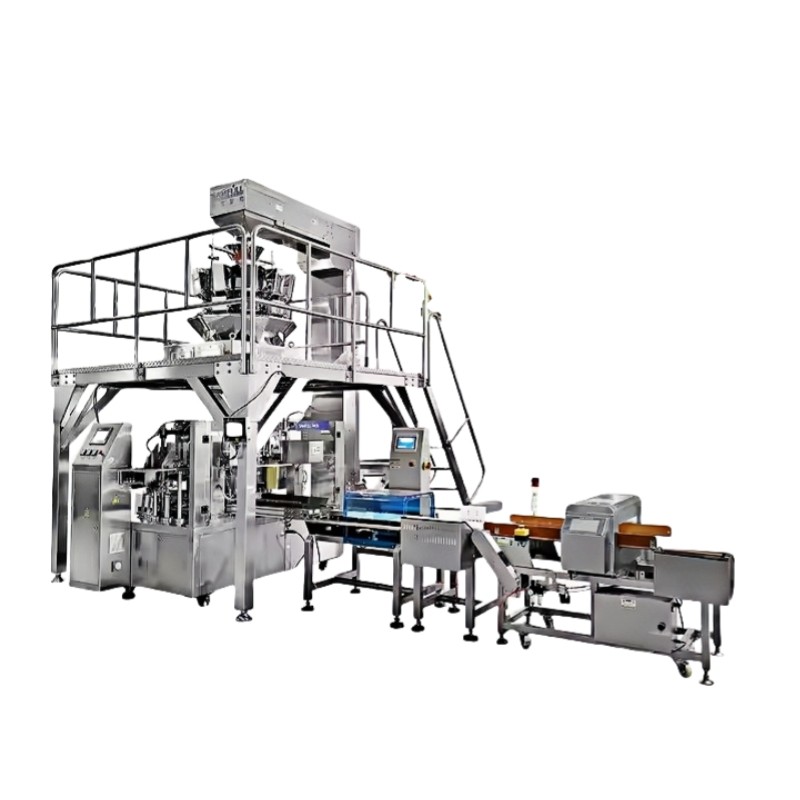

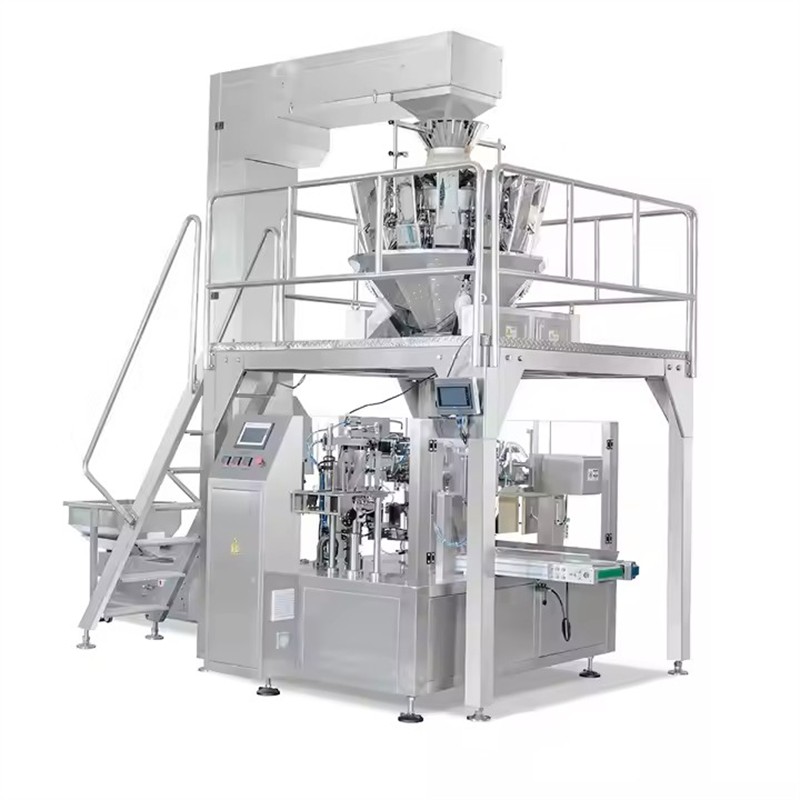

XLY-620 Rotary Premade Pouch Packing Machine

Application
* Granular type: crystal monosodium glutamate, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar,pesticide, fertilizer, etc.
* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam,chili sauce, bean paste,etc.

Product Details

Product Tags

Advantages

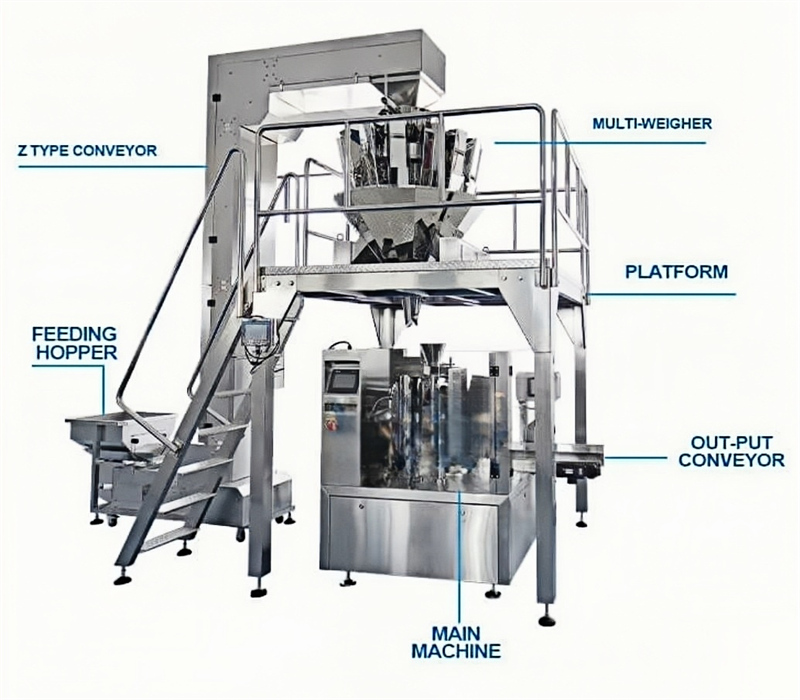

* The pre-made bag packing machine can auto load, pick up bag, open bag, weigh, fill, seal, and output.

*Pre-made bag packing machine is a trend of automatic production, which directly replaces manual, can

achieve packing automation, largely improving production efficiency and greatly reducing costs.

* Contact parts use stainless steel which meet food hygiene requirements.

*Realize electricity -mechanical integr action.With smart touch screen, Stable cam mechanical transmission

technology makes machine stable, low failure rate and low energy consumption.

* Machine can auto detect and feedback. If no bag or bag didn't open during the production process,

Machine will stop filling and sealing, then alarm. So it will not waste your film or product, ensure your

workshop is clean.

* It can use many films,suitable for single-layer PE, PE composite film, CPP composite film, aluminum film,

composite pre-made bag, paper bag, etc.

* Machine use pre-made bags, which can reduce the loss of film, beautiful bag shape,good sealing,

improved product grade, So it becoming more and more popular in the world.

* Changed different size bag quickly, putting bag device's size can be easily adjusted, saves manpower

and time.



Machine parameters

Model XLY-620 XLY-621 XLY-622
Bag sizes (L) 65-400mm 70-450mm 200-450mm
Bag sizes (W) 55-200mm 70-250mm 200-300mm
Packing Speed 30-65/bags/min 25-55/bags/min 20-45/bags/min
Measurement Method Auto weigher
Measuring Range 100-1000g
Bag type Stand up pouch, zipper bag, 3 side sealing bag,4 side sealing bag, premade
Packing Material OPP/CPP,OPP/PE,PET/PE,PE
Electrical source and power AC380V.50-60Hz 4.75kw
Equipment size L5000xW2000xH3700mm L5000xW2000xH3700mm L5000xW2000xH3700mm


Application

* Granular type: crystal monosodium glutamate, seeds, chemicals, sugar, chicken essence, melon

seeds, nut, pesticide, fertilizer,etc.

* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical

materials, fine white sugar,pesticide, fertilizer, etc.

* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce,

peanut butter, jam,chili sauce, bean paste,etc.
