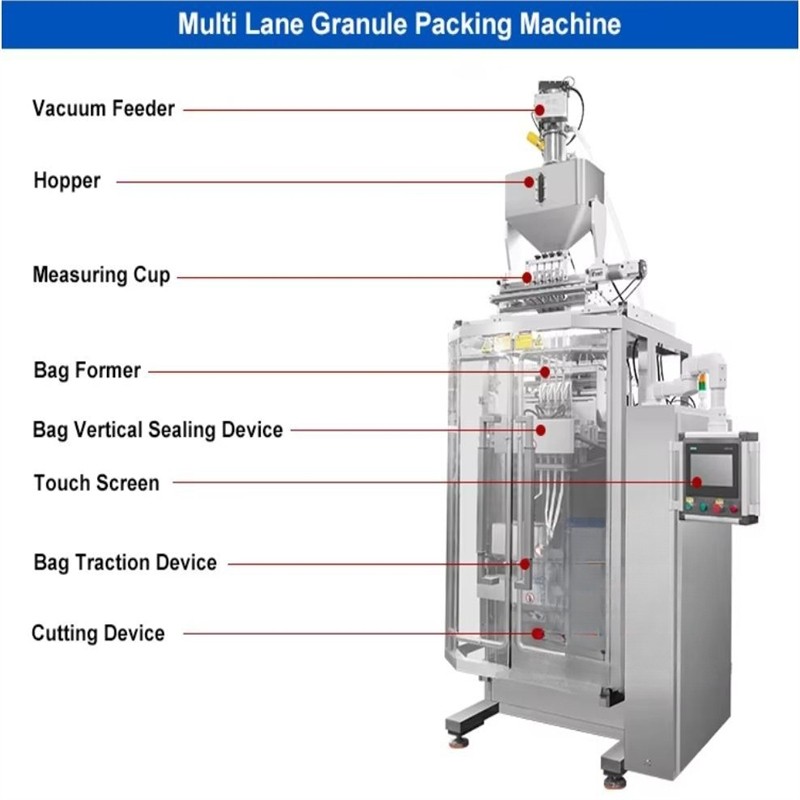

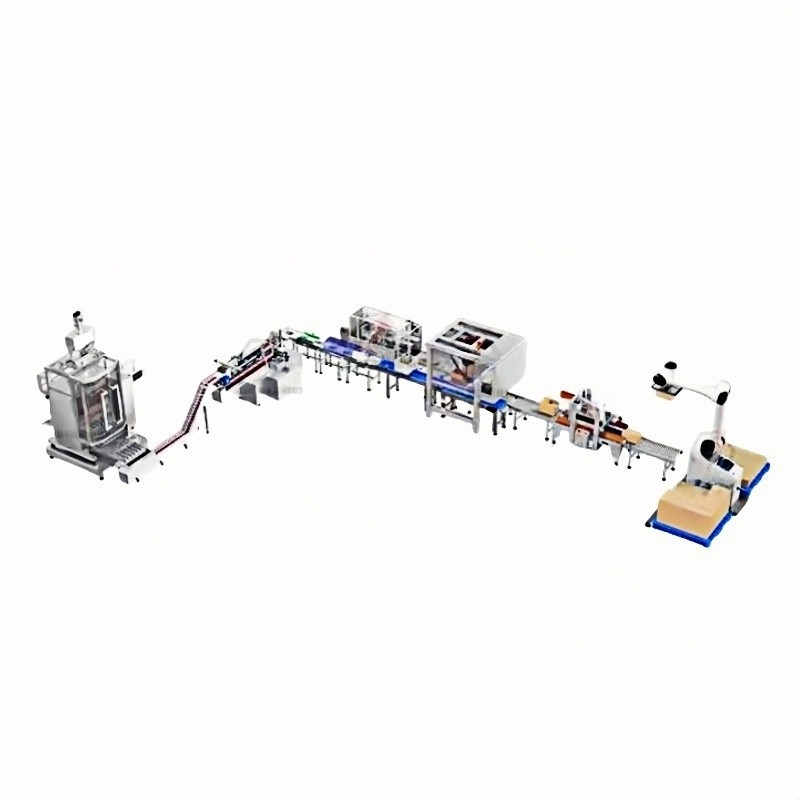

XLY-804 Automatic Multi-lane Instant Coffee Powder Packaging Machine Line

Application
This machine is suitable for packaging various instant beverage granular materials, such as 3-in-1 coffee, 2-in-1 coffee, freeze-dried coffee powder, 2-in-1 milk powder, sugar, salt, tea leaves, etc.

INQUIRY

Product Details

Product Tags

Machine parameters

Lane Number	2-8 lanes
Measuring Range	1-30g (customized)
Packing Speed	30-50 lane/min
Film Width	Max.280mm
Bag Length	50-180mm
Bag Width	17-65mm
Power	220V, 50/60Hz, 9.5KW
Machine Size	2259(L)1789(W)3035(H) mm
Machine Weight	1200kg

Main Features

1. The production capacity of the whole machine can be customized according to customer needs.

2. Automatic slitting packaging film system, smooth cut.

3. Adopt brand electrical components, more reliable and durable.

4. Servo motor assists in pulling the bag to ensure smooth bag pulling.

5. New frame design, the machine operates more smoothly.

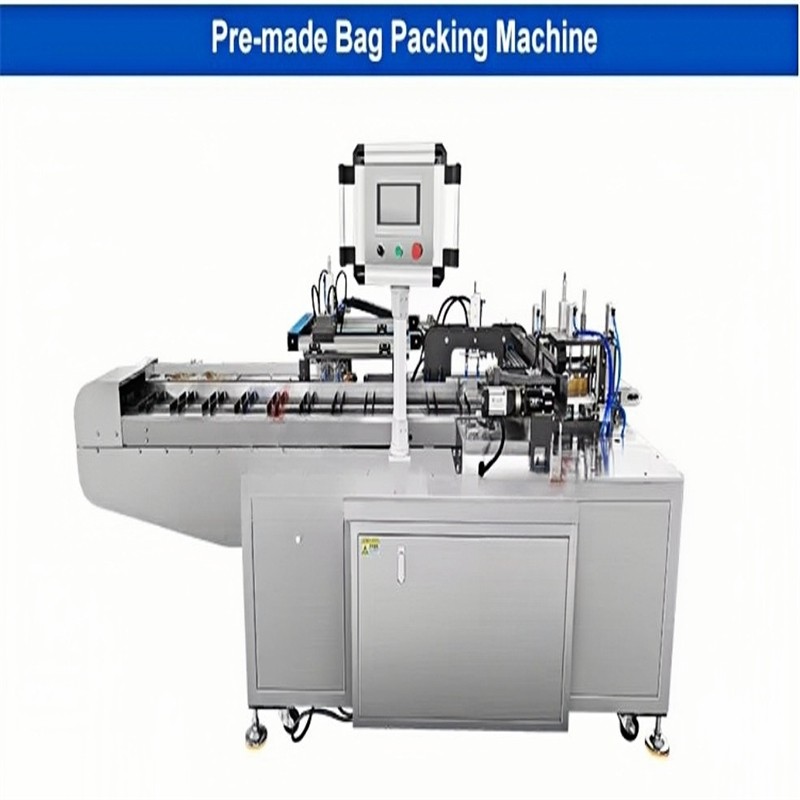

Machine parameters

Bag Length	150-350mm
Bag Width	80-200mm
Packing Speed	12-18 bags/min
Power	380V, 50Hz, 5KW
Machine Size	2885(L)1392(W) 1548(H) mm
Machine Weight	1200kg

Main Features

1. The machine can automatically complete a series of processes such as material conveying, bag

taking, bag opening, feeding, and sealing.

2. It is equipped with multiple sets of infrared detection sensors to achieve no bag opening without

material and automatic shutdown without bag.

3. The packaging specifications of the product can be changed by adjustment without replacing

accessories.

4. The intelligent PLC control system is adopted, and the whole machine operates more stably.

5. The whole machine is made of stainless steel, with a long service life and easy cleaning and

maintenance.

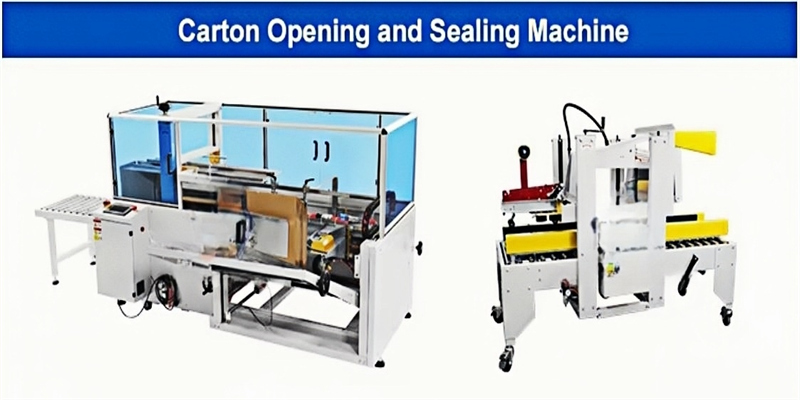

Machine parameters

Carton Opening Speed	18 boxs/min
Carton Size	L250-450W150-400H100-400mm
Adhesive Tape Width	48/60/75mm
Carton Storage Quantity	80-100pcs (1000mm)
Air Consumption	500NL/min
Power	220V, 50/60Hz
Machine Size	Non-standard Customization

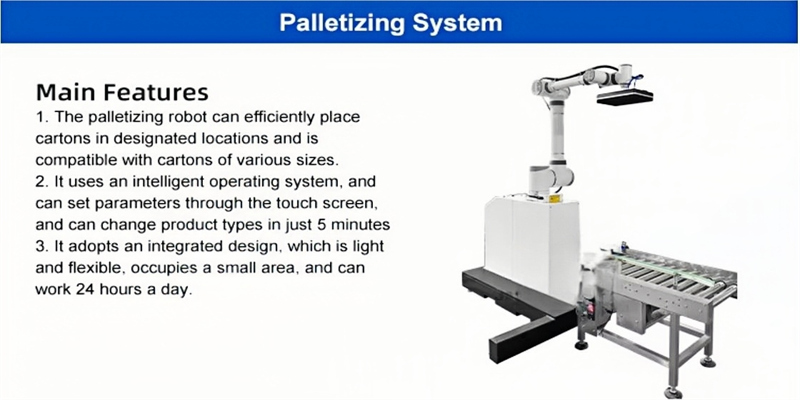

Machine parameters

Body Weight	82kg
Effective Load	20kg
Working Radius	1525mm
Maximum Arm Span	1730mm
Maximum Working Speed	1.0m/s
Maximum Pallet Size	1100*1100mm
Stackable Box Size	L(200-500)W(150-450)H(150-400)mm
Power	220V, 50/60Hz, 2KW
