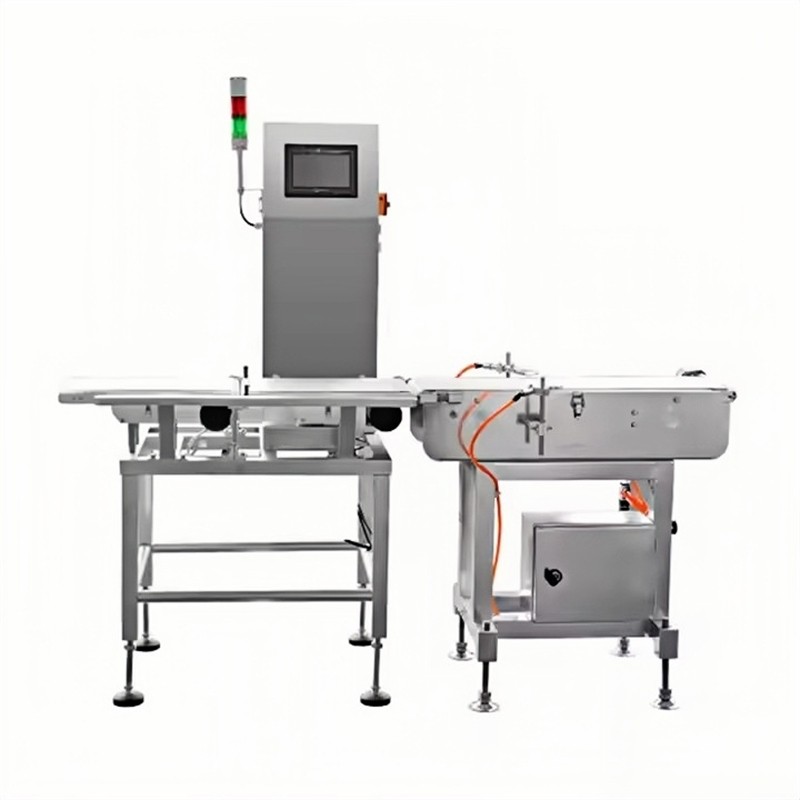

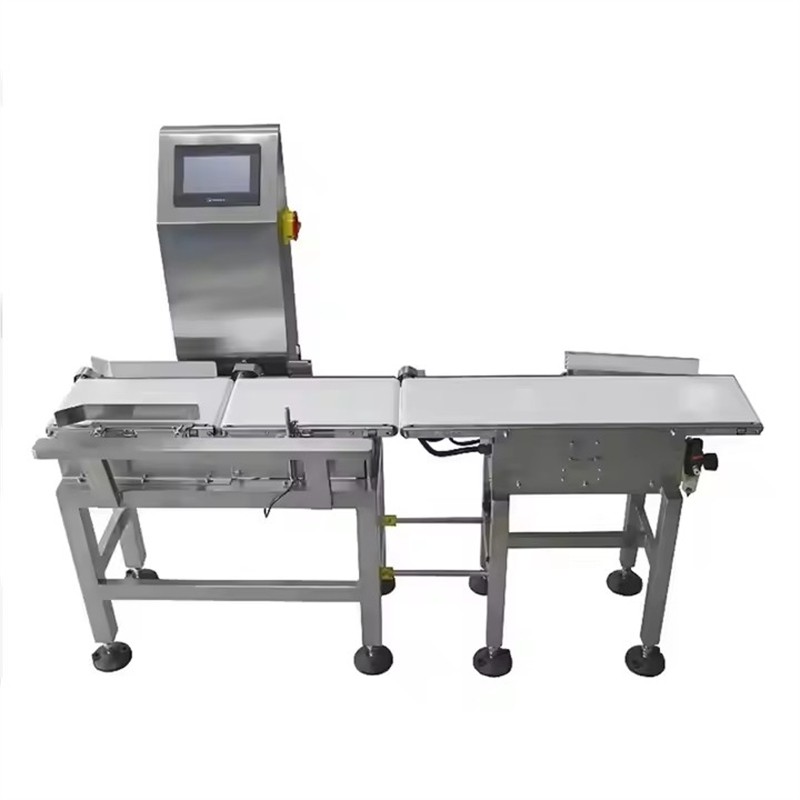

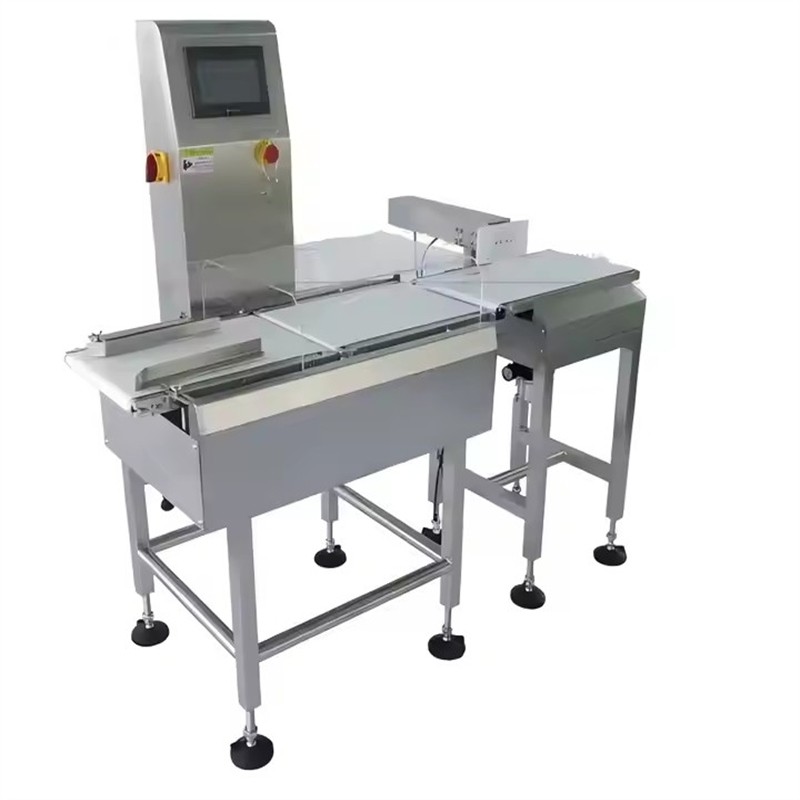

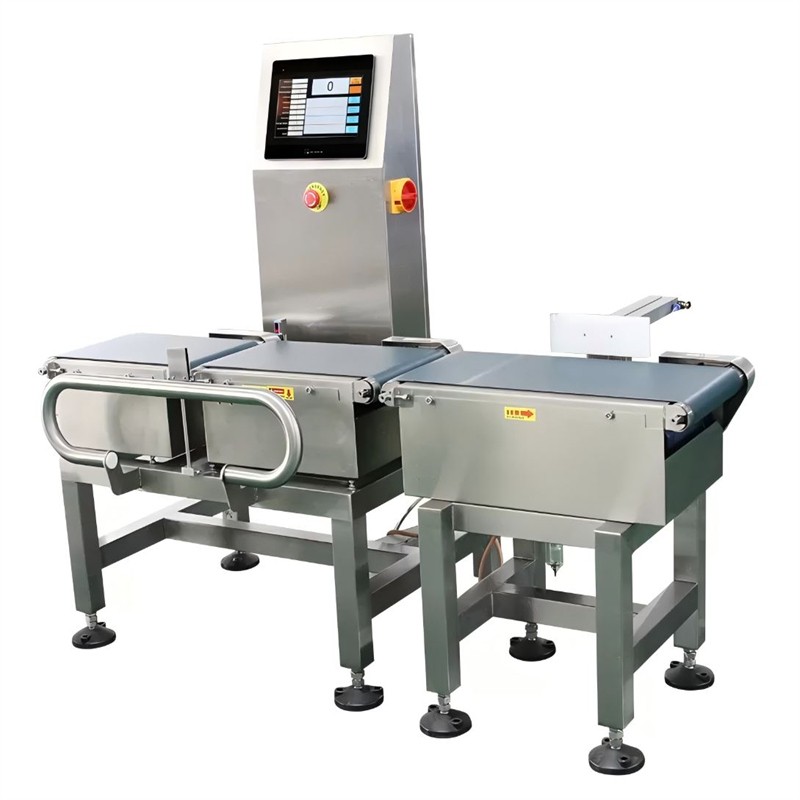

XLY-160L Small Chips Weighing Machine Weight Checking Machine

Functional features:
1. Reinforced stainless steel frame; Comprehensive waterproof design (optional).
2. Adopting German HBM high-precision sensors; Based on high-speed digital signal processing technology, achieve high-speed and
stable detection.
3. Dynamic weight automatic compensation technology; Zero point automatic analysis and tracking technology.
4. 50 sets of product presets; Easy product editing and storage.

INQUIRY

Product Details

Product Tags

Machine parameters

Model	XLY-160L	XLY-230L	XLY-250L	XLY-300L	XLY-400L	XLY-500L	XLY-600L
Weighing Range	10-600g	20-2000g	20-2000g	50-5000g	0.2-10kg	0.5-20kg	10-50kg
Scale Interval	0.05g	0.1g	0.1g	0.2g	1g	1g	5g
Best Accuracy	±0.1g	±0.2g	±0.2g	±0.5g	±1g	±2g	±5g
Max Speed	250 pcs/min	200pcs/min	155pcs/min	140pcs/min	105pcs/min	75pcs/min	75pcs/min
Speed	70m/min	70m/min	70m/min	70m/min	70m/min	60m/min	60m/min
Product Size	200mm (L)150mm (W)	250mm (L)220mm (W)	350mm (L)220mm (W)	400mm (L)290mm (W)	550mm (L)390mm (W)	700mm (L)490mm (W)	1000mm (L)590mm (W)
Weighing Platform Size	280mm (L)160mm (W)	350mm (L) 230mm (W)	450mm (L)230mm (W)	500mm (L)300mm (W)	650mm (L)400mm (W)	800mm (L)500mm (W)	1200mm (L)600mm (W)
Weighing Platform Size	280mm (L)160mm (W)	350mm (L) 230mm (W)	450mm (L)230mm (W)	500mm (L)300mm (W)	650mm (L)400mm (W)	800mm (L)500mm (W)	1200mm (L)600mm (W)
No.of Sorting Segment	2 Segments or 3 Segments
Rejector	air blow, Pusher, shifter
Power Parameter	220V/110V,50/60Hz
Protection Level	IP30/IP54/IP66
Frame Material	304SS

Functional features

1. Reinforced stainless steel frame; Comprehensive waterproof design (optional).
2. Adopting German HBM high-precision sensors; Based on high-speed digital signal processing

technology, achieve high-speed and
stable detection.
3. Dynamic weight automatic compensation technology; Zero point automatic analysis and tracking

technology.
4. 50 sets of product presets; Easy product editing and storage.
