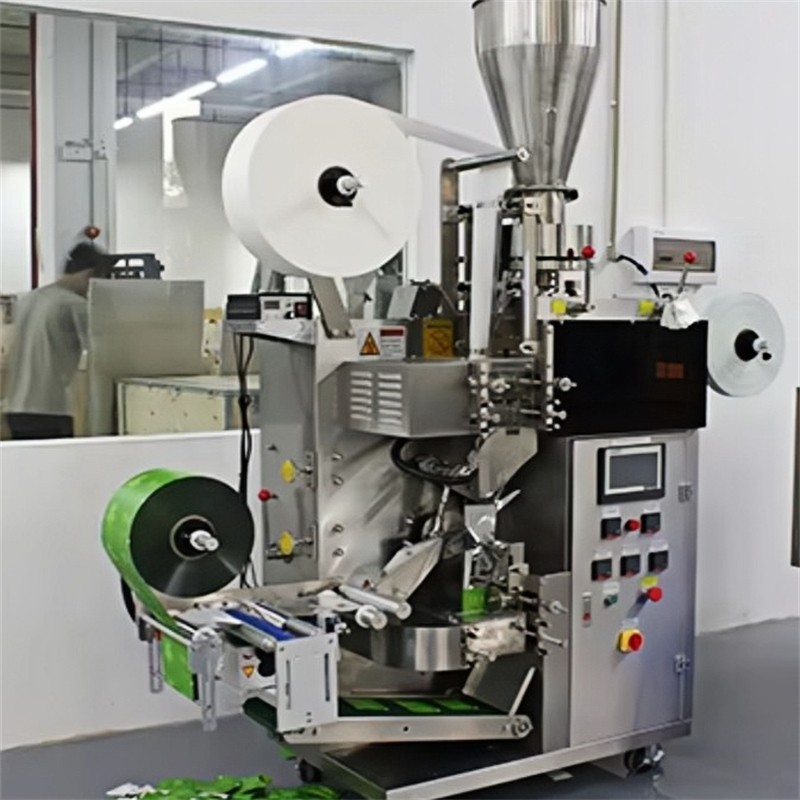

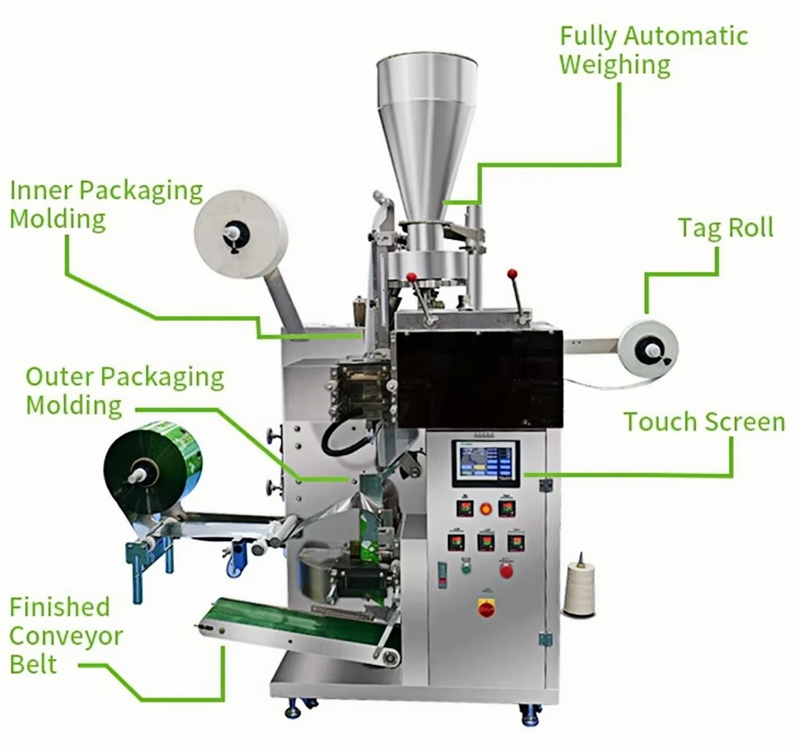

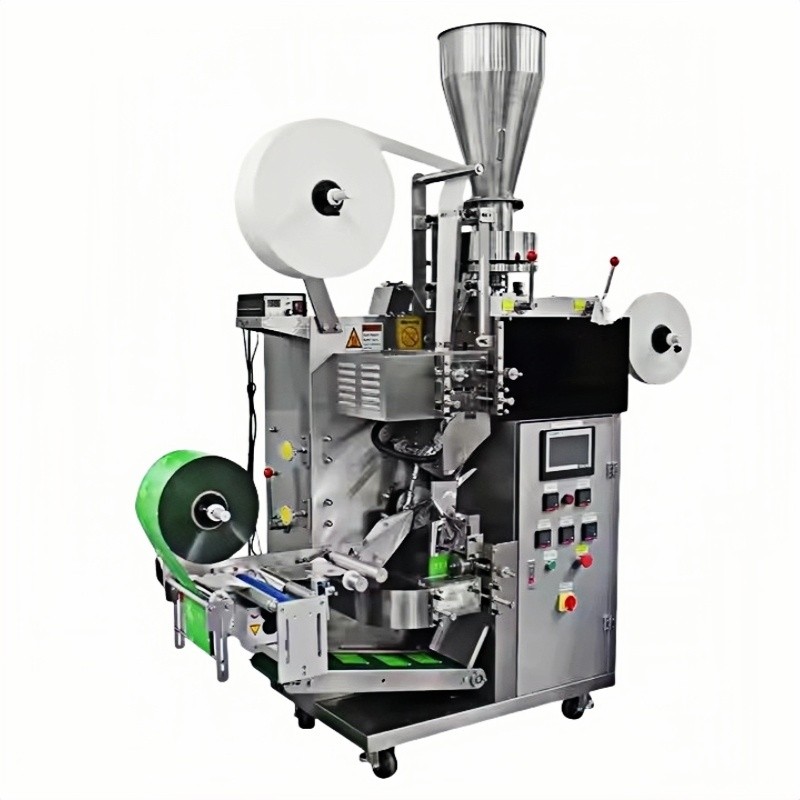

XLY-843 Inside and Outer Tea Bags Making Packing Machine
Machine parameters
Model
XLY-843
Metering way
Volumetric cup
Measuring range
3-15ml
Packing speed
30-40 bags/min
Tag size
L：20-24mm W：40-55mm
Thread length
155mm
Inner bag size
L：50-70mm W：45-80mm
Outer bag size
L：80-120mm W：75-95mm
Power
220V , 50hz , 3.7kw
Size
1750*740*1950mm
Weight
500kg
Packing material
Filter paper,String,Tag, Composite film
Characteristic and Advantage

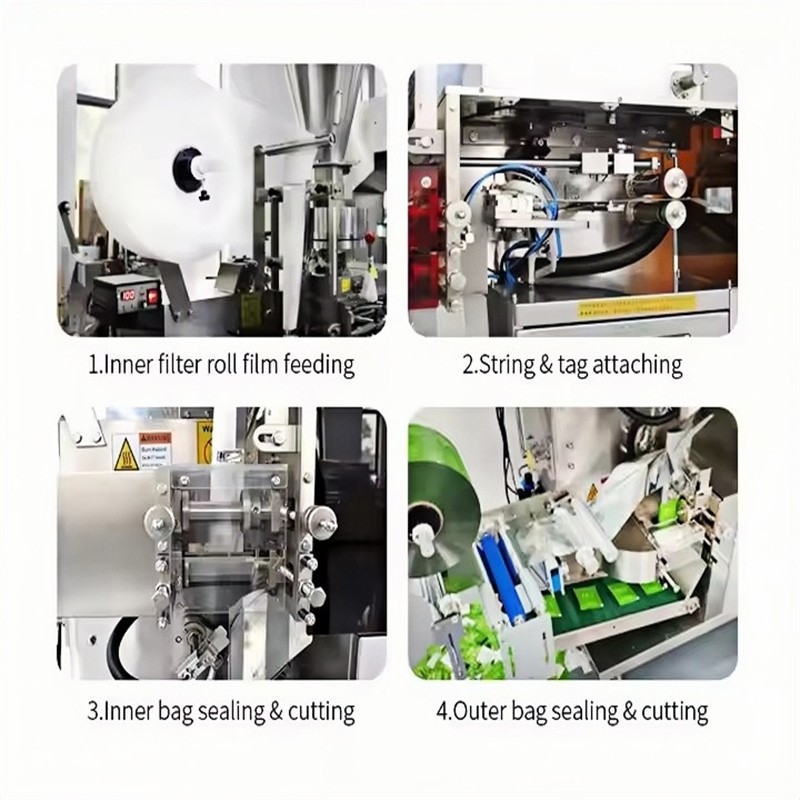

1.Both of the film for inner and outer bag are controlled by the stepper ,motor，which ensure stable
bag length cutting and accurate positioning.
2.The temperature controller is adjusted by PID to make the temperature control more accurate.
3.Overall machine movement is controlled by PLC,with human-machine interface display for easy
operation and maintenance.
Application
This automatic tea bag packing machine is suitable for packing granule broken tea, herbal tea, healthy

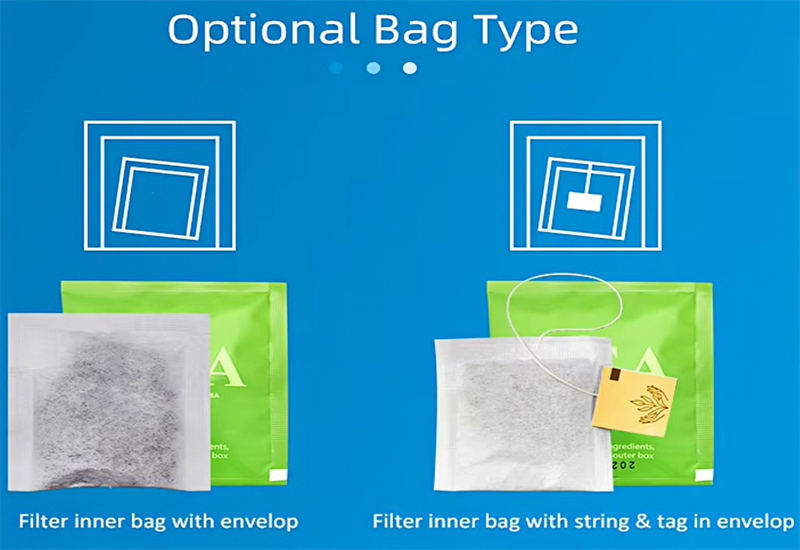

tea, etc into inner filter tea bag with string and tag as well as outer envelope bag.
INQUIRY
-
XLY-120 Granule Secondary Bagging Packing Machine
-

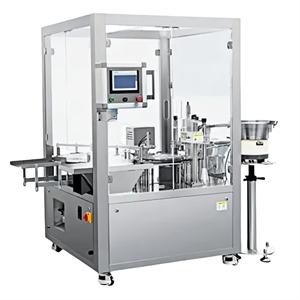

XLY-011 Liquid Powder Filling Stoppering Capping Machine
-

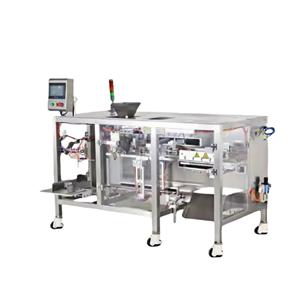

XLY-545 Coffee Powder Mini Doypack Packing Machine
-
XLY-500 Liquid Irregular Shaped Sachet Bag Machine
-

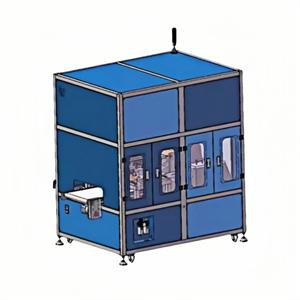

XLY-694 Case/Box Forming Machine for Food Beverage Cans Bags Pouches
-

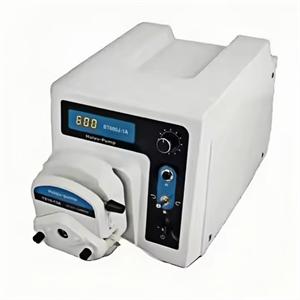

XLY-15-1A Liquid Pump Filling Machine
-

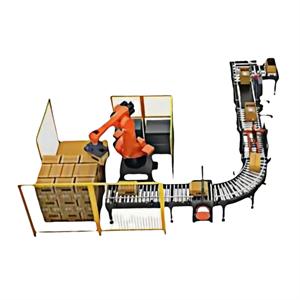

XLY-669 Automatic Packing Machine Robot Carton Box Case Packer
