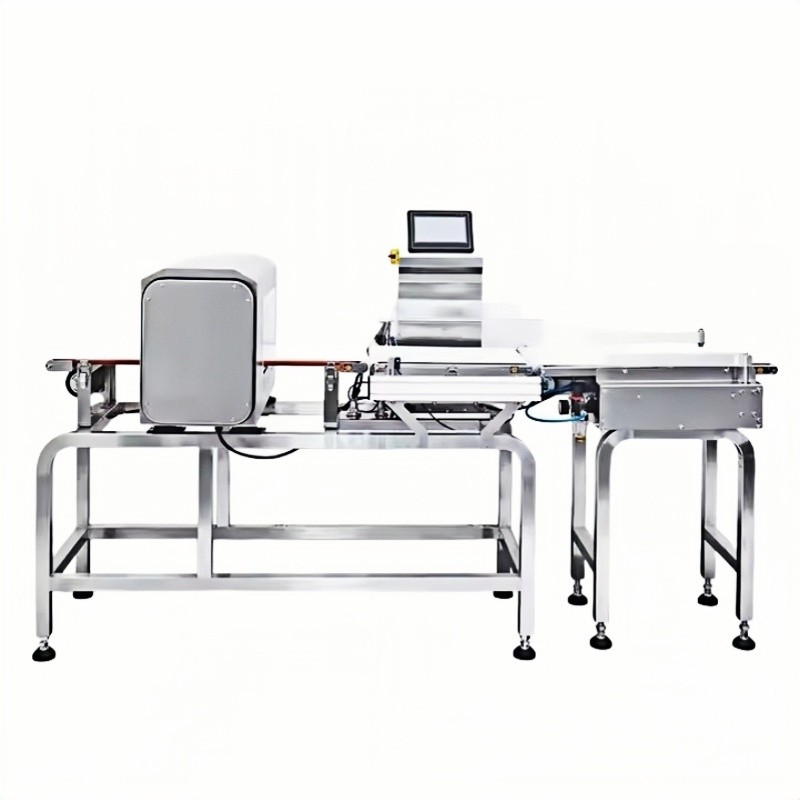

XLY-212 Automatic Combined Check Weigher Machine
Machine parameters
Model
XLY-212
XLY-215
XLY-315
XLY-320
Identify Code
212-1-1
215-1-1
315-1-1
320-1-1
Protection Class
IP54 / IP65
Speed
32~52 m/min
Reject Method
Air Blowing / Arm-reject / Pneumatic Pusher / Slide Type
Pneumatic Pusher / Slide Type
Max Package Size(mm)
300(W)*120(H)
300(W)*150(H)
400(W)*150(H)
400(W)*200(H)
Sensitivity(mm)
Fe:∅0.8 Sus:∅1.5
Fe:∅1.0 Sus:∅2.0
Fe:∅1.0 Sus:∅2.0
Fe:∅1.2 Sus:∅2.5
Power Requirements
200V / 440W / 50/60Hz / 2A
200V / 440W / 50/60Hz / 2A
200V / 660W / 50/60Hz / 3A
200V / 660W / 50/60Hz / 3A
Packing Dimension(mm)
1460(L)*1140(W)*1280(H)
1460(L)*1200(W)*1280(H)
1940(L)*1540(W)*1360(H)
2080(L)*1480(W)*1360(H)
Gross Weight
270KG
290KG
380KG
390KG
Features
1. 32 kinds of languages to choose, 7"standard industrial touch screen displays weight and metal
detecting,easy to operate, new industry standard.
2. Three levels speed to choose in the touch screen, suits for different packaging line with different
packaging speed.

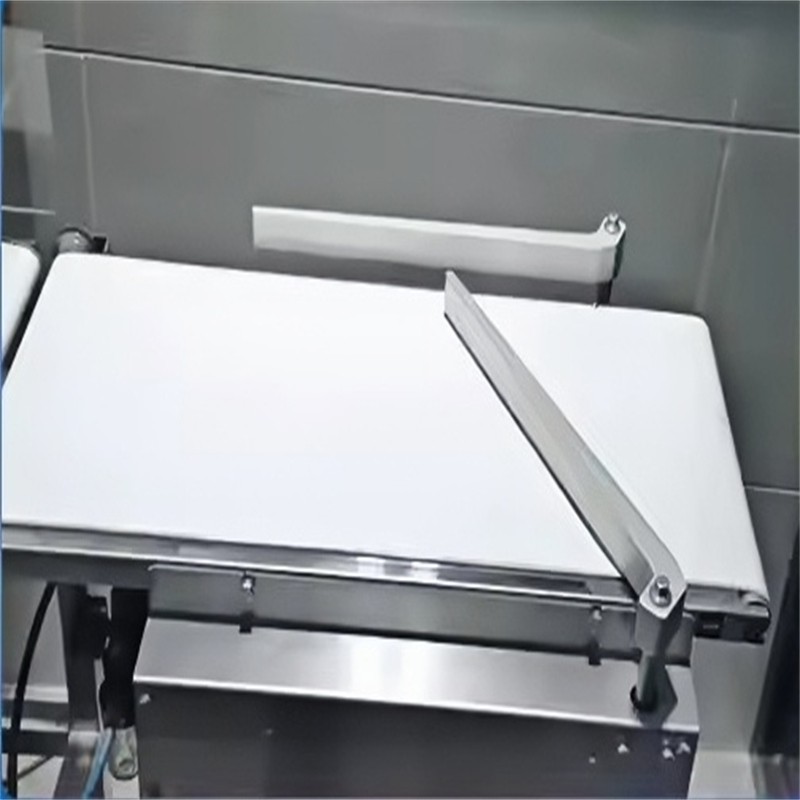

3. Independent automatical rejecting device of weight and metal.
4. Detachable belt design,easy to clean and maintain.
Application
It is widely used for food,chemical,textile,clothes,toys,rubber etc. It is the first choice for HACCP of
food industry and GMP of industry.
