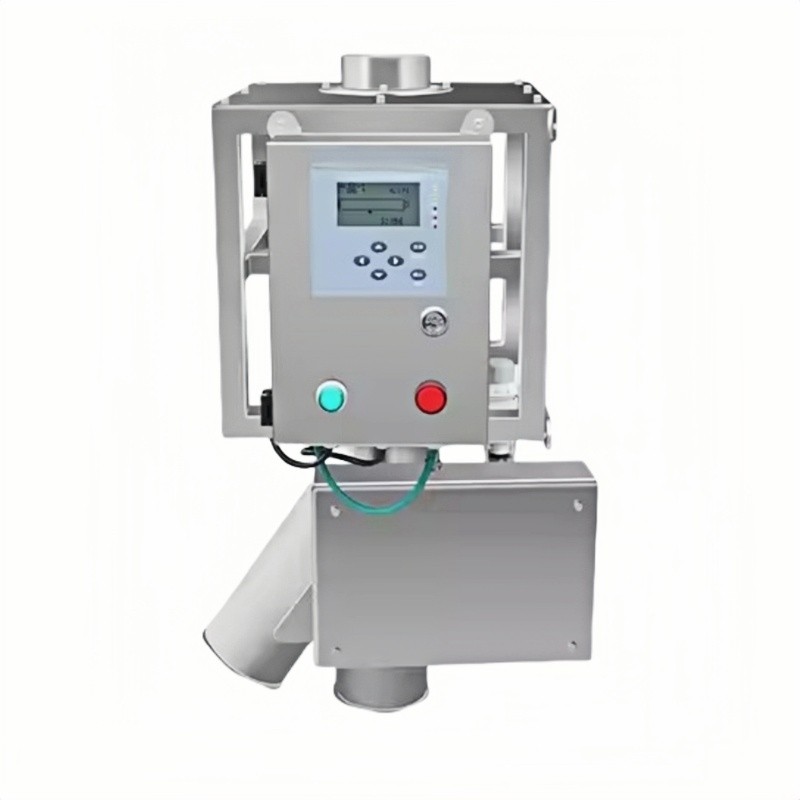

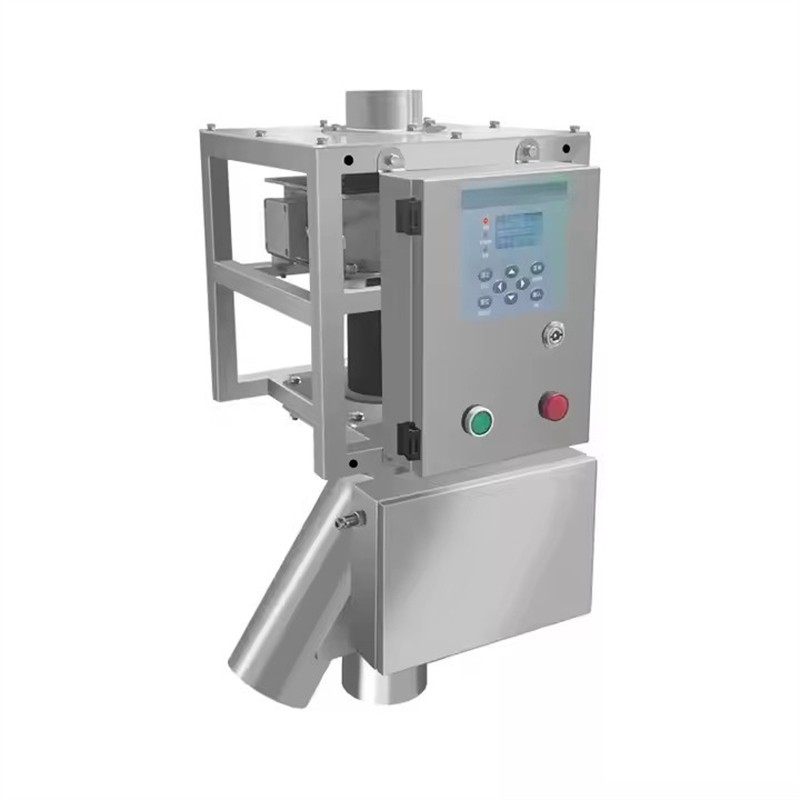

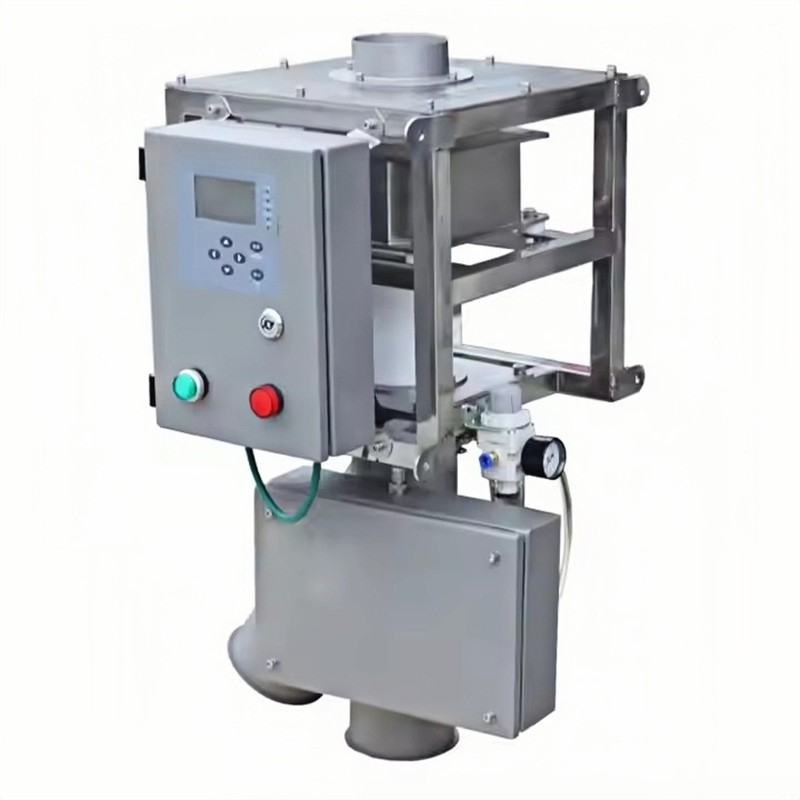

XLY-B1-30 Metal Detector Gravity Metal Detector for Food Plastic Powder

Product description
A metal separator is a device used to detect and remove unwanted metal contaminants from bulk materials like particle, granule, powder, flake, etc. during manufacturing or processing. It helps ensure the quality and safety of the final product by preventing metal contamination, which can damage machinery or pose risks to consumers.

INQUIRY

Product Details

Product Tags

Product description

A metal separator is a device used to detect and remove unwanted metal contaminants from bulk

materials like particle, granule, powder, flake, etc. during manufacturing or processing. It helps ensure

the quality and safety of the final product by preventing metal contamination, which can damage

machinery or pose risks to consumers.

Product parameters

Model	Inner Diameter (mm)	Sensitivity		Air Compression	Max Throughput (L/h)	Material Temperature	Defectives Eliminated Time
Model	Inner Diameter (mm)	Fe	SUS	Air Compression	Max Throughput (L/h)	Material Temperature	Defectives Eliminated Time
XLY-B1-30	20	0.2 mm	0.5 mm	3~5 Bar	300	< 80ºC	0~59s
XLY-B1-50	40	0.3 mm	0.5 mm	3~5 Bar	2000	< 80ºC	0~59s
XLY-B1-70	60	0.6 mm	1.0 mm	3~5 Bar	5000	< 80ºC	0~59s
XLY-B1-100	80	0.8 mm	1.2 mm	3~5 Bar	12000	< 80ºC	0~59s
XLY-B1-120	100	1.0 mm	1.5 mm	3~5 Bar	16000	< 80ºC	0~59s
XLY-B1-150	130	1.2 mm	1.8 mm	3~5 Bar	25000	< 80ºC	0~59s
XLY-B1-170	150	1.5 mm	2.5 mm	3~5 Bar	44000	< 80ºC	0~59s

Feature

1.Different sizes and sensitivities are available.
2.LCD screen is convenient for viewing information and adjusting parameters.
3.The whole machine is made of SUS 304.
4.Different machine connection method can be customized, we have flange connection, clamp connection

and soft connection.
5.It has a memory function that can store 100 kinds of product detection parameters. Once the setting is

stored, it can be recalled next time without the need to adjust again.
6.The sensitivity can be adjusted according to the characteristics of the product, and the number of detection

and elimination can be recorded in real time.
7.Multi language function selection (Chinese, English, Korean, Japanese, etc., other languages can be

customized according to demand).

8.The special rejection device makes it suitable for powder material.
