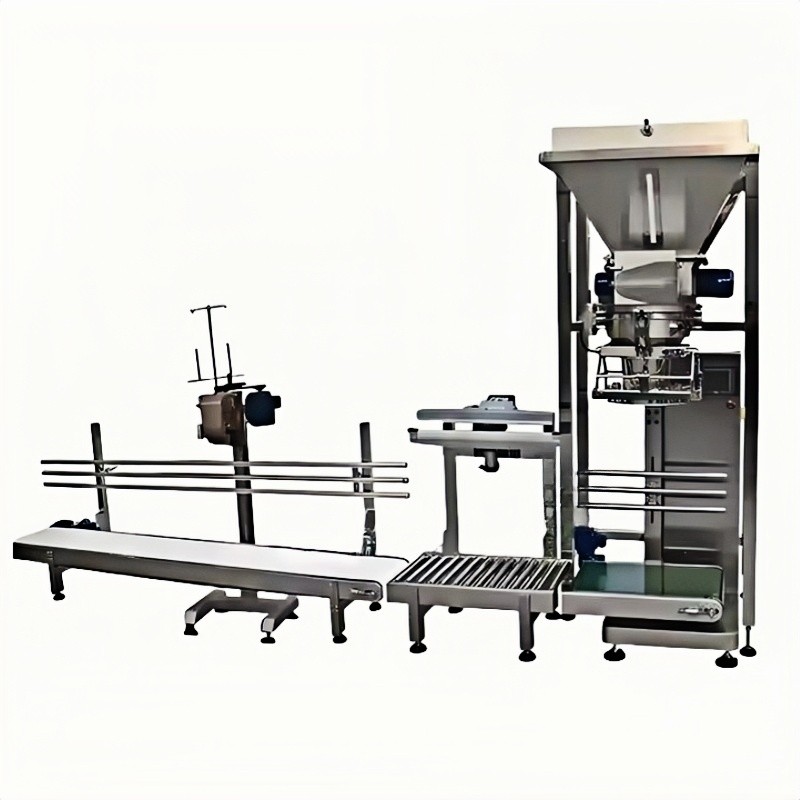

XLY-812 Semi Automatic Powder Ton Big Bag Filling Packing Machine
Description
This machine mainly packages powder materials in large bags, with weights ranging from 15kg to
75kg. Manual bagging, automatic weighing and measurement, automatic sealing and stitching.
Product parameters
| model | XLY-812 |
| Measurement method | Weighing feedback tracking rotary filling type |
| Weighing range | 1000g-75kg(Transforming spiral attachments) |
| Filling accuracy | 200g-1000kg ≤±2g ≥±1000kg ≤±0.2% |
| filling velocity | 3-25times/min |
| source | 220V/380V 50-60HZ |
| Whole machine power | 3KW |
| Overall weight | 450KG |
| Whole machine volume | L1150*W1000*H2550 |
| hopper capacity | 110L |
Feature
1. A weight sensor is installed under the volumetric tray to quickly and slowly recharge according to
the predicted weight, ensuring high accuracy during packaging.
2. Servo motor with tray lifting, the lifting speed can be set arbitrarily, and there is basically no dust
emission to pollute the environment during filling.
3. A specially designed negative pressure dust removal and fly ash recycling system ensures maximum
utilization of raw materials.
4. It can be matched with sealing machines, sewing machines, and conveyors to form a complete semi
automatic large bag packaging assembly line.
