Description

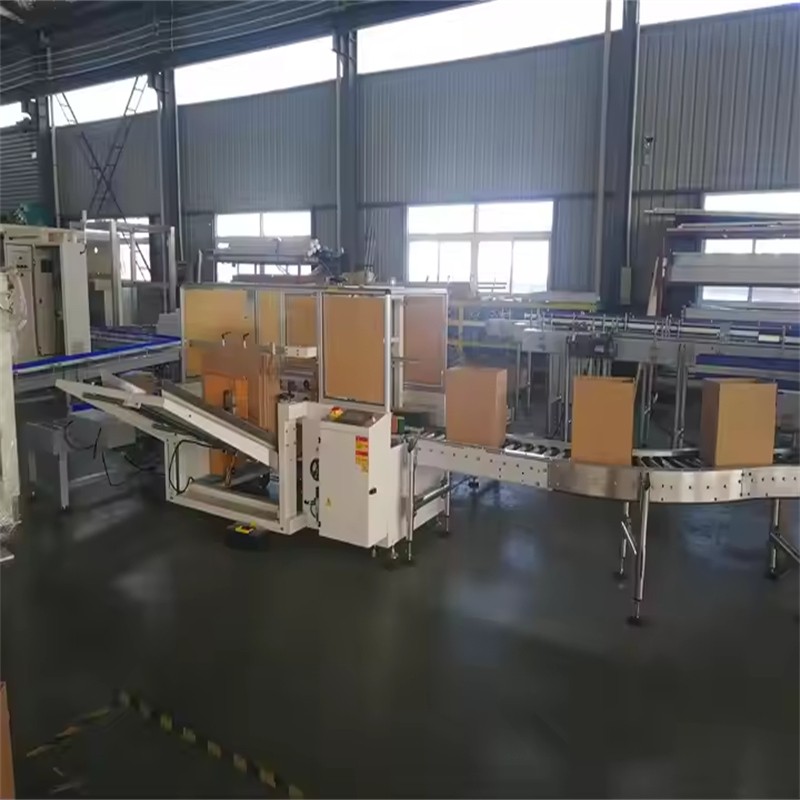

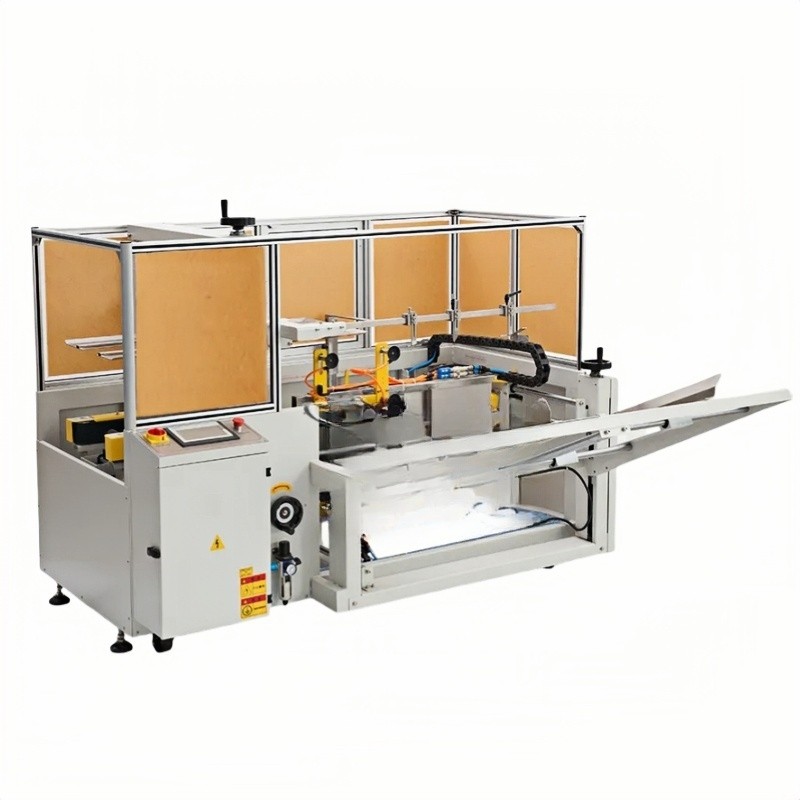

Carton Case Box Form Packing Machine.Case erector can finish the work of carton opening, shaping,

folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.

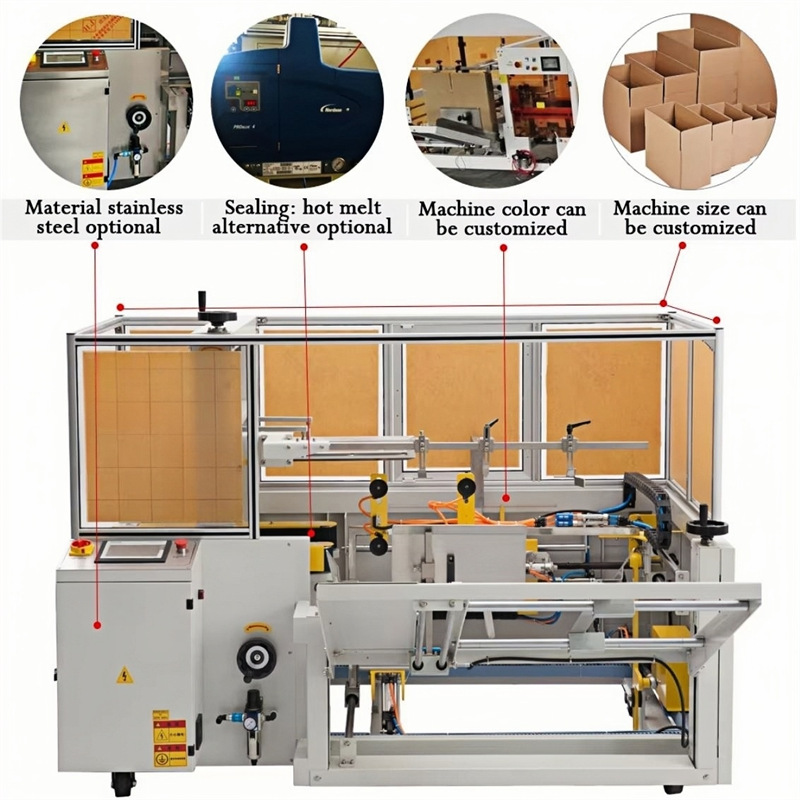

This machine provides extremely secure sealing effect,without tape slipping problems.Hot melt glue

system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling

machine,printing machine ,strapping machine and conveyor system accordingly.

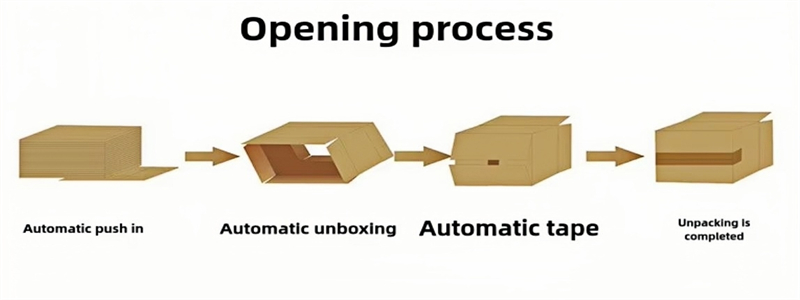

Complete carton suction boxes, molding, bottom folding, bottom sealing and other packaging processes

at one time.

Machine parameters

Machine Characteristics

1. Adopt intelligent HMI to control and display the machine running action status and with alarm function

in real time.
2. Carton Erecting speed is adjustable (controlled by frequency converter).
3. Equipped with the safety protection function of accidental door opening. When the machine under

running state , the machine stops and gives an alarm, and the indicator light flashes if accidental open

the door.
4. Equipped with warning function when the carton cardboard storage slot less cardboard,and also with

warning function when less sealing tape.
5. Could replenish carton cardboard at any time, no need to stop machine for save manpower and raise

efficiency.

6. This machine could continuously finish suction carton cardboard,forming cardboard,folding carton

bottom and sealing carton bottom smoothly.
