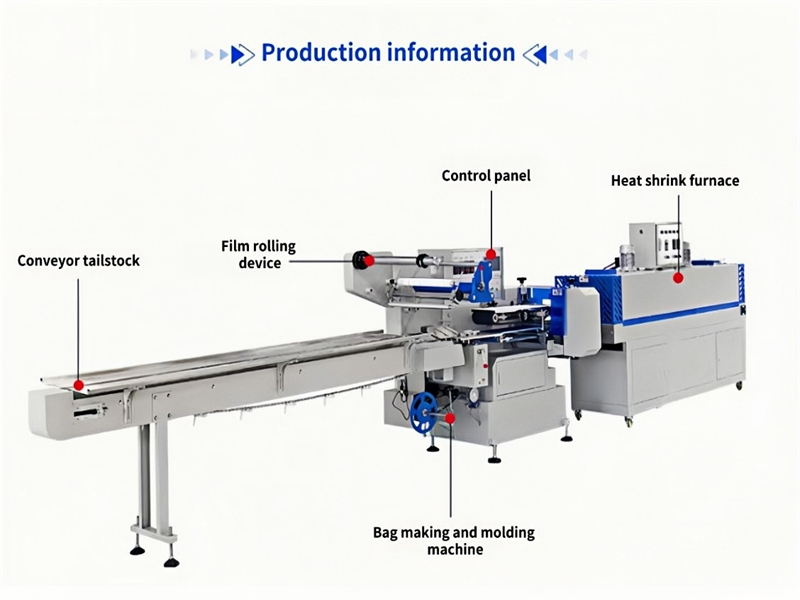

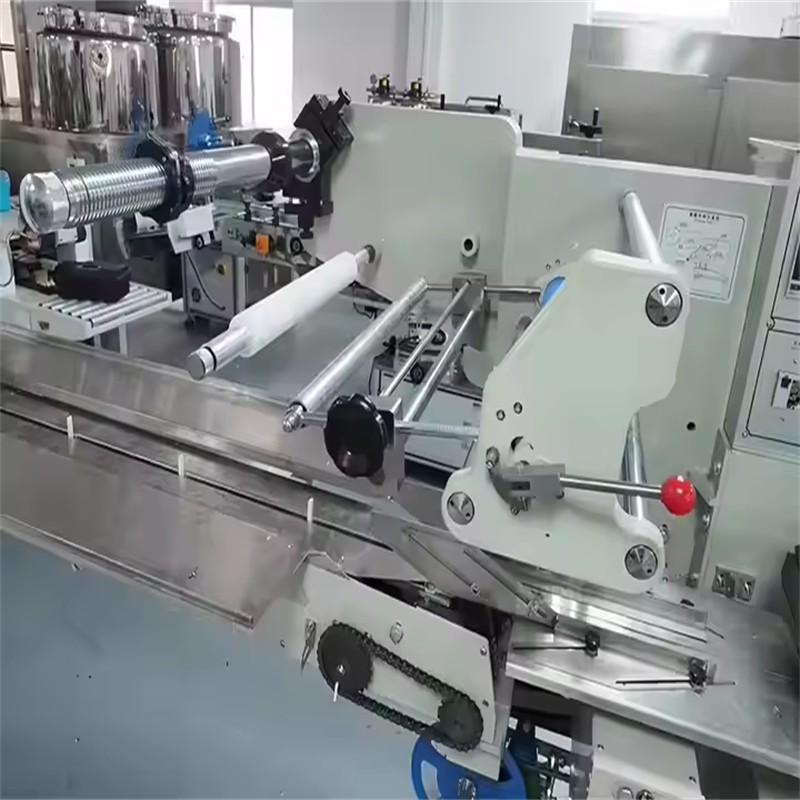

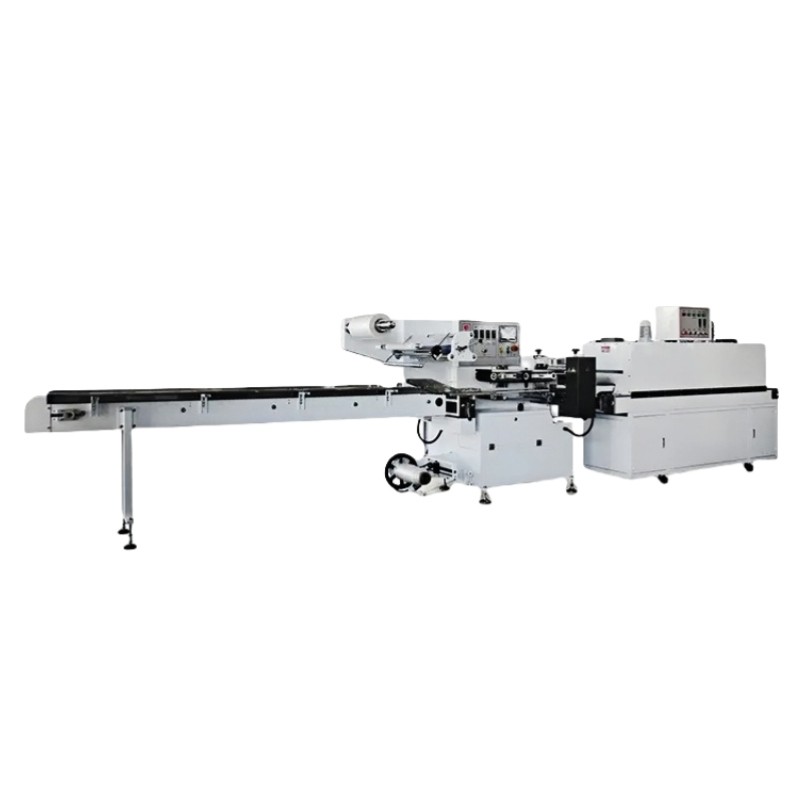

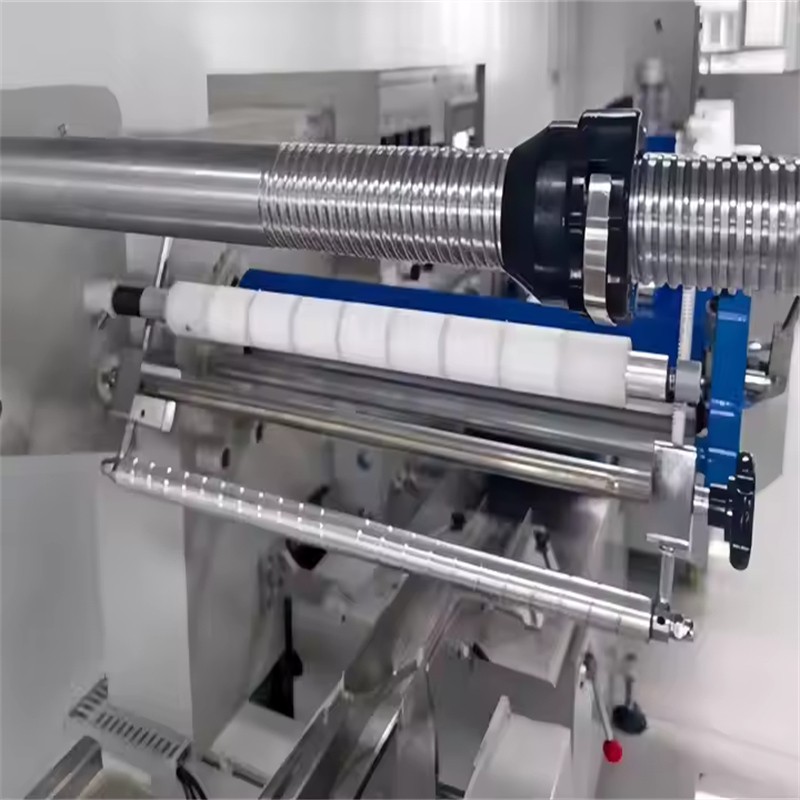

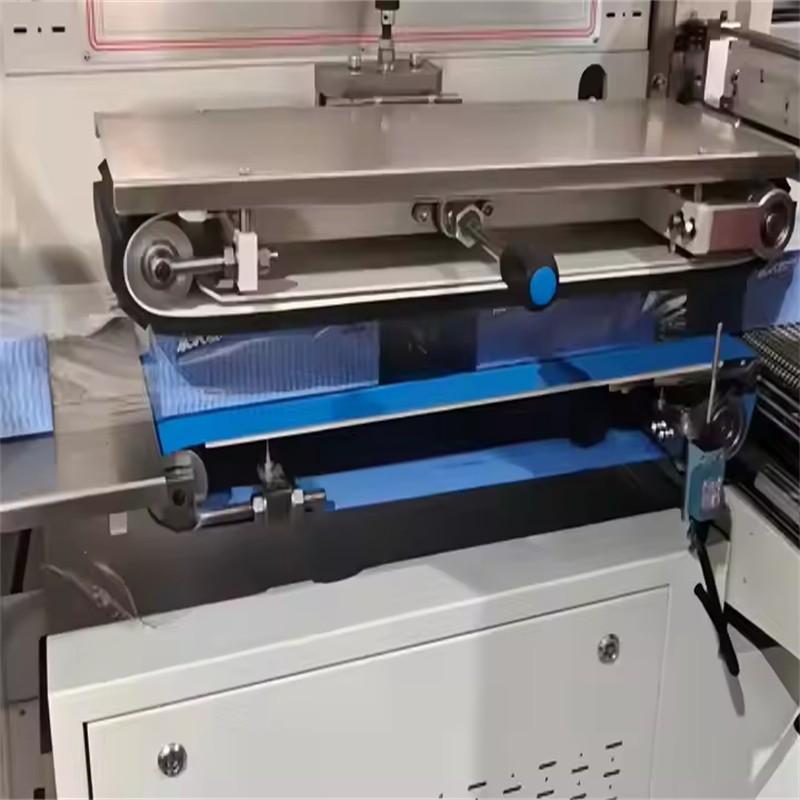

XLY-590 Paper Rolls Shrink Packing Machine Shrink Wrapping Machine
Feature
1.Driven by three servo motors.
2. Dual temperature zones inside shrink chamber.
3. The cutting length, speed and temperature can be adjusted individually.
4. Easy to operate, less maintenance.
5. Cutting safety device prevents wrong cutting.
6. High-sensitivity photoelectric tracking makes sealing and cutting more accurate.
7. Simple transmission system, more reliable and convenient.
Machine parameters
| MODEL | XLY-590 |
| Sealing Type | High Speed Flow Sealing |
| Installed Power | Sealer:220V/50-60Hz/1Phase, Tunnel: 380V/50-60Hz/3Phase |
| Packing Capacity | 150 Packs per Minute (Depends on Product Size) |
| Sealing Height | 125MM |
| Packing Width | 240MM |
| Packing Size | Width+Height≤450MM |
| Film Type | Single Layer POF Film |
| Max Film Roll Size | 590MM (Width) X 280MM (Outer Diameter) |
| Working Height | 780-850MM |
| Sealing Machine Dimensions | 4930X1130X1500 MM |
Application
Instant noodle cup or bowel, milk cup, carton, wallpaper rolls, cosmetic bottle, filter, etc.
INQUIRY
-
XLY-658 Semi-Automatic Plastic Film Wrapping Machine for Carton Packing
-
XLY-346 High Quality Pipette Tip Auto Cartoning Machine
-
XLY-834 Continuous Inkjet Printer for Expiration Date
-
XLY-920 Powder Vertical Form Fill Seal Packing Machine
-

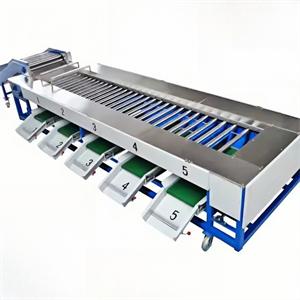

XLY-Z-1500 Tomato Apple Mango Sorting Grading Machine
-
