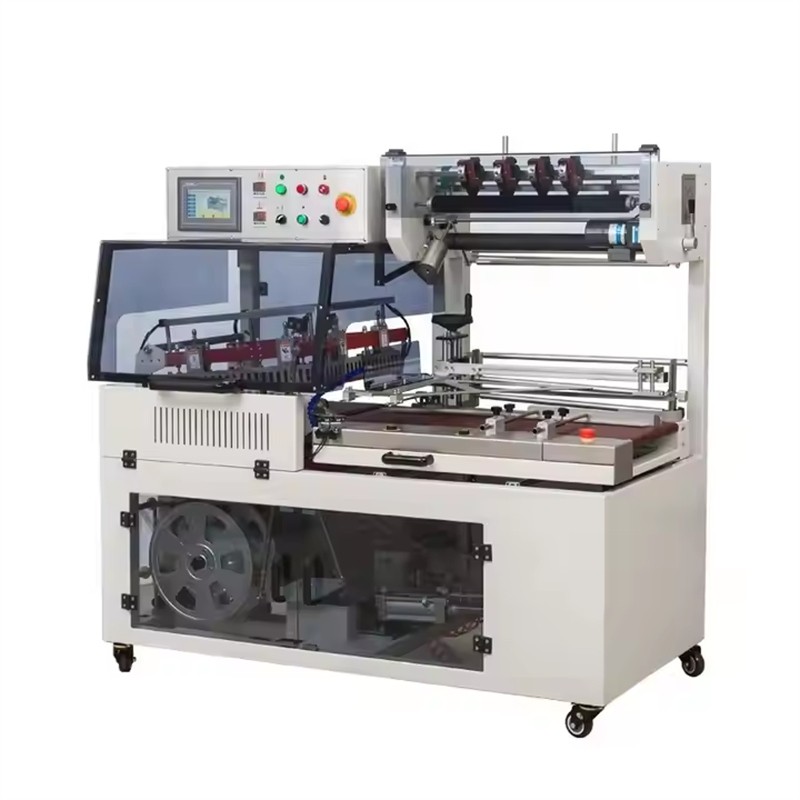

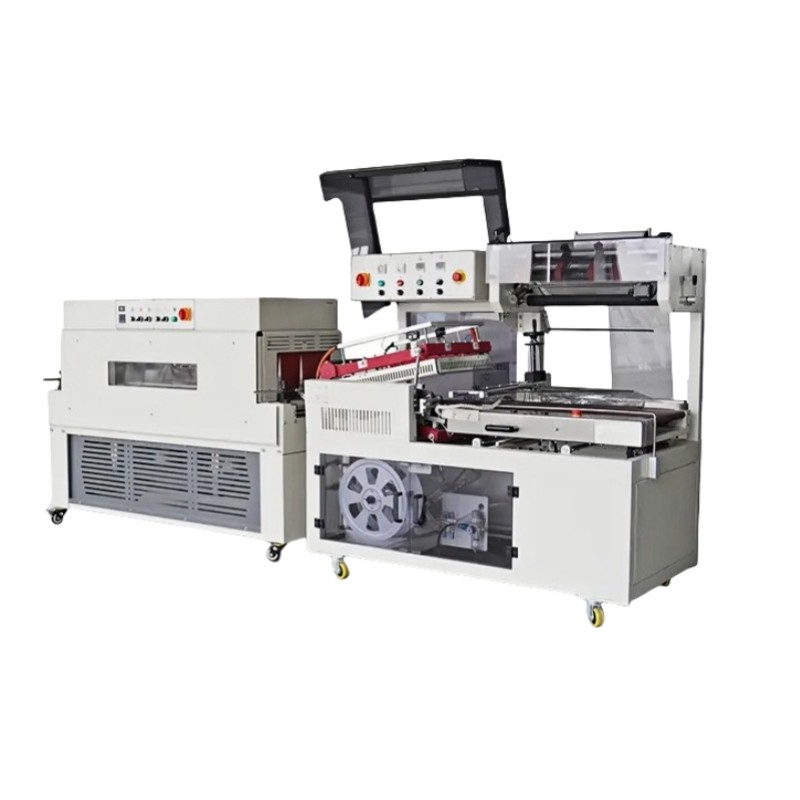

XLY-256 Shrink Wrap Machine Shrink Tunnel Shrink Film Packaging Machine

Application:
This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging.
It is suit for POF and PVC packaging material.

INQUIRY

Product Details

Product Tags

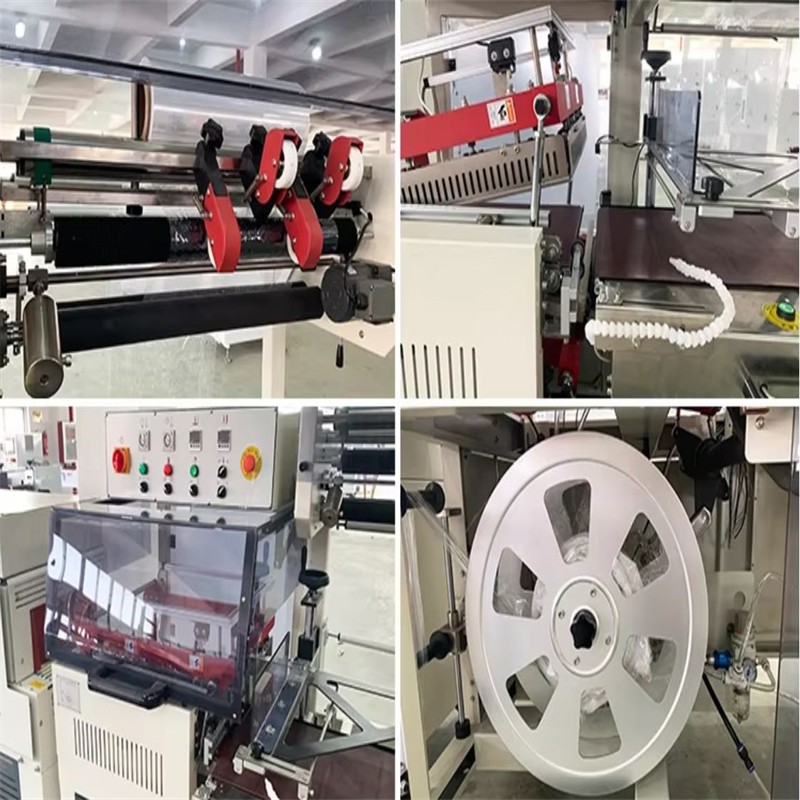

Feature

1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better

performance of heat conduction.

2. Only adjust packing width and height by hand wheels without changing any molds and parts when

packing size changes. packing length can be detected by the sensor automatically.

3. Different products with different sizes can be packed together as promotional package.

4. Adopt omron brand parts such as temperature controller, timer, relay, switch, and sensor.

5. Alarm for scrap film break or full.

6. A pair of photoelectric switch in vertical for thin products.

7. Optional closing conveyor for small products.

8. Optional sensor for transparent products.

Machine parameters

Model	XLY-256
Power Supply	220V/380V; 1Phase/ 3Phase;50-60Hz
Maximum Sealing Height	130mm
Maximum Packing Width	350mm
Packing Range Limit	W + H＜400mm; L + H＜480mm
Packing Speed	15-25 packs per minute (Depends on product dimensions)
Film Type	Center folded POF film
Maximum Film Roll Size	Width 530mm * Outer diameter 280mm
Power Consumption	3.5kw
Control System	Special durable alloyed sealing knife with anti-stick Teflon coats
