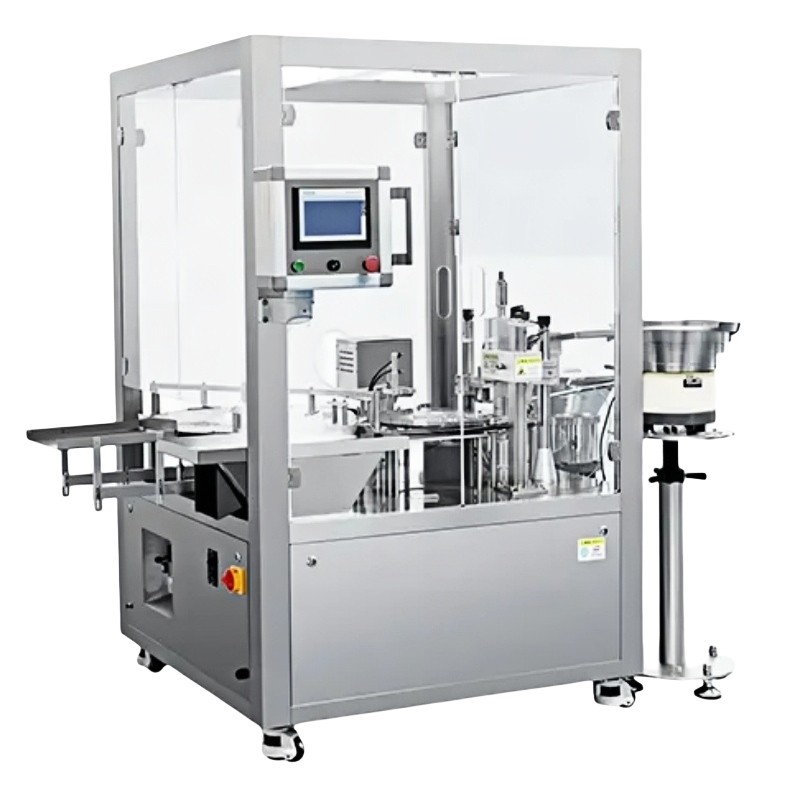

XLY-011 Liquid Powder Filling Stoppering Capping Machine

Machine description
This automated system efficiently fills and seals pharmaceutical vials (e.g., vaccines, injectables) with high precision (0.05–0.1 mL accuracy) at 40–50 vials/min. Designed for GMP compliance, it features a servo-driven mechanism for micro-dosing, compatibility with varied vial heights/materials, and a four-piece capping system to prevent aluminum debris and over-crimping.

Product Details

Product Tags

Feature

1. Original anti-drip filling head (mainly for cosmetic essences and essential oils will drip).

2. The original vibration plate lift price (single operation, adjust within five minutes, no need to move

and adjust the foot cup).

3. The height of the bottle can be adjusted, and the fit type.

4. Automatic alarm or shutdown without internal plug.

5. The original type enters in the same direction, and exits in the same direction, and the material is

not stuck in the bottle, which is stable.

6. According to the characteristics of glass bottles (there will be deviations in the diameter of bottles

of the same specification), positioning the stopper device.

7. Mechanical explosion-proof bottle device can effectively prevent the phenomenon of sealing and

bursting caused by non-standard bottle caps.

8. The three-grip capping method is effectively compatible with the long-used packaging material

specifications in the cosmetic market (the special electric cutter type cap is not available, too short).


Machine parameters

Model

XLY-011

Power supply

220V/50HZ(can be customized 110V/60HZ)

Power

1.5KW

Working speed

30-45 bottles/Min

Filling range

1-30ml

Filling accuracy

±0.01-0.05g

Filling system

Magnetic pump( Peristaltic pump, ceramic pump, piston pump are optional)

The number of nozzle

1pcs(can be custmized)

Machine material

SUS#304 stainless steel

Capping force

4-8kg/cm

Air pressure

0.5Mpa

Machine size

1500*1200*2000mm

Machine weight

300KG

Application
