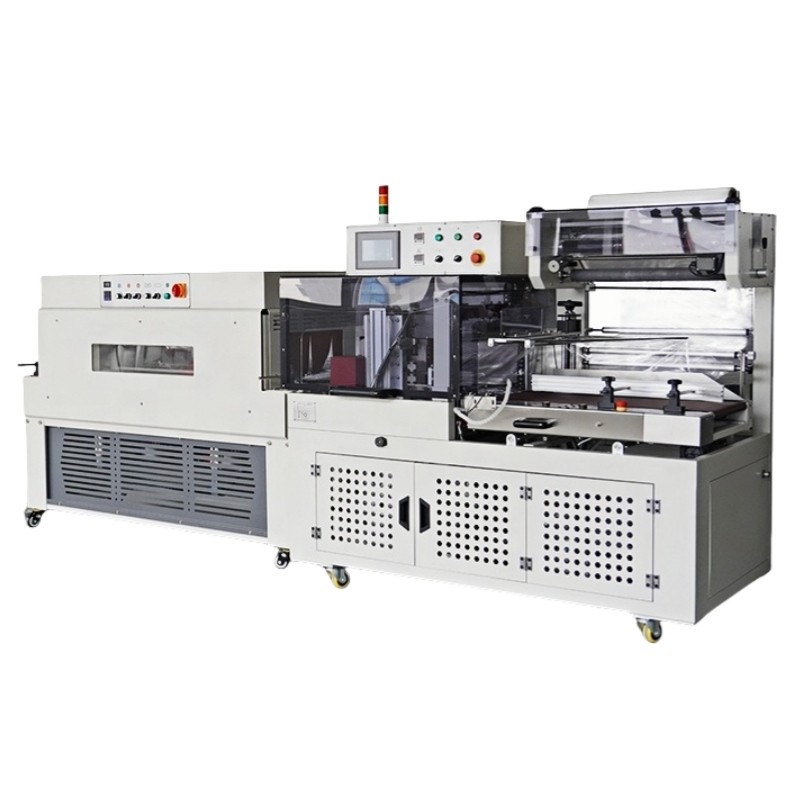

XLY-400 Automatic shrink packing machine for paper roll

Application
The automatic side sealer shrink packing machine including automatic side sealing machine and shrink tunnel. This machine is suitable for shrink wrapping the products like all kinds of boxes, longer products such as flooring boards, paper rolls, etc.

INQUIRY

Product Details

Product Tags

Feature

1. This machine can pack long products. there is no limit of product length because of side sealing system.

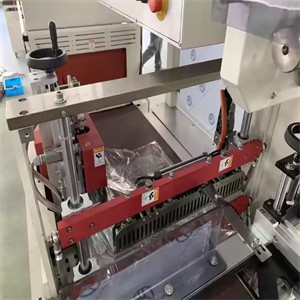

2. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better

performance of heat conduction.

3. Side sealing line can be adjusted in the center of product or other desired position.

4. Film perforating wheels can be adjusted or removed easily.

5. Only adjust packing width and height by hand wheels without changing any molds and parts when packing

size changes. packing length can be detected by the sensor automatically.

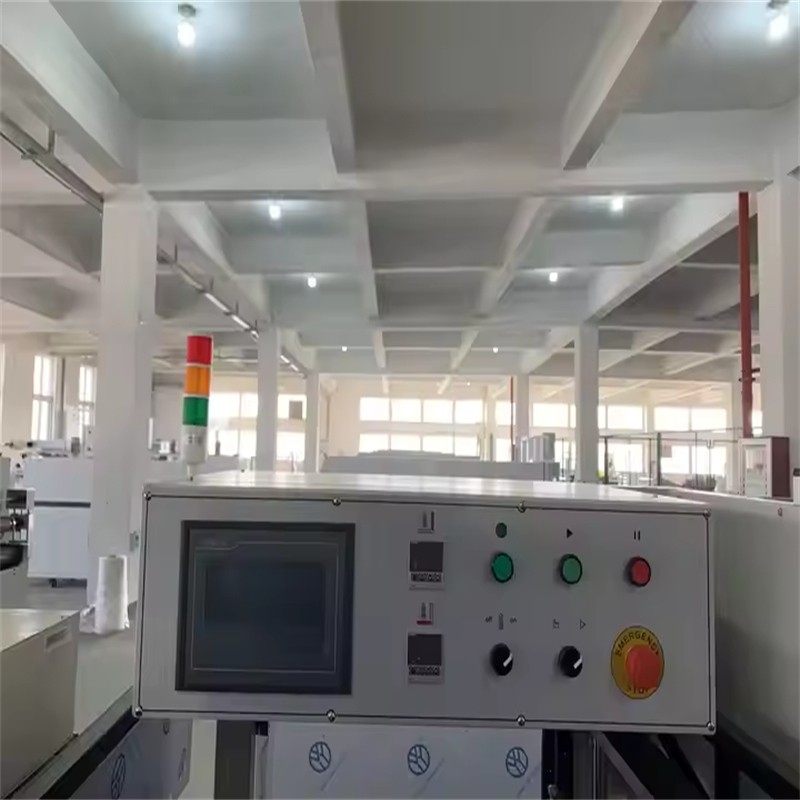

6. Operate easily and conveniently by moveable control panel.

7. Adopt siemens plc and colorful touch screen, omron temperature controller, timer, relay, switch, and sensor.

8. A pair of photoelectric switch in vertical for thin products.

9. Optional sensor for transparent products.

Machine parameters

Model	XLY-400
Sealing Type	High Speed Continuous Sealing
Installed Power	380V/50-60HZ/3Phase
Packing Capacity	Max. 70 Packs per Minute (Depends on Product Size)
Sealing Height	170MM
Packing Width	350MM
Conveyor Speed	Variable,30M/Min
Film Thickness	12-30 Micron (Minimum-Maximum)
Packing Size	Width + Height < 450MM
Film Type	Center Folded POF/ PE Film
Max Film Roll Size	530MM (Width) X 280MM (Outer Diameter)
Power Consumption	3KW
Working Height	780-850MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
