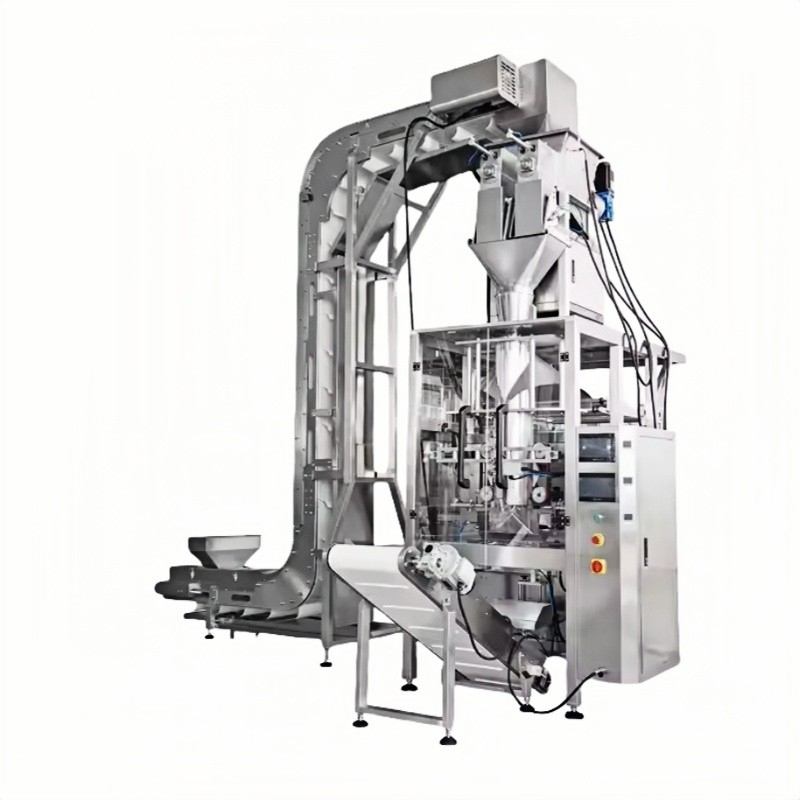

XLY-470 Granular Vertical Form Fill Seal Machine

Application
This packing machine is suitable for packing granule,such as beans,peanuts,sugar,salt, coffee bean and etc.

Product Details

Product Tags

Machine Feature

* Computerized touch screen, easy to adjust and operation, and easy to change products, with the

exception appearance system,easily and rapidly to repair;

* Could automatically to finish making bags, sealing, printing, and optional functions

* Design with alarming for clipping material, door unclosed, rolled film in wrong position, no print

tape, no rolled film, etc;

* The advanced design ensures that it is very convenient for adjustment, operation, and maintenance

when different profession use it;

* It can support the use of various automatic metering equipment at home and abroad.



Machine parameters

Type XLY-470
Bag Length 100-450mm
Bag Width 100-350mm
Film Width 730mm(Max.)
Packing Speed 10-20packet/min
Gas Consumption 0.62m³/min
Air Pressure 0.8Mpa
Power 220V AC 50HZ/60HZ, 7.3Kw
Packing Film OPP/CPP, OPP/PE, PET/PE etc
Dimension  4178(L)x2812(W)x4419(H)mm
Net Weight 780Kg

Application

This packing machine is suitable for packing granule,such as beans,peanuts,sugar,salt, coffee bean

and etc.
