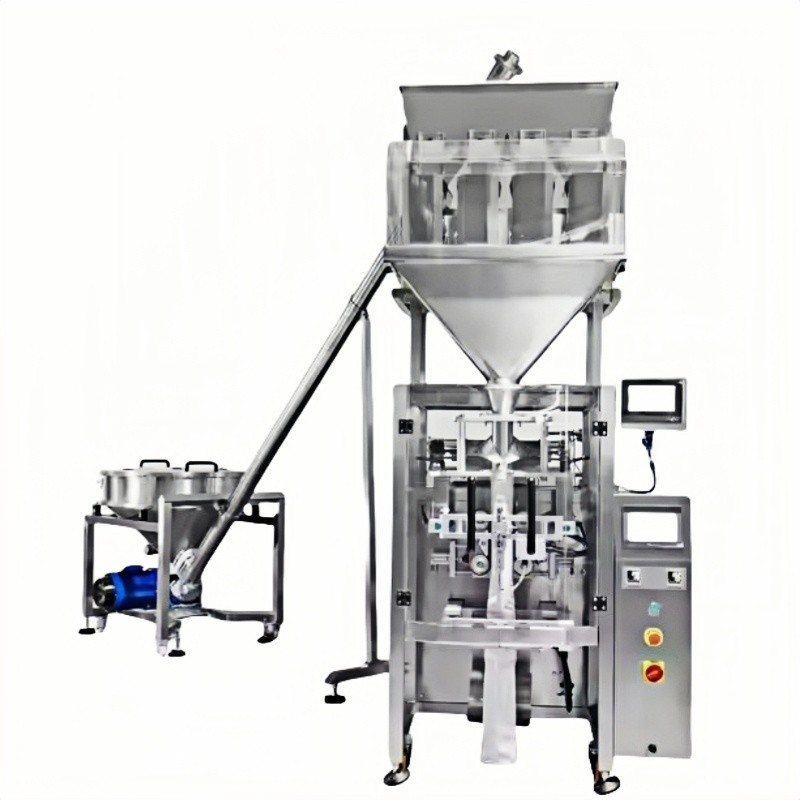

XLY-472 Granular Vertical Form Fill Seal Machine

Application
The machine is suitable for packing loose, non-adhesive, small granular materials in food, chemical and other industries, such as peanuts, popcorn, cornmeal, dried fruit, seed, small hardware, sugar, etc.

Product Details

Product Tags

Feature

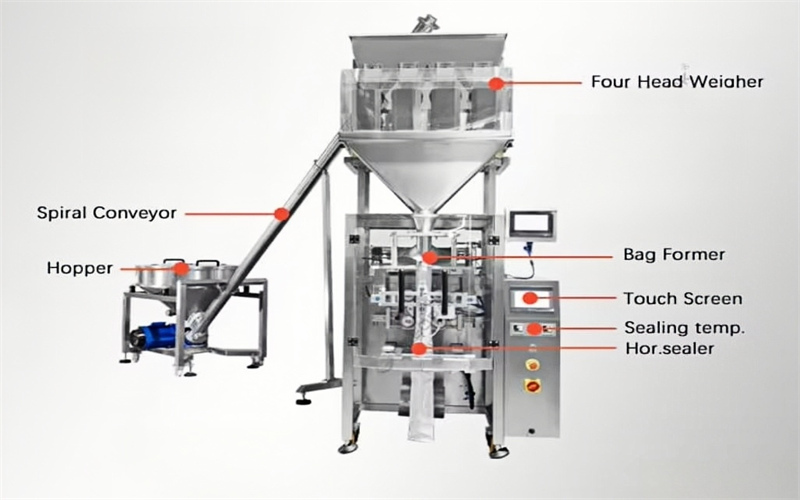

1. Machine consists of: one unit Linear scale & one unit bag machine;

2. Robust structure, can be 24 hours stable running;

3. Suitable for dry pellets such as table salt, sugar, rice, Himalayan salt and some snacks food such

as puffy rice, corn snack, banana chips;

4. Flexible to set weight by user, no need change parts;

5. 4 heads scale weighing, faster than single head scale;

6. Multi functional, eye mark sensor, emergency button, roll supply motor all are standard function.


Machine parameters

Model XLY-472
Bag Length 80-300 mm
Bag Width 80-200 mm
Film Width 420 mm (Max.)
Production Capacity 25-35 packet/min
Air Pressure 0.65Mpa
Power 220V AC 50 HZ/60HZ, 4.5KW
Packaging Film Complex Film
Dimension 1160(L)*1150(W)*1480(H) mm
Net Weight 580 KG


Application

The machine is suitable for packing loose, non-adhesive, small granular materials in food, chemical

and other industries, such as peanuts, popcorn, cornmeal, dried fruit, seed, small hardware, sugar,

etc.
