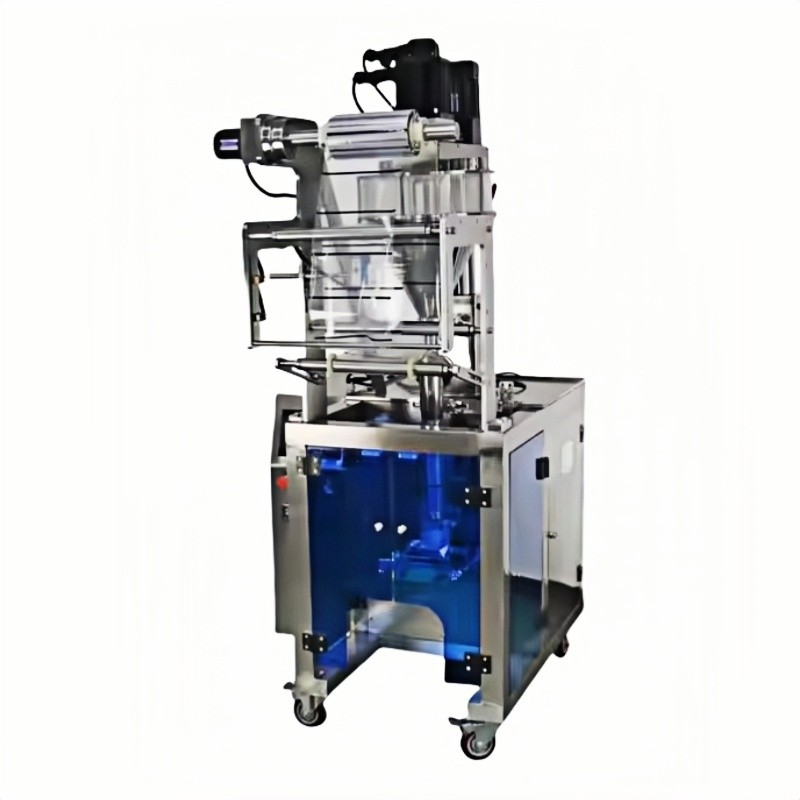

XLY-920 Powder stick bag and sachet bag Vertical Form Fill Seal Packing Machine

Application
This machine is used for packing many different products: Such as milk powder, flour. starch, washing powder, curry powder, spices, instant coffee, tea cornmeal, drink powder, bean powder, jelly powder, maize powder, cement, peeper, paprika, fertilizer powder, herb powder, chemical powder and so on. Support a variety of bag types, such as back sealed bag, gusseted stand up bag, quad seal bag, etc.

INQUIRY

Product Details

Product Tags

Machine feature

1) All the Electronic components adopt international famous brand excluding motor, the motor use regular

domestic brand.

2) The raw material of the products adopts stainless steel.

2) Mitsubishi PLC control system.

3) English panel.

4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.

5) Can get a perfect pictures when the packing material with color code.

6) This machine is easy to operate and maintain.

7)This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.

Machine parameters

Model	XLY -320	XLY-420	XLY-520	XLY-720	XLY-920	XLY-1200
Film width	120-320 mm	420 mm	520 mm	720 mm	920 mm	1200 MM
Bag length	50-200 mm	80-300mm	80-400mm	80-500mm	80-650mm	80-750MM
Bag width	50-150 mm	50-20 mm	70-250 mm	60-350 mm	200-450 mm	200-550 MM
Packing grams	50-150 ML	50-1500ML	50-3000ML	50-5000ML	100-10000ML	100-20000ML
Packing speed	35-70bpm	35-70bpm	35-70bpm	35-70bpm	35-70bpm	35-70 bpm
Power	220V/380V/50/60 HZ
Machine dimension	*9706801960 mm*	*120015001700*	*150016001800*	*160017001800*	*160017001800*	*180017001800*
Machine weight	300 kg	450 kg	500kg	600 kg	750 kg	1200 kg
