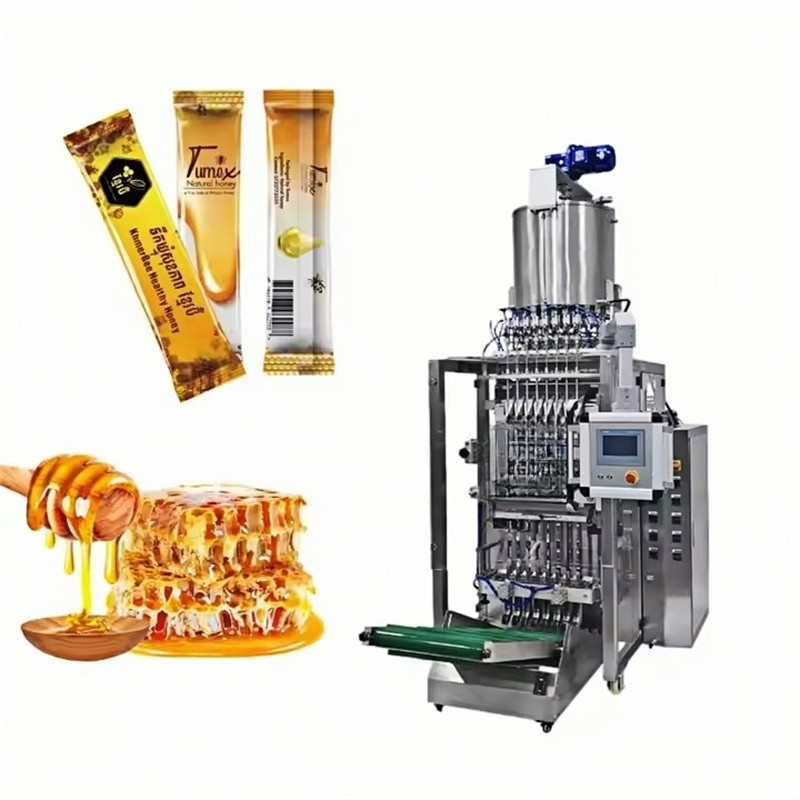

XLY-720X Liquid Irregular Shaped Sachet Bag Machine

Application
Fully automatic multi-line packaging machine is suitable for food, daily necessities, agriculture and other industries, such as ketchup, jam, chili sauce, honey, soy sauce, tartar sauce, syrup, concentrated juice, jelly, shower gel, hand sanitizer, etc.

INQUIRY

Product Details

Product Tags

Features

(1).Famous brand PLC control system,large touch screen,convenient to operate;
(2).Film drawing down system by famous bland servo motor control;
(3).Auger doser is controlled by brand servo motor, which volume is adjustable in screen;
(4).Advanced design,high precision and fast speed;
(5).Various alarm system to reduce waste;
(6).Photoelectric tracking system for precise bag length and position of film;
(7).Cutting type option: V shape cutting, straight cutting, round corner cutting, die-cut cutting type.

Machine parameters

Model	XLY-480X	XLY-720X	XLY-960X
Lanes quant.(depends on max.film width)	4-6 lanes	4-8 lanes	4-12 lanes
Lanes quant.(depends on max.film width)	4-6 lanes	4-8 lanes	4-12 lanes
Capacity	20-40 Bags/Min/Lane
Film width( max.)	480mm	720mm	960mm
Bag size	L:45--120mm,W:35--60mm	L:45--120mm,W:35--90mm	L:45--120mm,W:35-120mm
Air & Powder	0.8mpa,0.8m3/min,2.8kw	0.8mpa,0.8m3/min,4.1kw	0.8mpa,0.8m3/min,5.5kw
Dimension & weight	95014701750mm,350kg	115316541750mm,450kg	141516861750mm,600kg
Cutting Type	1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting, 4.Customized Special Shape Cutting
Optional device	Date Coder, Air-filling Device, Tear Notch Device
Control System	PLC + Servo + Touch Screen
