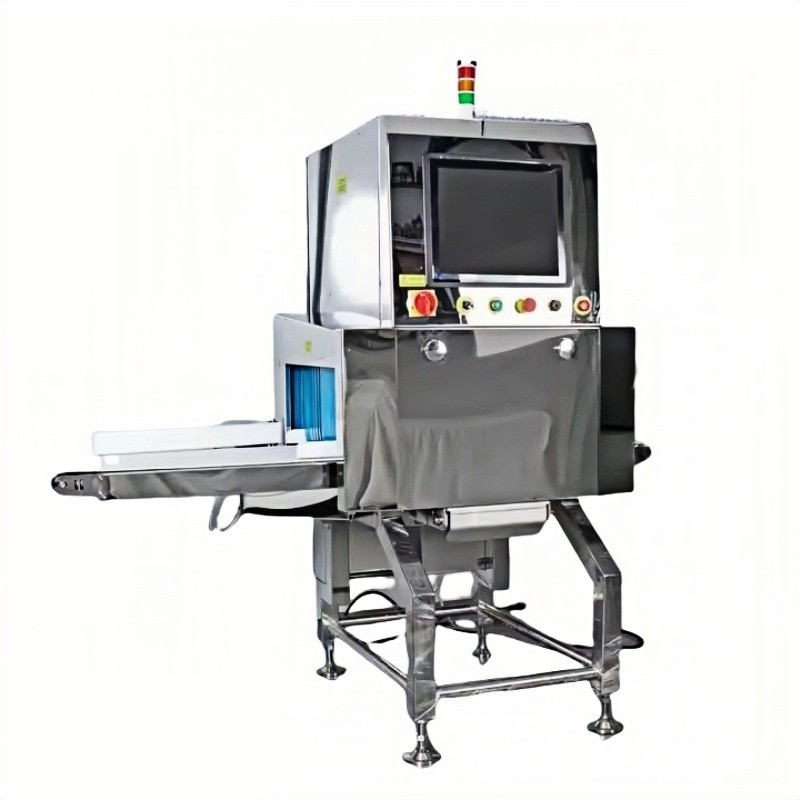

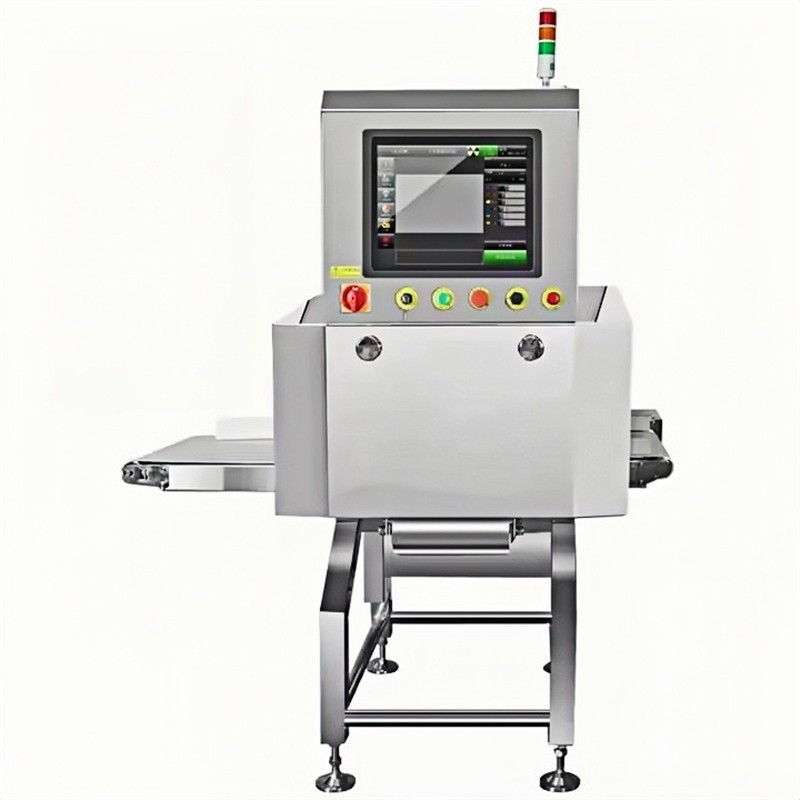

XLY-808 Automatic X-Ray Inspection Machine Safety Metal Detector

Application

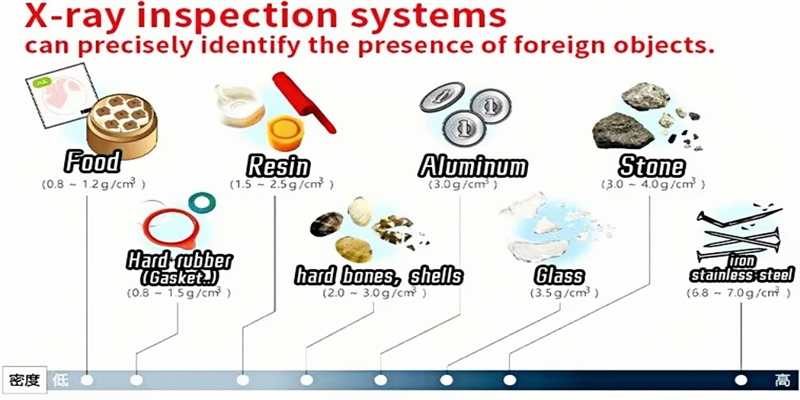

Metal detectors for food can be used for virtually any consumable product,including bakery items, meat and sausage, fruits and vegetables, dairy products, and even spices and sugar. They can find stainless steel, ferrous metals (cast iron, mild steel, etc.) and non-ferrous metals (copper, lead, aluminum, etc.).

INQUIRY

Product Details

Product Tags

Machine parameters

Model		XLY-808
X-ray source		VJX IXS100 150W/210W 80kV
Detect maximum width(mm)		250 (can customize)
Detect maximum height (mm)		400 (can customize)
Best empty machine detection accuracy	FE(Φmm)	≥0.4
	Glass ball(Φmm)	≥1.0
	Ceramic ball(Φmm)	≥1.0
Overall equipment size		1650x530x1895 mm
detector		DT X-Scan C 0.4 mm
conveyor belt		10-60m/min speed adjustable
Display		17-inch full-color touch screen
Maximum load-bearing capacity of conveyor		5Kg
working environment		Temperature: 0‒40°C Humidity: Relatively moderate 30~90%, no condensation
X-ray leak		< 1 microsievert/hour
Exclude organizations (optional)		Swing bar/Push plate removal/Flip plate/Blow
Protection method		Removable protective curtain/shield
power supply		AC 220V
Protection level		IP65
Body material		SUS304
