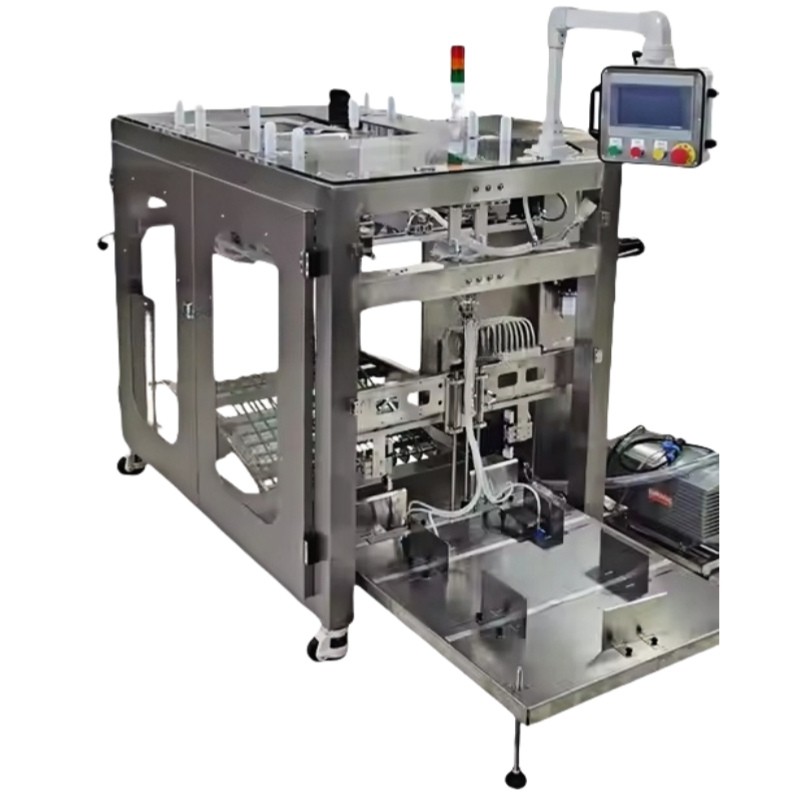

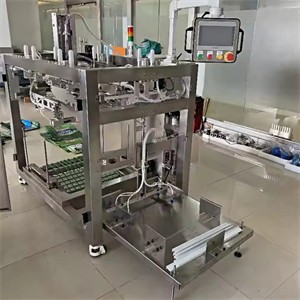

XLY-200 Granule Doypack Packing Machine

Operation process

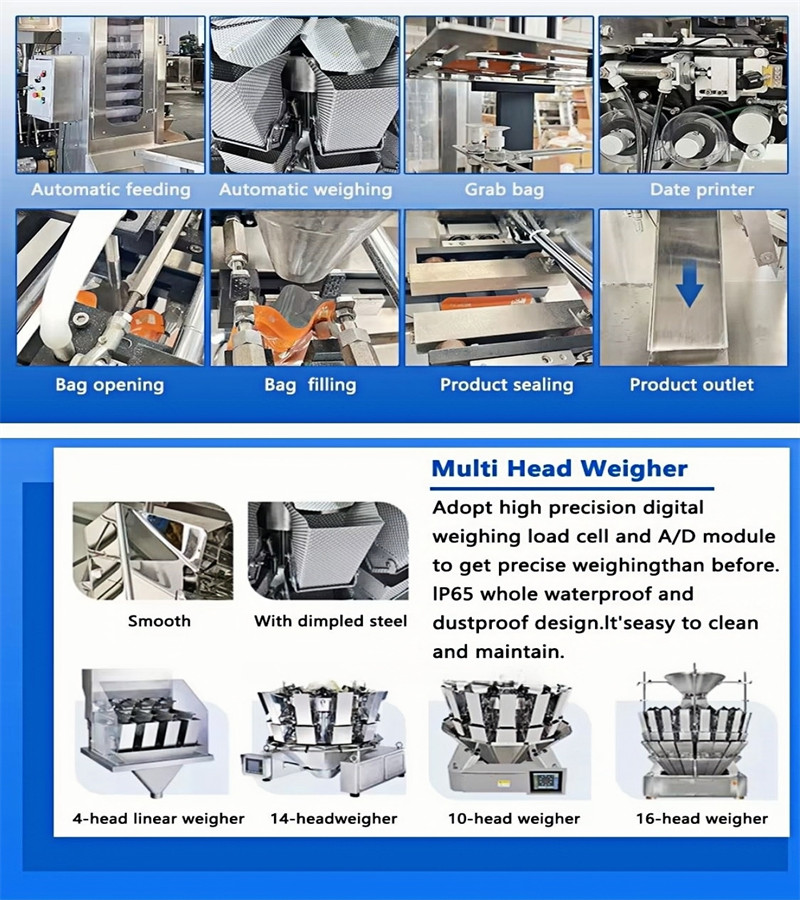

Working processing from 25kg Raw material supplying, auto weighing filling , auto bag feeding, auto open mouth bagging, auto bag moving,auto bag sealing , finsinsied products output.

INQUIRY

Product Details

Product Tags

Machine features

1. Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button;

2.Single shaft ad the CAM design, packing speed faster, more stable operation.maintenance easier and

reducedefective rate;

3. Modular heating, more accurate temperature control, heating fault can alarm;

4. Advanced design concept, reduce the loss of packaging material, ensure the stability of the operation

of equipment,prolong the operation of equipment life;

5.simple and convenient operation, using advanced PLC+POD (touch screen)electrical control system,

man-machine interface friendly;

6.The machine has a wide range of packaging, packaging liquid, paste, powder particles, solid materials

just according to different materials to choose different metering device can be;

7.This machine USE s the prefabricated packing bag, the packing pattern is perfect,the sealing quality

is good, thus enhances the product quality and the class.

Machine parameters

Bag length	100--560mm(L) ( we can customized )
Bag width	240--450mm(W) we can customized for more lagee
Packing film	Laminated film
Packing speed	10—15bag/min
Air consumption	0.65Mpa
Gas consumption	0.7 m³/min
Power voltage	220VAC/50/60HZ
Power	6KW
Dimension	(L1600(W)1000(H)100mm

Work process
Safety Measures	1.no bag feeding, no filling and no sealing.
	2.no bag opening/open error, no filling and no sealing
	3.no filling, no sealing
Product	1.High speed servo control weighing machine
	2.Auto bag feeding and packing machine with electric control box
	3.Automatic Stitching /sewing/heating/paper taping sealing machine
	4.Plat form(painted steel or stainless steel 304)
