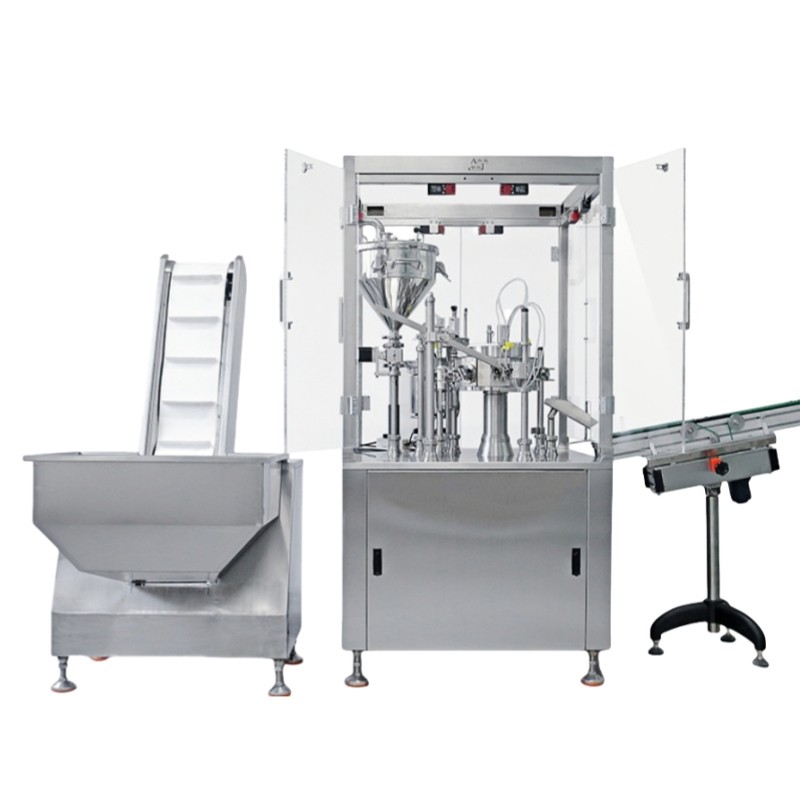

XLY-4030 Automatic Filling Line

Machine description
This product is specially designed by our company for the filling of prefilled plastic syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is simple to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and capping prefilled plastic syringes.

Product Details

Product Tags

Machine description

This product is specially designed by our company for the filling of prefilled plastic syringes. It is an

automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs

 smoothly, is simple to operate, and is equipped with intelligent detection devices. It has high automation,

high work efficiency and easy maintenance. It is an ideal equipment for filling and capping prefilled

plastic syringes.



Advantage

*Organize the syringes tubes automatically.
* Loading syringes automatically.
* Feeding syringes tubes automatically.
* Finishing caps automatically.
* Adding the caps automatically.
* Which can be equipped with a laminar hood.
* The machine can be used stand-alone or in line with the labeling machine.



Machine parameters

Item XLY-4030
Suitable for Water-baste and poultice viscous liquid
Syringe volume 0.5- 80ml
Filling accuracy ≦+1%
Filling nozzles 1 piece
Speed 1800-2400pcs/hour
Total power 2.1kw
Air pressure 0.55-0.75Mpa 10L/S
Dimensions 1100x900x1800mm
Weight of basic machine 450kg

Application
