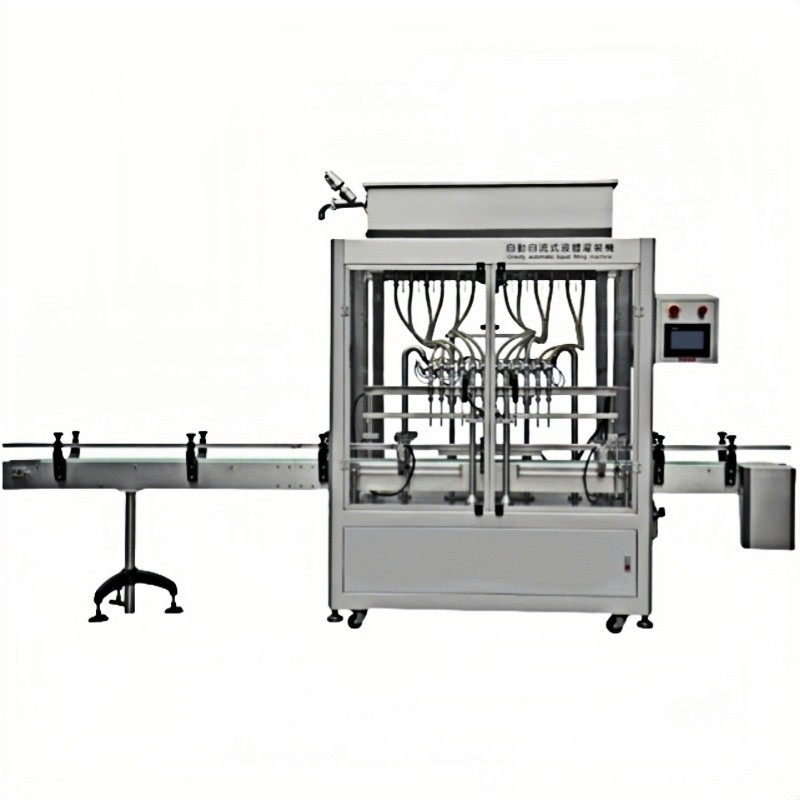

XLY-12 Automatic Liquid Filling Machine

Applications
This machine is designed for handle from water-thin to high viscosity product, especially for viscid and foaming in chemical, food, beverage, pharmaceutical, and biotechnology industry.

INQUIRY

Product Details

Product Tags

Feature

1. Machine construction in stainless steel #304

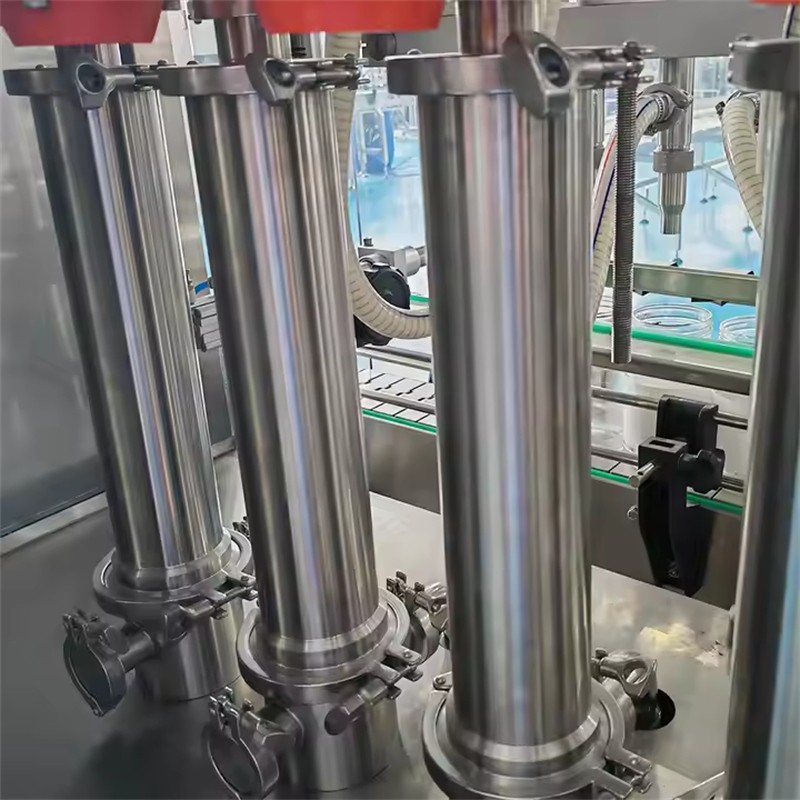

2. Each rotary lobe pump is driven by an individual motor for high accuracy liquid filling.
3. PCL control with touch screen control system, Filling voluem can be easily adjusted separately.
4. No change parts are required for different bottles sizes.
Options parts: 1. Liquid Tank agitator
2. Hot filling
3. Infeed and outfeed turn table
4. All contact parts made of stainless steel #316
5. Safety transparent cover for safe operation circumstanc
E and dust-proof.

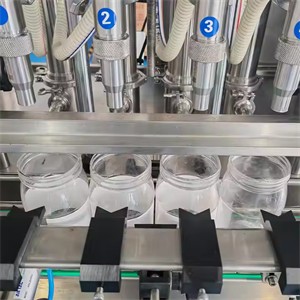

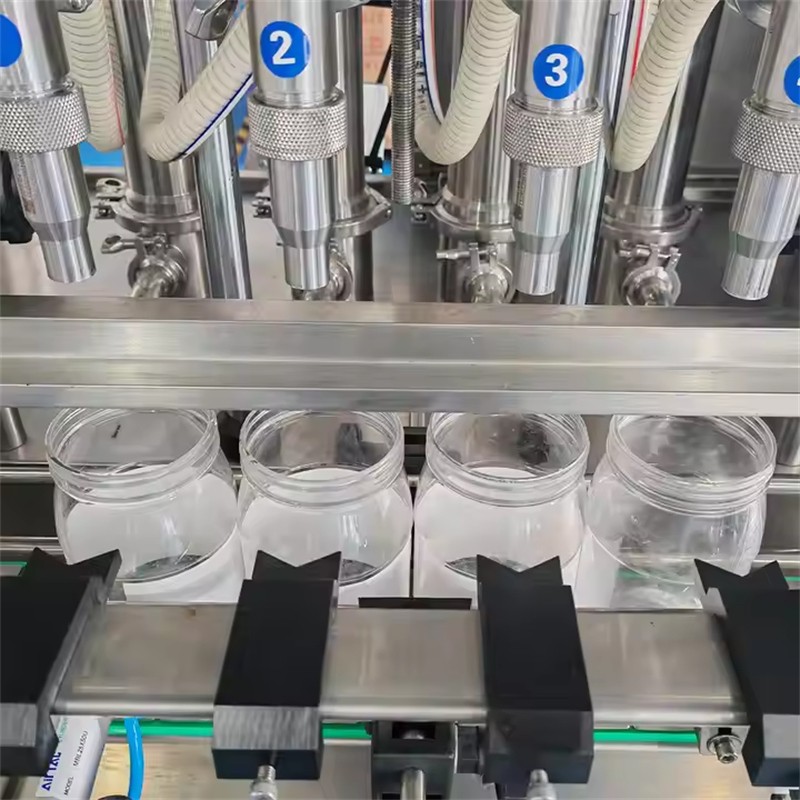

5. Diving type filling system prevents spillage during filling.
6. No bottle, No filling safety device.
7.20 job memory for easy recall

8. You can chose A type, B type or C type for different filling range.

Machine parameters

Item	XLY-12
Filling range	50-2000ml
Filling speed	2000-6000瓶/小时bottles/h
Filling precision	≦±1液体liquid
Power	AC220V/50/60Hz 500W
Pressure range	0.4-0.6Mpa
Host dimension	1900×1050×2300mm（Excluding conveyor length）
