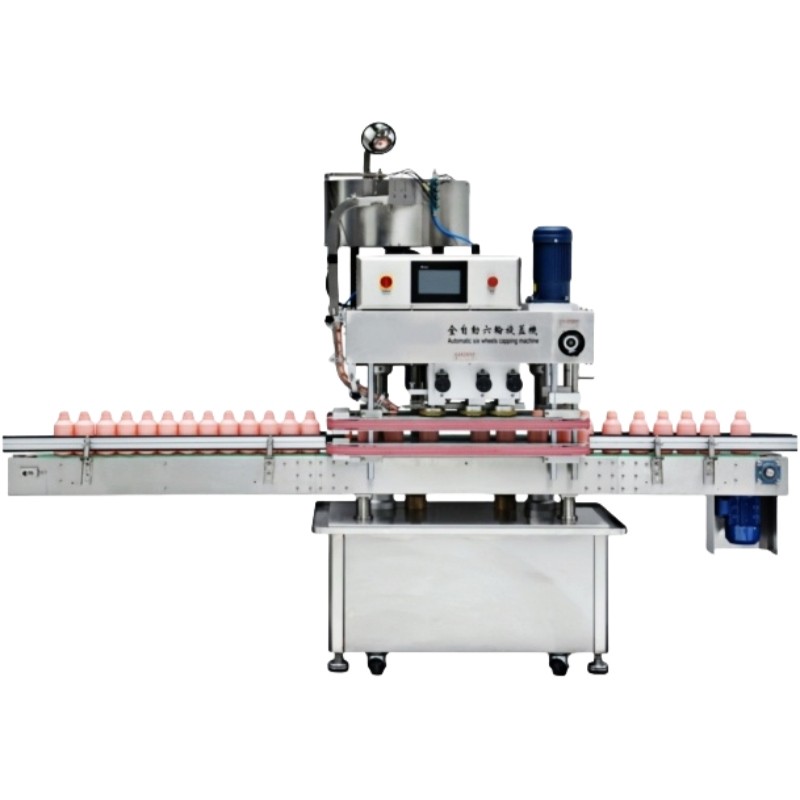

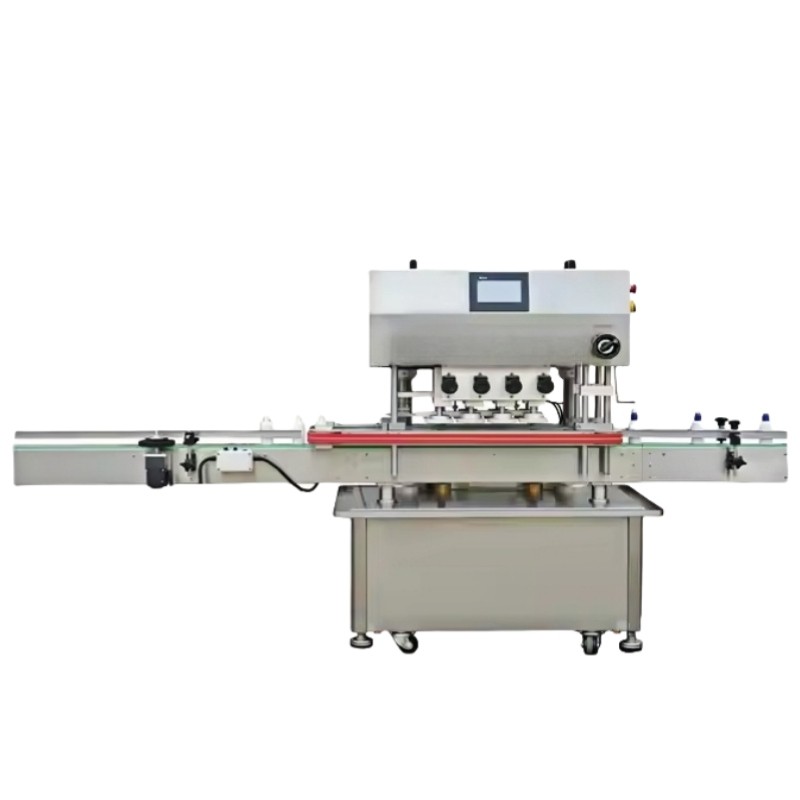

XLY-120-6 Automatic Frequency Conversion Capping Machine

Application
It is used for capping of round, rectangular flat, and oblate bottles for food, medicine, cosmetics, petrochemicals and daily articles.
It can be equipped with the automatic elevator.
It is suitable for customers requiring replacement of different specifications of bottles.

INQUIRY

Product Details

Product Tags

Feature

1.Advanced HIM operation, PLC control, stainless steel surface.

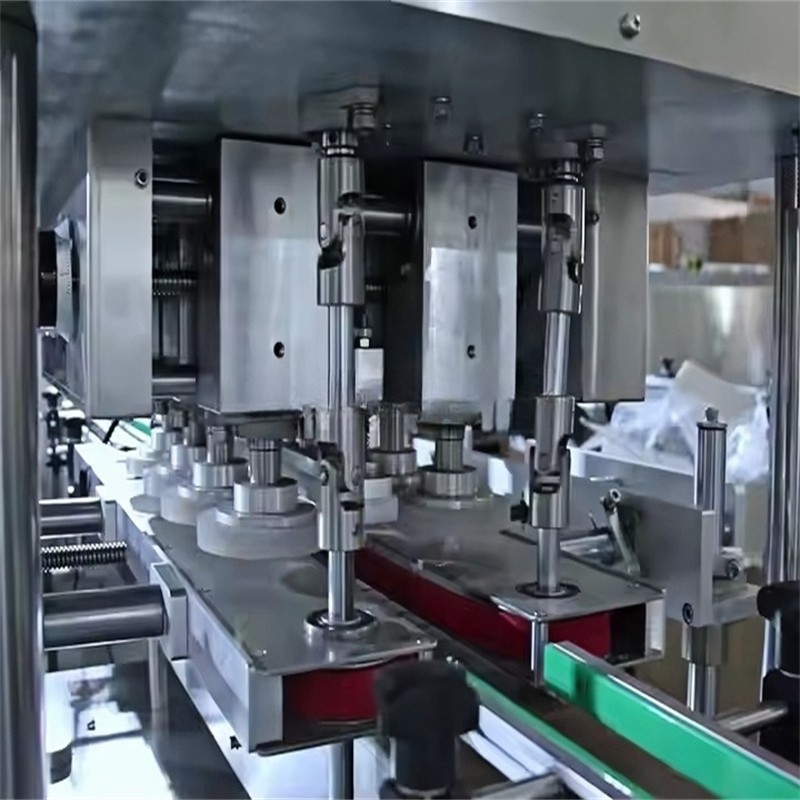

2.Rotating cap unscrambling machine; 6-wheel in operation supports cap screwing, placing, hanging;

capping is stable and reliable.

3.It is possible to cater to varied bottle caps within the scope of this machine without replacement

of parts by simply adjusting the synchronous belt, distance between cap screwing wheels and rack

height.

4.It applies to varied tall and short bottles which are round, square, oblate or flat square in shape.

Machine parameters

Item	XLY-120-6
Cap diameter	φ19-55mm
Bottle diameter	φ23-100mm
Bottle height	45-320mm
Screwing speed	30-80 bottles/min (depending on bottle type)
Power	AC220V 50/60Hz 1000W
Weight	600㎏
Pressure range	0.4-0.6Mpa
Host dimension	2700×830×2190mm
