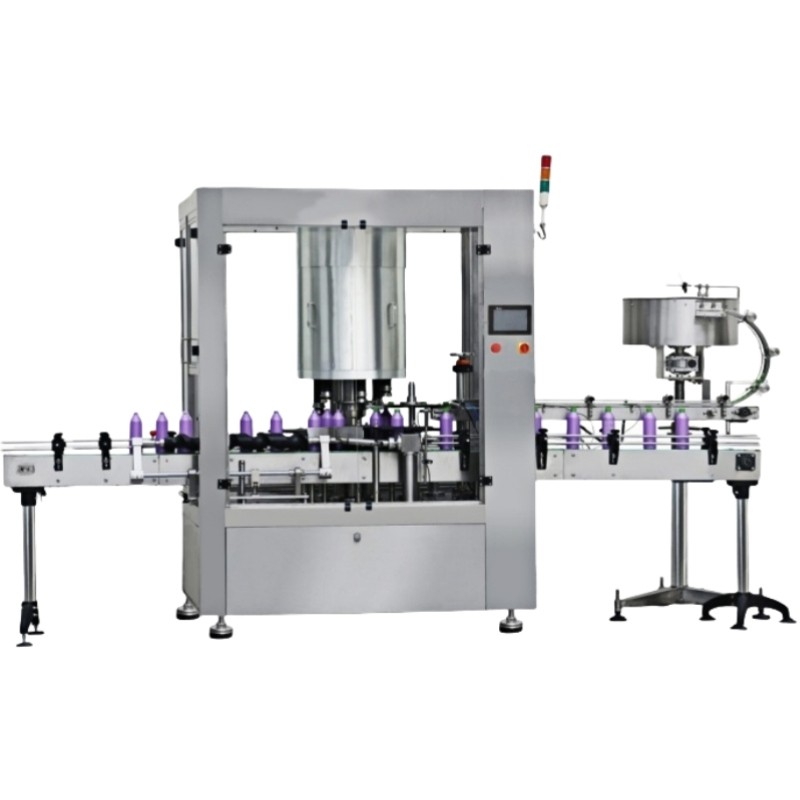

XLY-6 8-head Automatic Rotary Capping Machine

Application
It applies to screwing and sealing of thread caps for food, pharmacy, daily use chemicals, pesticide and chemicals.
It is suitable for screwing caps in poor coordination with the bottle opening.

INQUIRY

Product Details

Product Tags

Feature

1.Advanced HMI operating system, PLC control;

2.The machine is designed with 6 manipulators for automatic bottle feeding, cap unscrambling, clinching

and screwing.

3.Belt-pull rise mode is adopted, which will not damage the bottle body. Pneumatic mode is adopted for

fastening the cap tight; the clutch is set; fastened caps can automatically slide without damage.

4.Cap screwing speed is fast and conforming rate is high.

5.The appearance structure is made of 304 stainless steel.

Machine parameters

Item	XLY-6
Cap diameter	Φ35-55mm
Bottle diameter	Φ45-100mm
Bottle height	80-280mm
Screwing speed	≤6000 barrels/h
Power	AC380V 50/60Hz 3KW
Weight	1000㎏
Pressure range	0.4-0.6Mpa
Host dimension	2000×1300×2400mm
