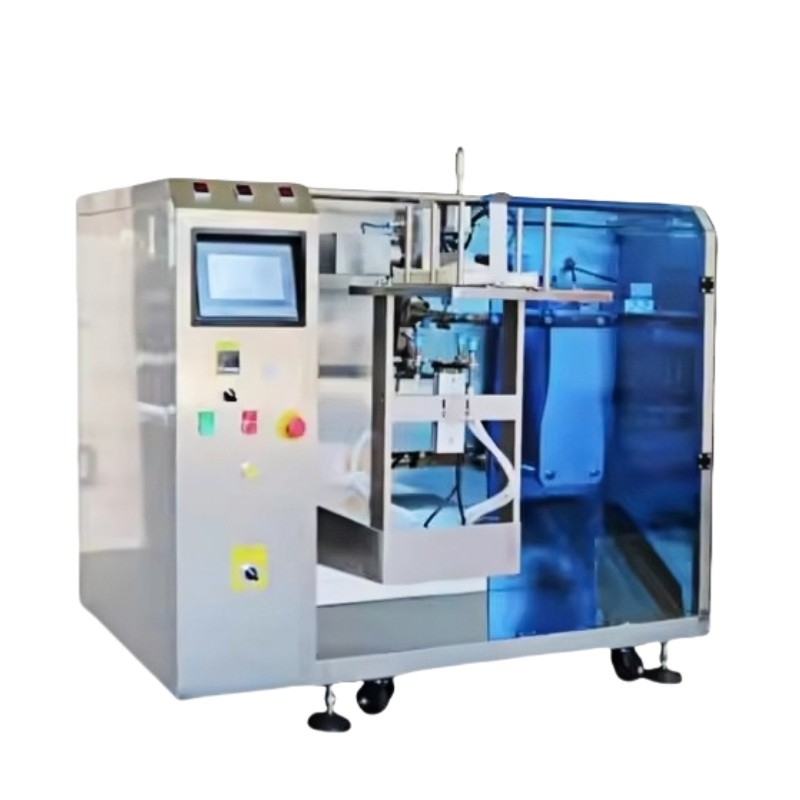

XLY-540 Automatic Liquid Mini Doypack Packing Machine

Applications
Liquid fertilizer, liquid detergent, liquid soap, car wash detergent, edible oil, soy sauce, duck sauce,salad, mayonnaise, tomato paste, tomato ketchup, anchovy essence, cocktail sauce, salsa, barbecue sauce, ranch dressing, hot sauce, cosmetic cream, pet food, soup, milk, yogurt, honey, juice, drinks,peanut butter, chocolate paste, etc.

Product Details

Product Tags



Main Features

1. The main feature of the machine is one-time packing for the thread, tag and outer bag, avoiding

hands directly contacting with stuff materials, improving the efficiency.

2. Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning.

3. The section where the material contact is stainless steel as the body of machine is optional for

complete orpartial stainless steel and all out equipments have passed the CE Standard.

4.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.

5.The machine can automatically finish the load, measuring, bag making,sealing, cutting, counting,

finished product conveyor, and other functions.


Machine parameters

Model Number XLY-540
Packaging Speed(bag/min) 30 bags/min
Bag size(mm) L: 250mm W: 270mm
Dimension L 1700* W 1050* H 1100mm
Total Weight(kg) 500KG
Power 2.5KW
Packing material Filter paper,thread,composite membrane
Filling Range 3-15g

Applications

It is used in fertilizers, spices, masala, chili powder, protein powder, coffee powder, instant beverage

powder, flour, Rice noodles, corn powder, coconut powder, washing powder, pesticide powder, etc.


Tea, fertilizer pellet, snacks, biscuits, cookies, chips, chocolate, candies, nuts, dates, peanuts, seeds,

coffee beans, tea, cereals, grain, dried food, dried fruits, dried vegetables, rice, sugar, pickles, salt,

noodles, pet food, beef jerky, pills, capsules, herbs, bolts & nuts, hardware parts, tissue paper packets,

wet wipe packets, etc.


Liquid fertilizer, liquid detergent, liquid soap, car wash detergent, edible oil, soy sauce, duck sauce,

salad, mayonnaise, tomato paste, tomato ketchup, anchovy essence, cocktail sauce, salsa, barbecue

sauce, ranch dressing, hot sauce, cosmetic cream, pet food, soup, milk, yogurt, honey, juice, drinks,

peanut butter, chocolate paste, etc.
