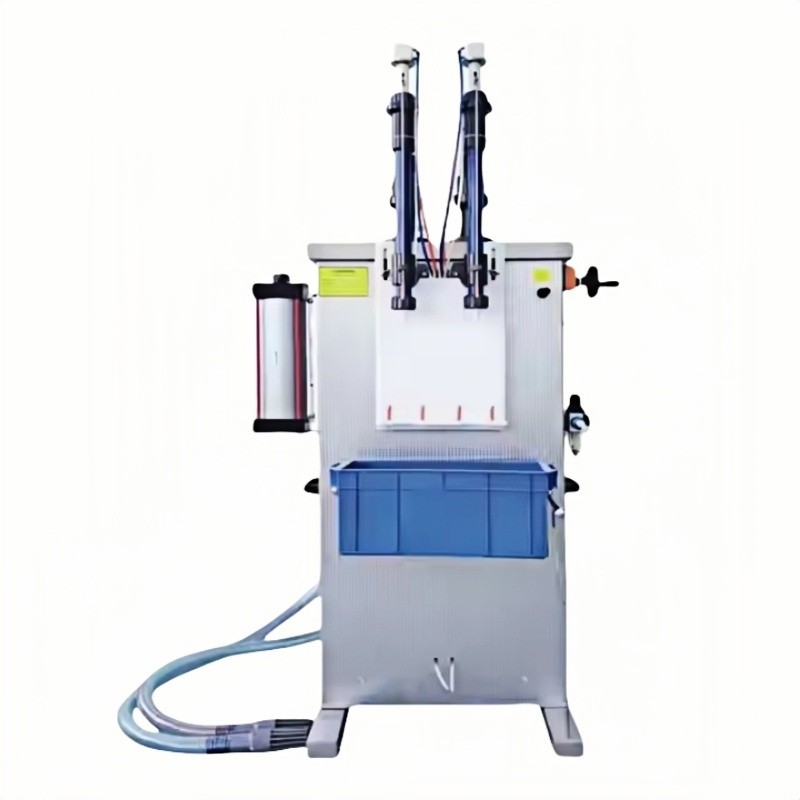

XLY-200 Liquid Filling Machine

Application

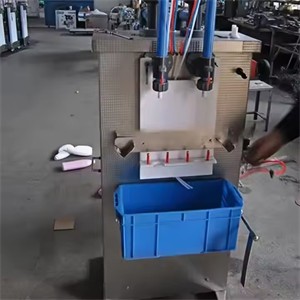

This corrosive liquid filling machine is equipped with two filling nozzles, filling speed can be controlled as needed. It's suitable for filling corrosive liquids like toilet cleaner, bleach, strong acid liquid, etc.

Product Details

Product Tags



Feature

1.Easy to operate and maintain.
2. The equipment is composed of branded electrical components and runs stably.
3. Stainless steel body, strong and beautiful.
4. It has a wide range of applications and can be customized according to customer needs.
5. It can meet international standards and is harmless to humans or the environment.
6. Automate production, reduce labor and increase output.
7. Intelligent adjustment, simple operation, induction filling, precise measurement.
8. Cylinder positioning, automatic bottle feeding, no filling without bottle, automatic stop and start.
9. Microcomputer control, more stable filling, higher precision, small repeat error.
10.All stainless steel body, laser cutting, smooth surface without hurting hands.
11.Independent motor control for each head, digital display speed regulation, adjustable flow rate.


Machine parameters

Type

XLY-200

Voltage

220/110V 50/60HZ

Air Pressure

0.5-0.7MPa

Filling Speed

10- 20B/Min

Filling Volume

200- 1000ml (can be adjustment )

Filling Accuracy

±1-5ml

Air Consumption

0.035 m³/Min

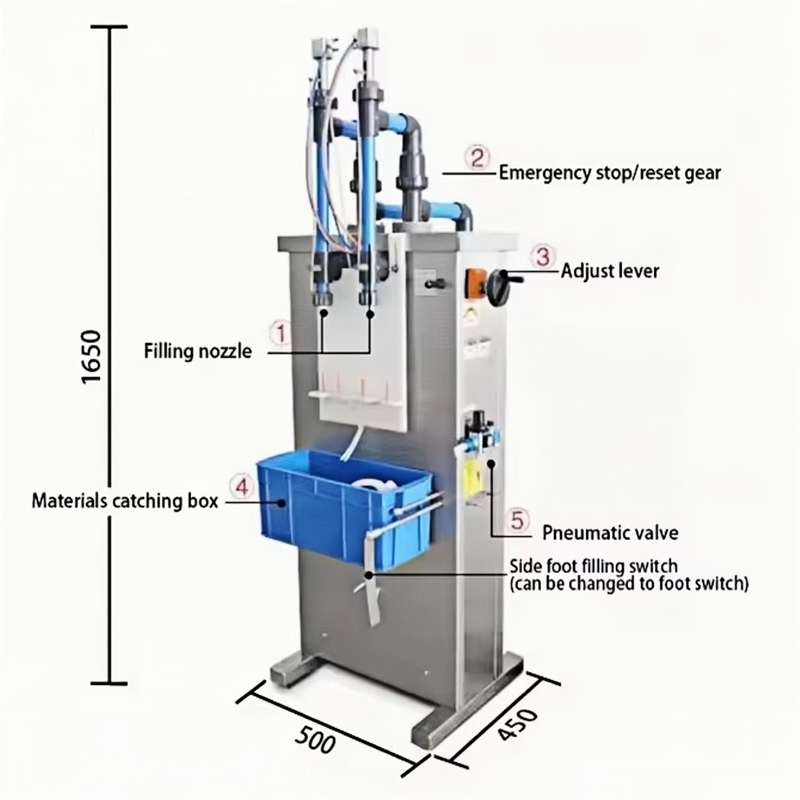

Machine Size

500(L)* 400(W)*1650(H)mm

Package Weight

50KG


Application

This corrosive liquid filling machine is equipped with two filling nozzles, filling speed can be controlled

as needed. It's suitable for filling corrosive liquids like toilet cleaner, bleach, strong acid liquid, etc.
