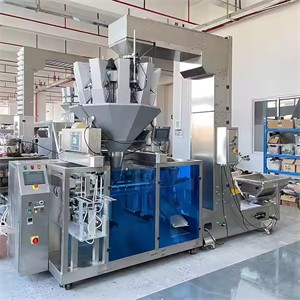

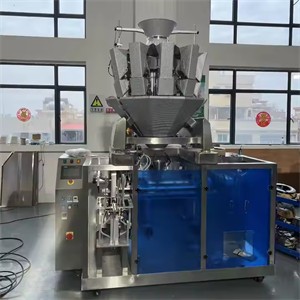

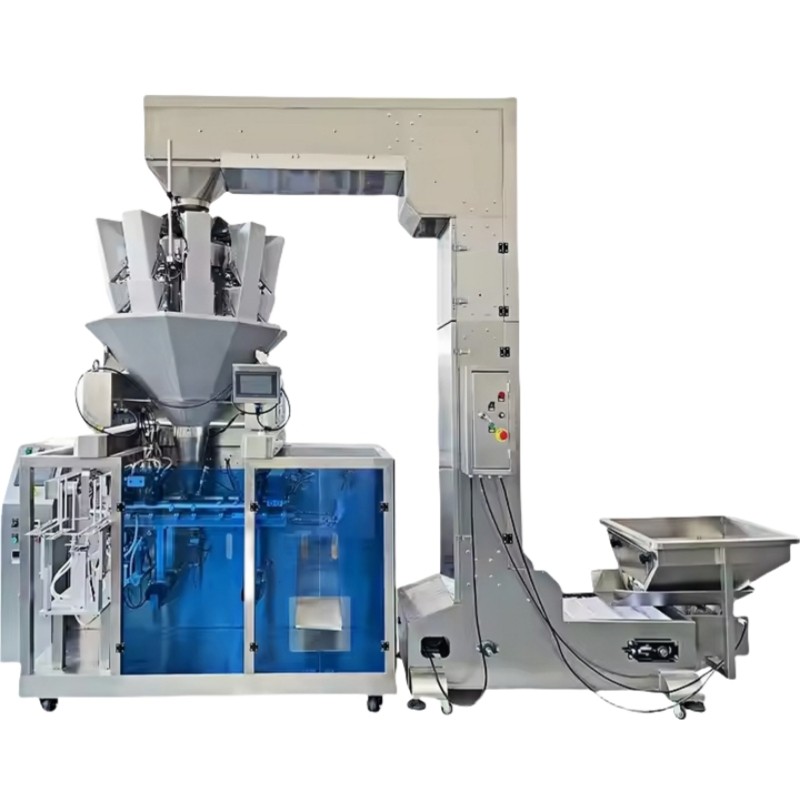

Machine Feature

Adopt linear design,multihead weigher equipped with Siemens PLC. With high weighing accuracy,

automatically fetch the bag and open bag. Easy to feed the powder, with humanity sealing by controlling

the temperature (Japanese brand: Ormon). It is the premier choice for saving cost and labor. This machine

is specially design for medium and small companies for agriculture medicine and food domestic and

abroad, with good performance,steady structure, easy operation, low consumption, low investigation

and high automation, ect.

Machine parameters

Model	XLY-210X
Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
size	W：100-210 mm (Can be customized as your request )
Filling range	20-1000g (Can be customized as your request )
Packing speed	20-50 bag/min（speed is determined by the product filling quantity）
Average precision	≤ ±1%
Total power	2.5KW
Weight	900 KG
Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

Application

Suitable range: dosing and weighing of grain, chip, bar or irregular shaped material such as candy,

sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut,

pet food, puffed food,small metal parts and plastic parts, etc.

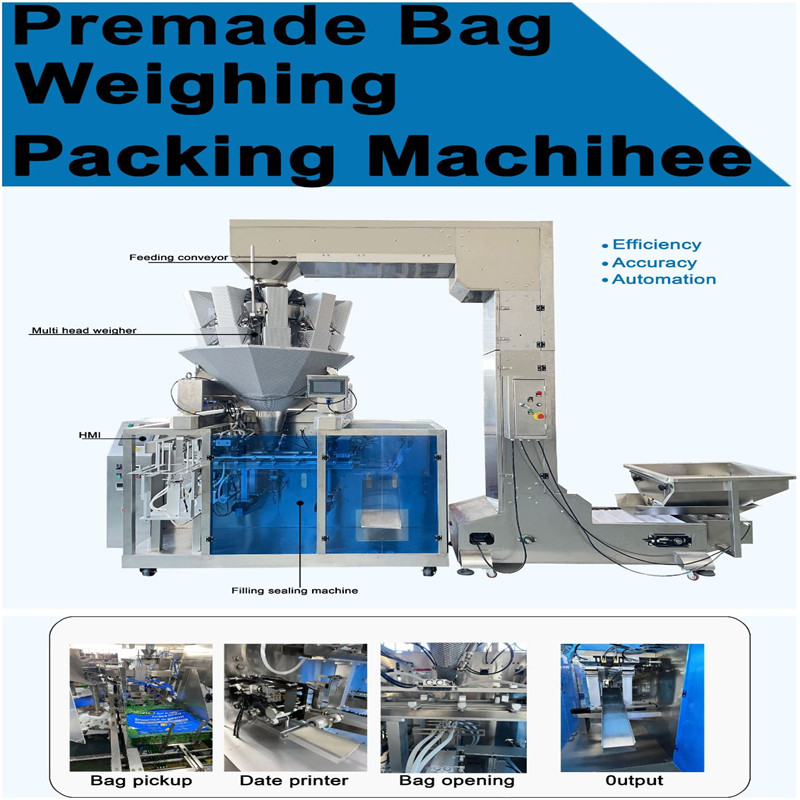

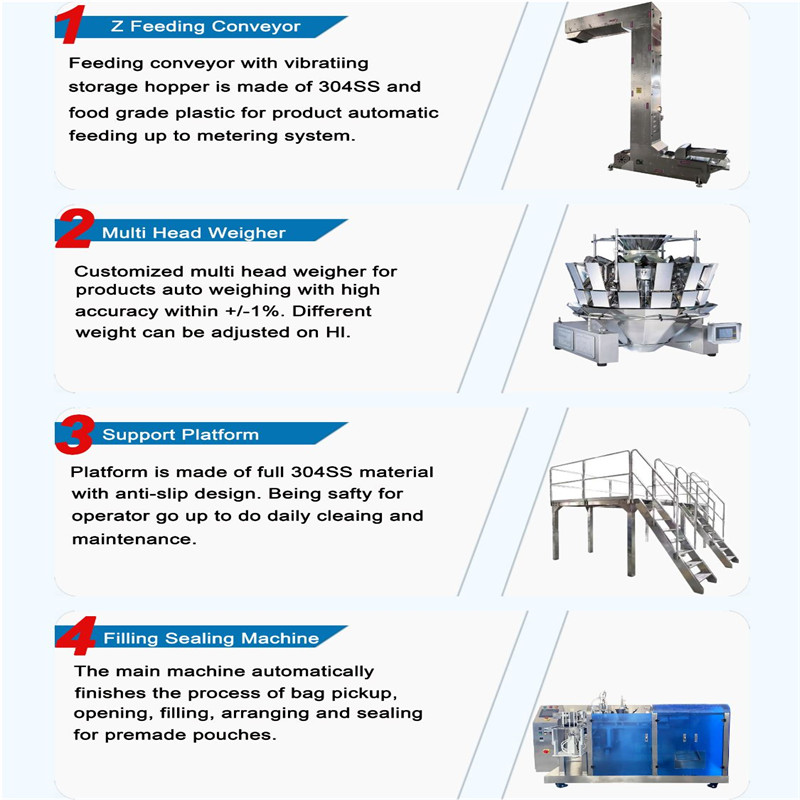

Machine Configuration
