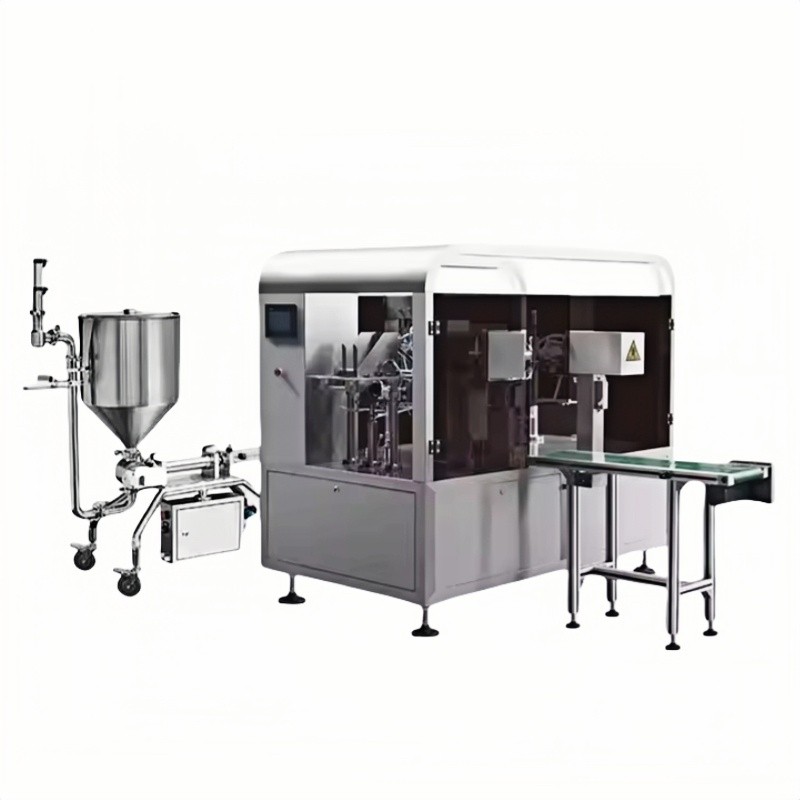

XLY-X8320 Liquid Doypack Packing Machine

Application
Liquid doypack /paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.

INQUIRY

Product Details

Product Tags

Machine Features

1. Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button;

2.Single shaft ad the CAM design, packing speed faster, more stable operation.maintenance easier and

reduce defective rate;

3. Modular heating, more accurate temperature control, heating fault can alarm;

4. Advanced design concept, reduce the loss of packaging material, ensure the stability of the operation

of equipment,prolong the operation of equipment life;

5.simple and convenient operation, using advanced PLC+POD (touch screen)electrical control system,

man-machine interface friendly;

6.The machine has a wide range of packaging, packaging liquid, paste, powder particles, solid materials

just according to different materials to choose different metering device can be;

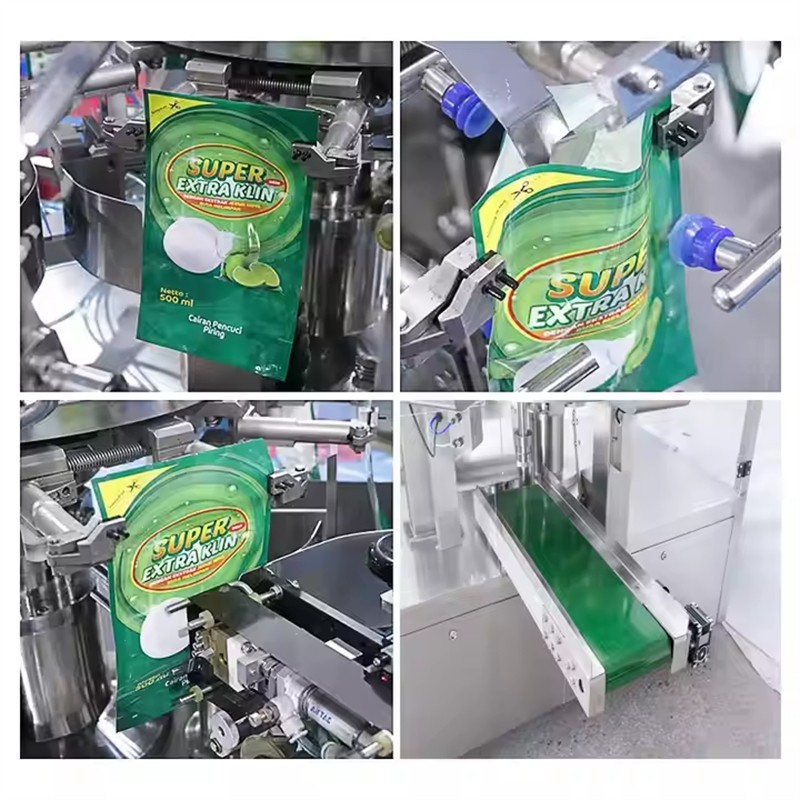

7.This machine USE s the prefabricated packing bag, the packing pattern is perfect,the sealing quality is

good, thus enhances the product quality and the class.

Machine parameters

Type	XLY-X8210	XLY-28260	XLY-X8320	Application
Machine workstation	Eight workstations	Eight workstations	Eight workstations	Protein Powder Premade Bag Packaging Machine
Bag material	Composite film, PP, PE, etc	Composite film, PP, PE, etc	Composite film, PP, PE, etc	Premade bag packing machine
Weighing Range(g)	10-1000	10-2000	10-3000	Filling range can be customized
Packaging speed (bags/minute)	0-60	0-60	0-60	speed can be customized
Bag size（mm）	W70-210xL100-300	W90-260xL100-350	w150-320xL150-450	bag size can be customized
Bag type	Zipper bag, stand up bag, 3-side sealed bag, 4-side sealed bag, shaped bag, etc	Zipper bag, stand up bag, 3-side sealed bag, 4-side sealed bag, shaped bag, etc	Zipper bag, stand up bag, 3-side sealed bag, 4-side sealed bag, shaped bag, etc	bag size can be customized
Gas consumption(m3/min)	0.6	0.6	0.6	0.6
supply voltage	2.5KW 3P 380V 50/60HZ	2.5KW 3P 380V 50/60HZ	2.5KW 3P 380V 50/60HZ	power can be customized
Machine weight	1300	1300	1300	1300
Main standard parts	1.code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5.Cylnder 6. Electromagnetic valve 7. Vacuum pump	1.code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5.Cylnder 6. Electromagnetic valve 7. Vacuum pump	1.code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5.Cylnder 6. Electromagnetic valve 7. Vacuum pump	1.code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5.Cylnder 6. Electromagnetic valve 7. Vacuum pump
