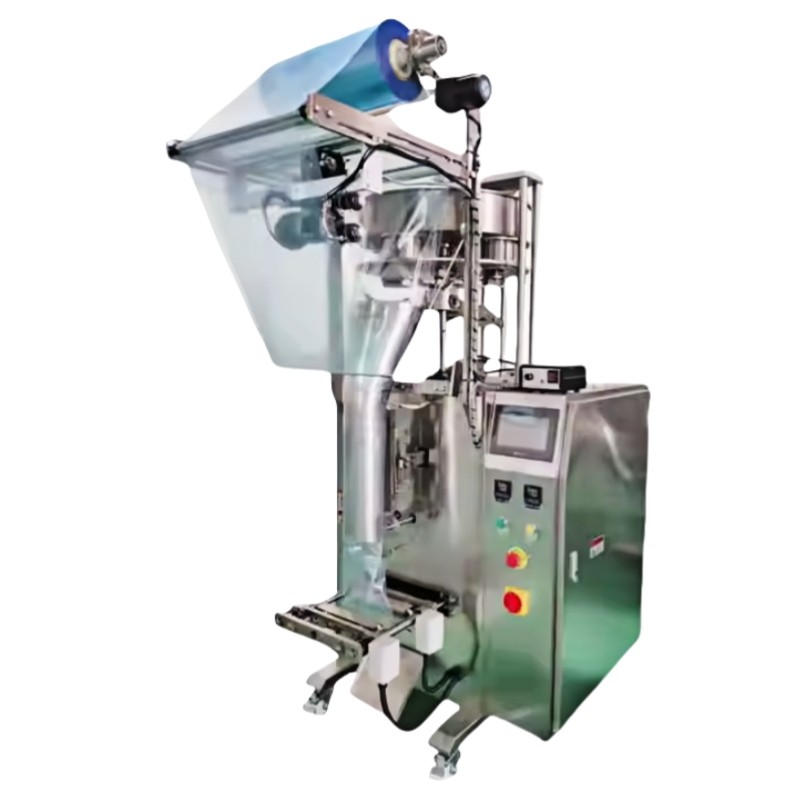

XLY-720 Granule stick bag and sachet bag Vertical Form Fill Seal Packing Machine

Applications
Solid material which shape is roll, grain or slice. Such as puffed food, shrimp slice, peanuts, popcorn, chocolate, seeds, oatmeal, coffee, white sugar, electuary and solid beverage etc.

Product Details

Product Tags

Advantages

1.Small size, low weight to be manually put into the lifter, without any space limitation;

2.Low power requirement: 220V voltage, no need dynamic electricity, and also can be customized the

power as you request;

3.operation positions, low maintenance, high steadily;

4.Fast speed, easy to be matched with other equipments, Max 55bags /min;

5.Multi-function operation, run the machine by pressing only one button, no need professional training.

Good compatibility, it can suit different types of irregular shapes of bags, easy to change the bag types

without adding extra accessories.




Machine parameters

Model XLY -320 XLY-420 XLY-520 XLY-720 XLY-920 XLY-1200
Film width 120-320 mm 420 mm 520 mm 720 mm 920 mm 1200 MM
Bag length 50-200 mm 80-300mm 80-400mm 80-500mm 80-650mm 80-750MM
Bag width 50-150 mm 50-20 mm 70-250 mm 60-350 mm 200-450 mm 200-550 MM
Packing grams 50-150 ML 50-1500ML 50-3000ML 50-5000ML 100-10000ML 100-20000ML
Packing speed 35-70bpm 35-70bpm 35-70bpm 35-70bpm 35-70bpm 35-70 bpm
Power 220V/380V/50/60 HZ
Machine dimension 970*680*1960 mm 1200*1500*1700 1500*1600*1800 1600*1700*1800 1600*1700*1800 1800*1700*1800
Machine weight 300 kg 450 kg 500kg 600 kg 750 kg 1200 kg


Application

Solid material which shape is roll, grain or slice. Such as puffed food, shrimp slice, peanuts, popcorn,

chocolate, seeds, oatmeal, coffee, white sugar, electuary and solid beverage etc.
