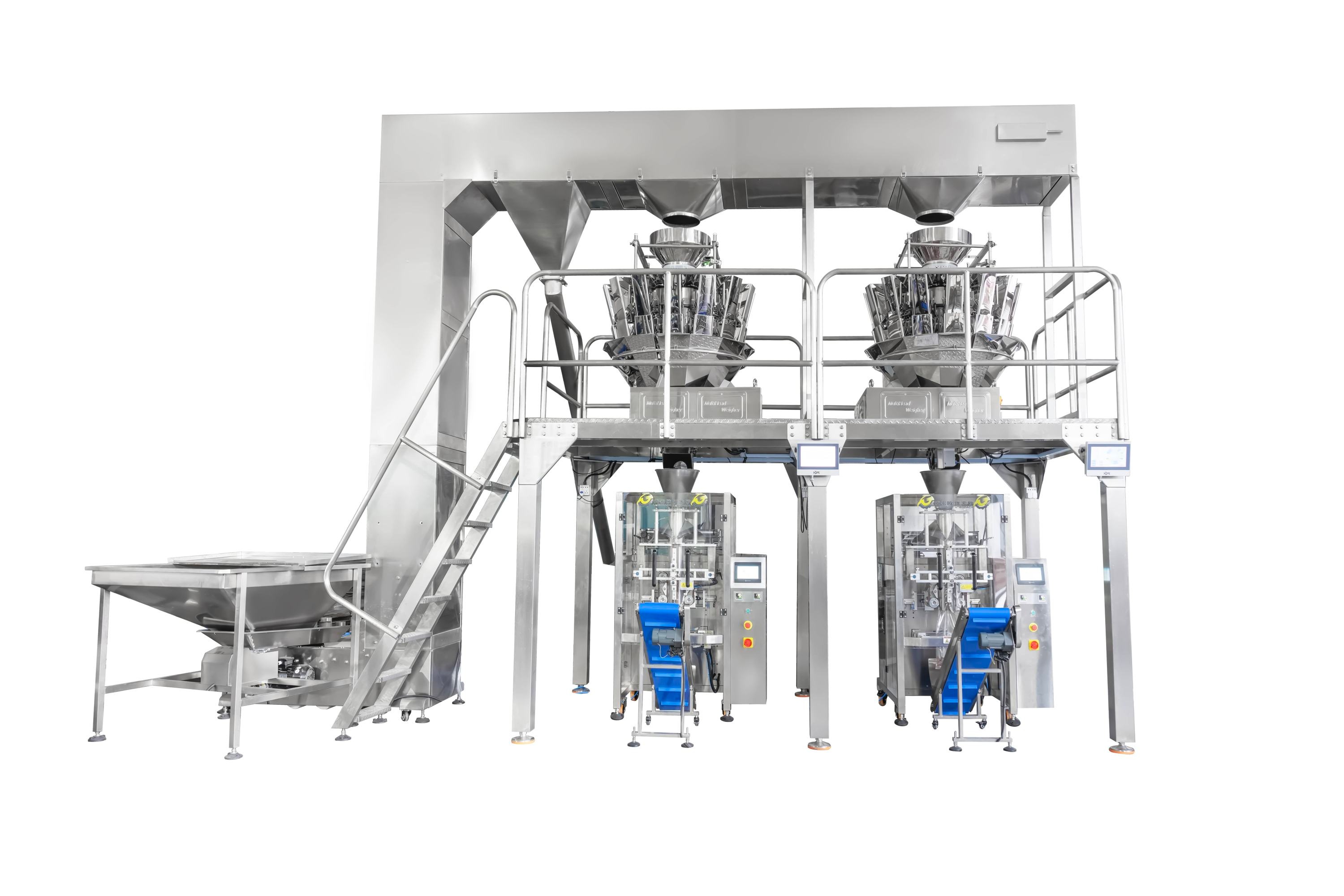

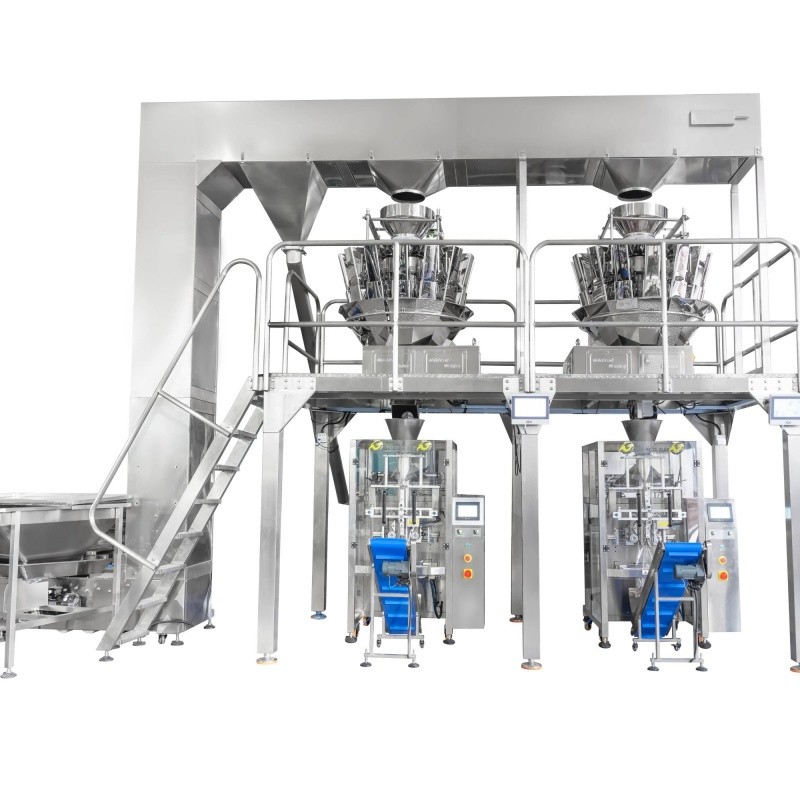

XLY420 Automatic VFFS Weighing Seal Pouch Bag Packaging Machine

XLY420 VFFS Weighing Seal Packaging Machine

Food Industry (Main Application)
Nuts & dried fruits: peanuts, cashews, pistachios, almonds, raisins, dates, wolfberry, mixed dried fruits
Puffed snacks: potato chips, prawn crackers, popcorn, extruded snacks, biscuits, cookies
Grain & cereals: rice, oats, coffee beans, sunflower seeds, melon seeds, mixed grains
Confectionery: hard candy, gummy candy, chocolate beans
Frozen food: frozen vegetables, frozen dumpling snacks, frozen fries

INQUIRY

Product Details

Product Tags

XLY420-Automatic-VFFS-Weighing-Seal-Pouch-Bag-Packaging-Machine

Application:

Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed,

small hardware, dumplings, vegetable, fruits and sugar etc. which shape is roll, slice and granule.

Technical characteristics:

1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting,

and finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance;

belt is resistant to be worn-out.

4. External film releasing mechanism: simpler and easier installation of packing film.

5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.

6. Close down type mechanism, defending powder into inside of machine.

Type	XLY -420
Bag length	50-300mm(L)
Bag width	50-200mm(W)
Max width of roll film	420mm
Packing speed	30-40bags/min
Measuring range	150-1200m
Air consumption	0.65mpa
Gas consumption	0.3m³/min
Power voltage	220VAC/50Hz
Power	2.2KW
Dimension	1080(L) X1300(W) X1400(H)mm
Weight	600Kg
