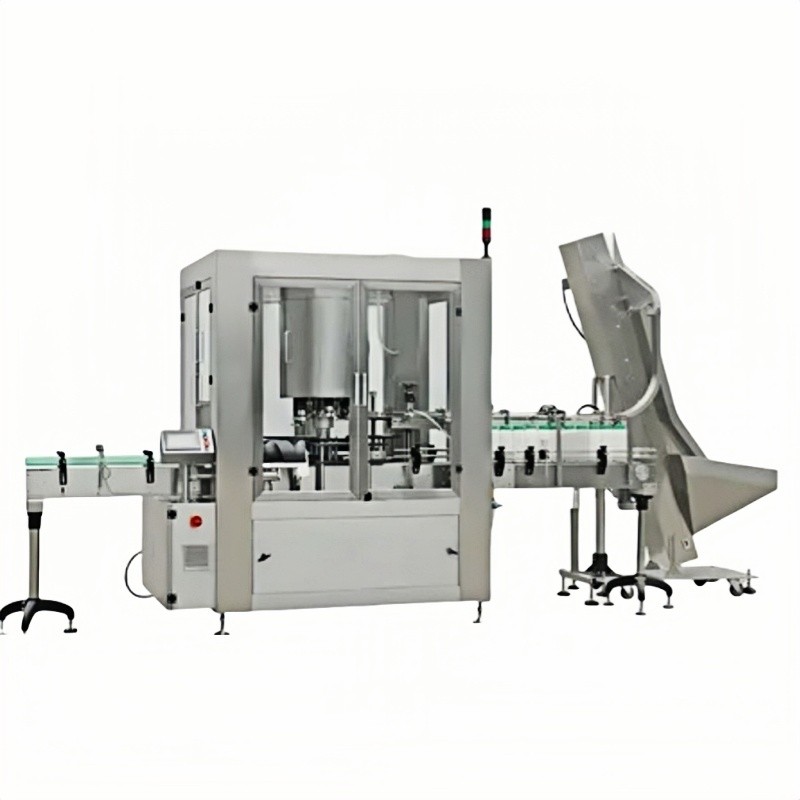

XLY-675 Automatic Rotary Capping Machine

Machine description
This machine combines bottle-in, cap-sorter, cap-elevator,capping and bottle-out altogether in one. The rotary structure ,catching the lid in the certain position,stable and reliable. It does no harm to bottle and lid . High capping efficiency, high qualified rate of capping, and wide application which enjoys good competitiveness that can be compared with foreign products. It is applicable to varies size of glass and plastic bottles and caps.

INQUIRY

Product Details

Product Tags

Machine description

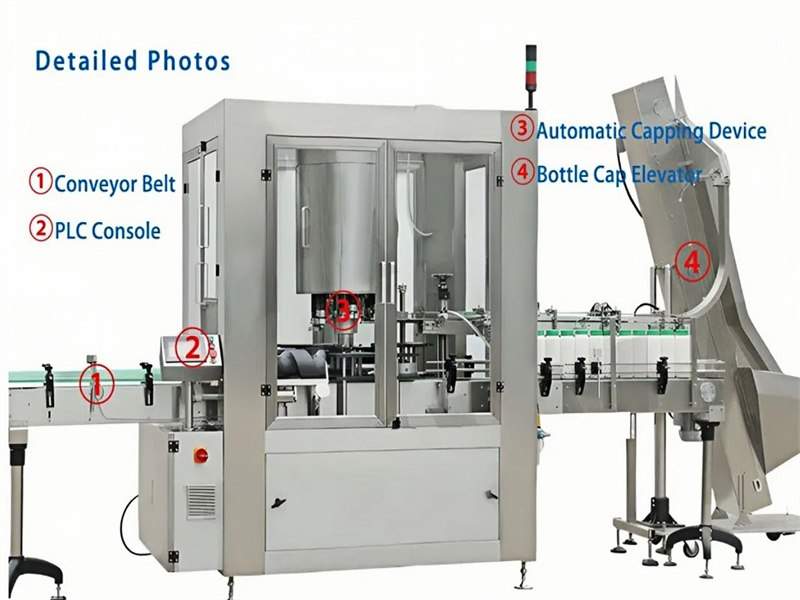

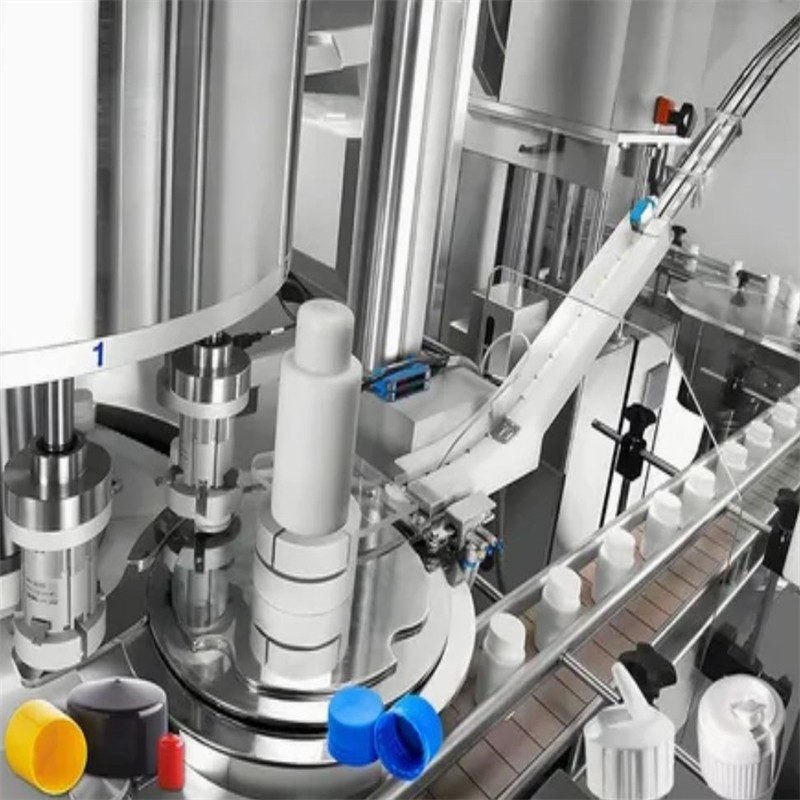

This machine combines bottle-in, cap-sorter, cap-elevator,capping and bottle-out altogether in one.

The rotary structure ,catching the lid in the certain position,stable and reliable. It does no harm to

bottle and lid . High capping efficiency, high qualified rate of capping, and wide application which

enjoys good competitiveness that can be compared with foreign products. It is applicable to varies

size of glass and plastic bottles and caps.

Characteristics

1. The pneumatic and electric components are world-renowned brand, very reliable and durable.
2. It is characterized by its reasonable compact, convenient operation and maintenance,
3. Auto cap feeding and closing, with high capping pass ratio.
4. Easy to change bottle specifications, & with large adjusting scope for different bottles positioning.
5. With safety device: Stop working when bottle is stuck
6. Continuous working & highly automation ensuring highly efficiency.
7. Made of stainless steel 304, delicate & durable. Can be painted with anti-crossive material or made

of PVC material to meet corrosive environment.

Machine parameters

Type	XLY-675
Applicable bottle	Φ40-100mm,Height 80-250mm
Cap Specification	Φ15-50mm
Cap height	15-35mm
Capping Head	6,8
Cpacity	≤6500 bottles/hour
Capping qualified rate	≥99.8%
Air Pressure	0.6~0.8Mpa
Power Source	380V,50HZ
Power	4.5KW
External Dimension	3000×1360×2100(L×W×H)mm
Weight	about 1500Kg
