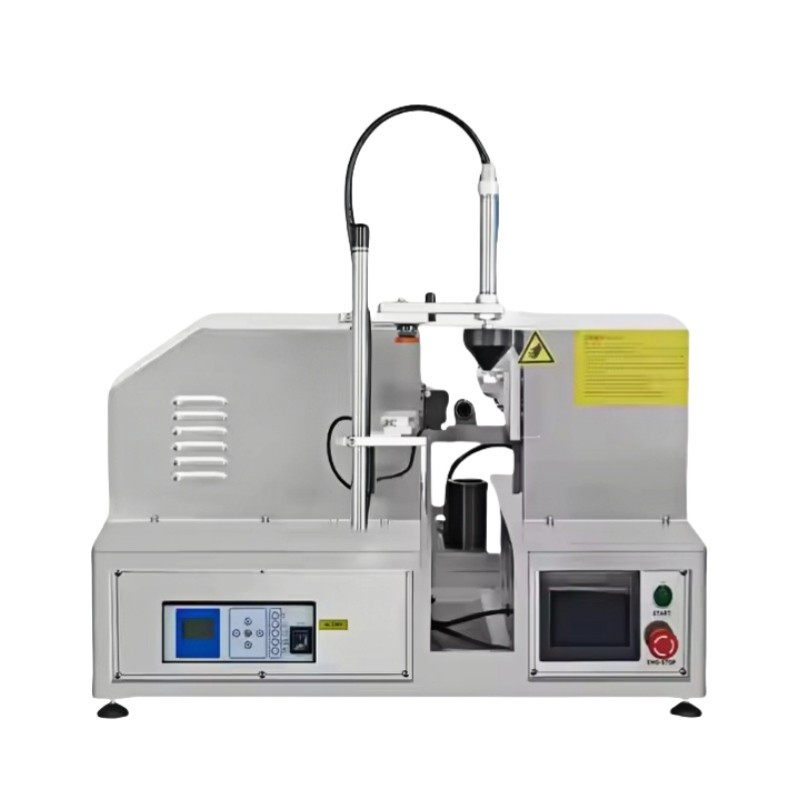

XLY-09 Liquid Tube Filling and Sealing Machine

Application
Ultrasonic terminal facial cleanser sealing machine is used for sealing toothpaste, cosmetics, pharmaceuticals, food, industrial products, etc.

INQUIRY

Product Details

Product Tags

Machine feature

1. Manually tube feeding automatic registration mark identifying, filling, sealing with coding, end

trimming, tube out feeding.

2.Cam indexing system could position precisely for ten working stations.

3.Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no

distortion and low reject rate less than 1%.

4.Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual

adjust the frequency, with power auto compensation function, avoiding the reduction of power after

long time use. Could freely adjust the power based on tube material and size, stable and minimum

the fault rate, extend the life span than the normal electrical box.

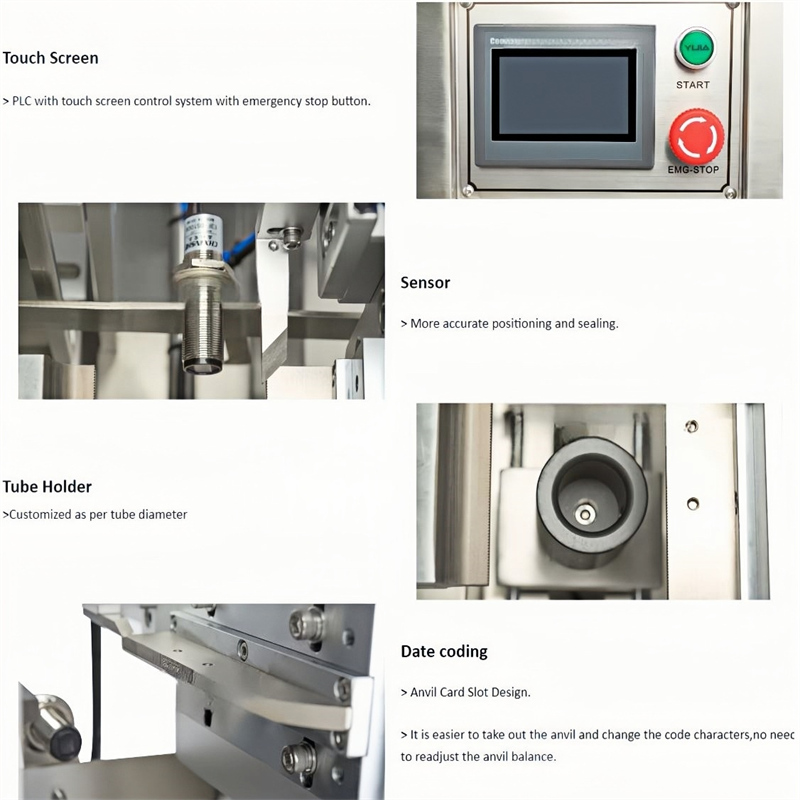

5.PLC with touch screen control system with alarm system, could directly view the alarm information

on the touch screen, could locate the problem and solve immediately.

6. Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

7.No tube, no fill, no tube, no seal function, reducing the machine and mould loss.

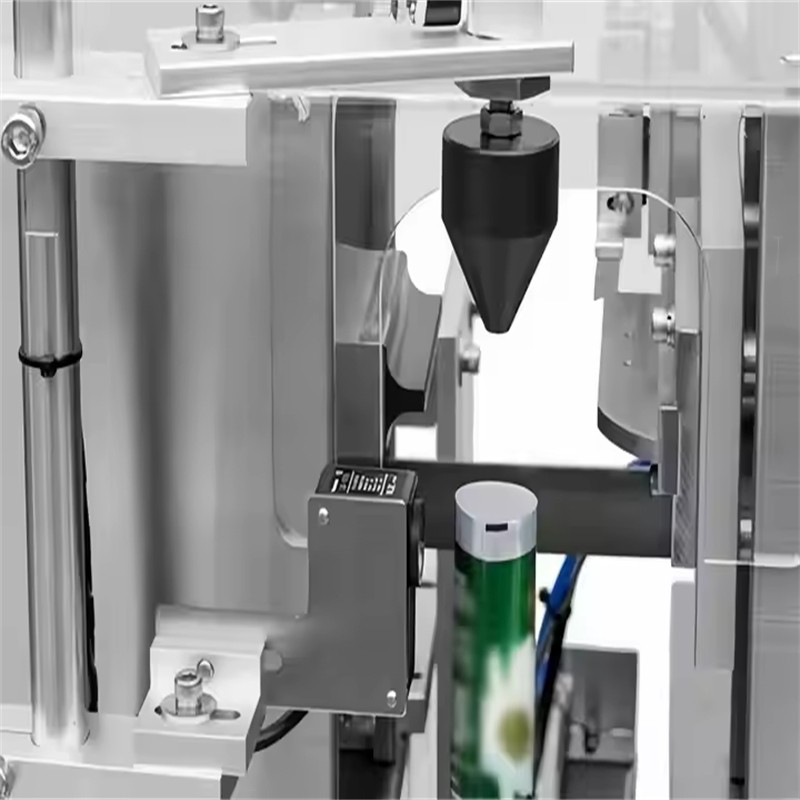

8.Adopts Anti-dripping filling nozzle.

Machine parameters

Model	XLY-09
Frequency	20KHz
Power	2KW
Power Supply	AC220V/110V 50/60Hz
Filling Range	A: 10-120ml
	B: 25-250ml
	C: 50-500ml
Filling Accuracy	±1%
Capacity	20-28 Pcs/min
Sealing Diameter	16-50mm (Custom-made available)
Sealing Diameter	16-50mm (Custom-made available)
Tube Height	60-250mm
Air Pressure	0.6MPa
Air Consumption	0.35m³/min
Dimension	176016001860mm
N. Weight	580Kg
