Advantage

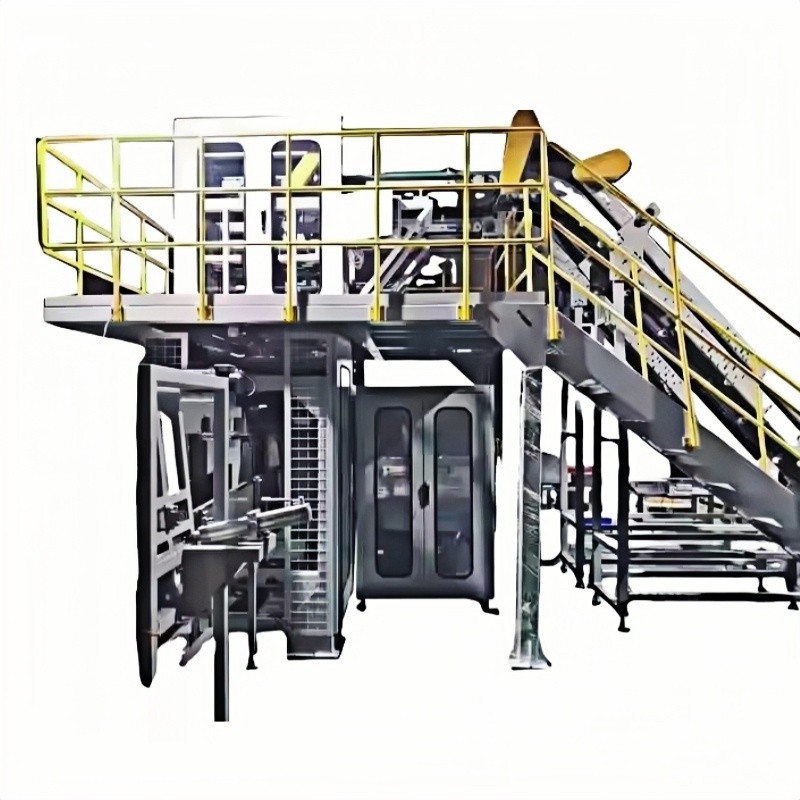

1.The front two sets automatic primary packaging machine own functions of weighing,filling,bag making,

sealing,cutting,date printing,etc.used for packing bulk material in bags.

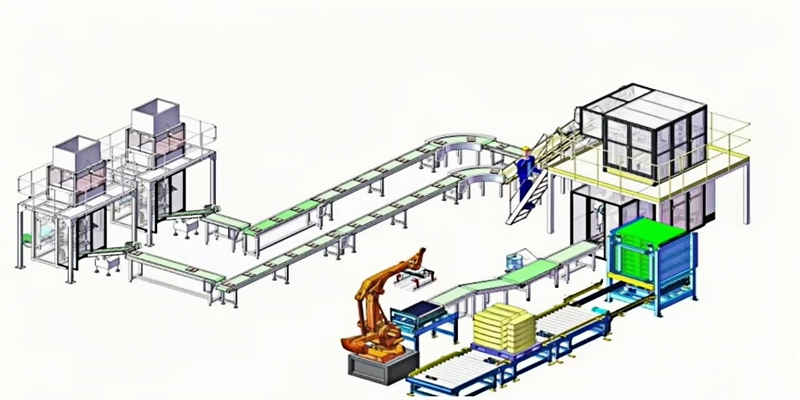

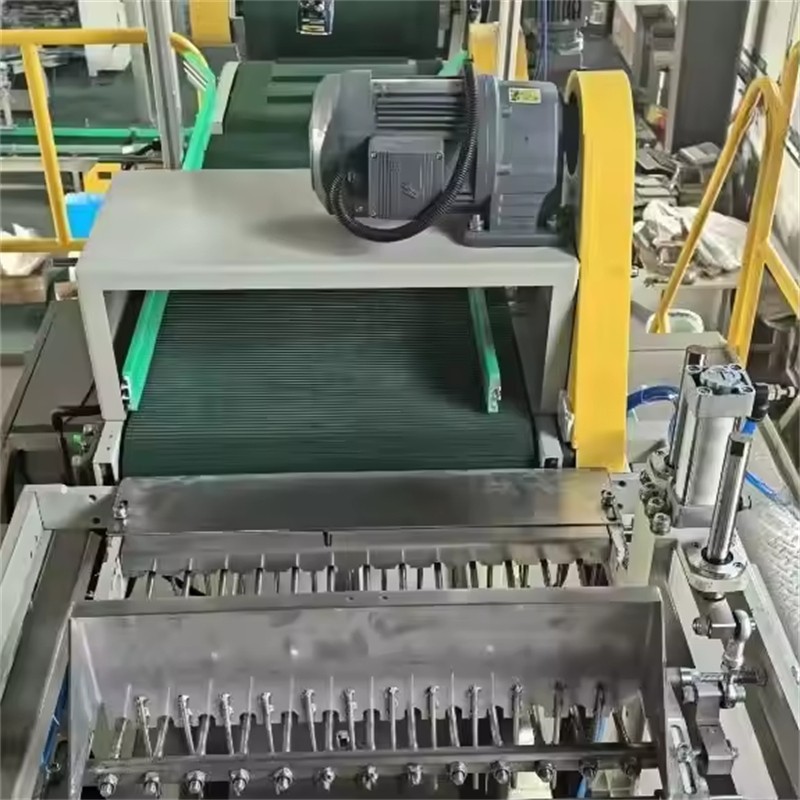

2.The connecting conveyor includes the converge conveyor to receive finished bags from primary

packaging machines and climbing conveyor to send bags to baler packing machine.

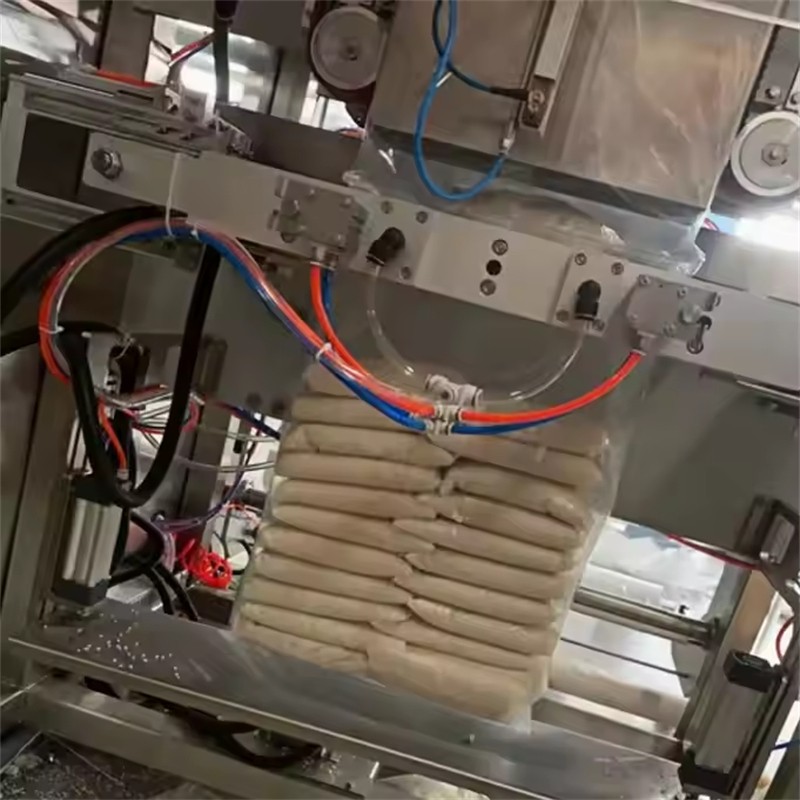

3.The baler packing machine own functions of bag dropping, bag-making,sealing,cutting,date printing,

etc.used for packing primary packaging bags into big plastic bag in a certain order.
4.all the primary packaging machine and baler packing machine adopts international famous brand

components. Works stable.
5.Minimize labor costs, improve packaging efficiency, and promote factory automation.

Machine parameters

Model	XLY-120
Bag type	Pillow type bag; Gusseted bag (Option)
Capacity	Max 25kg
Speed	100-120 small bags/min (times/min) dependant on products characteristics andweighting range
Weighing accuracy	±0.2% dependant on products characteristics
Bag Length	150 to 1000 mm
Bag Width	150 to 730 mm
Reel Film Width	<=1500mm
Film thickness	0.04-0.12mm
Voltage	AC220V/50Hz, 1 phase or Per customer specification

Application
