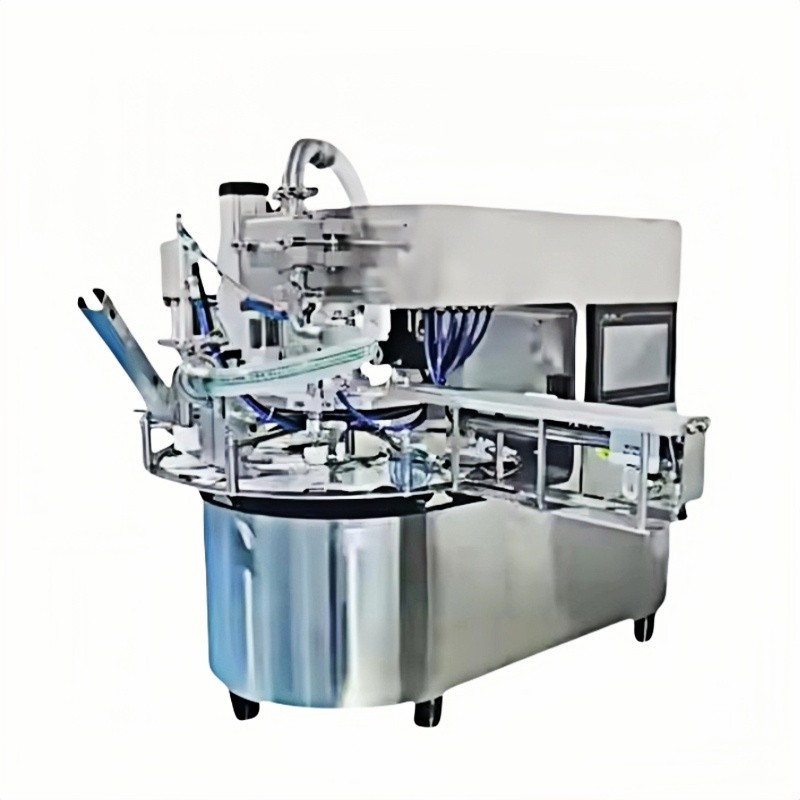

XLY-X70 Liquid Spout Pouch Filling Machine

Application
Suitable for daily chemical and food industry bag products: such as laundry detergent, shampoo, jelly, milk,etc.

Product Details

Product Tags

Feature

1.Simple operation: it has the function of formula preservation, and only needs to adjust the product

capacity after saving parameters of the same caliber bag;

2.High efficiency: fast filling speed, good stability, each filling capacity using brand servo motor control,

high filling accuracy;

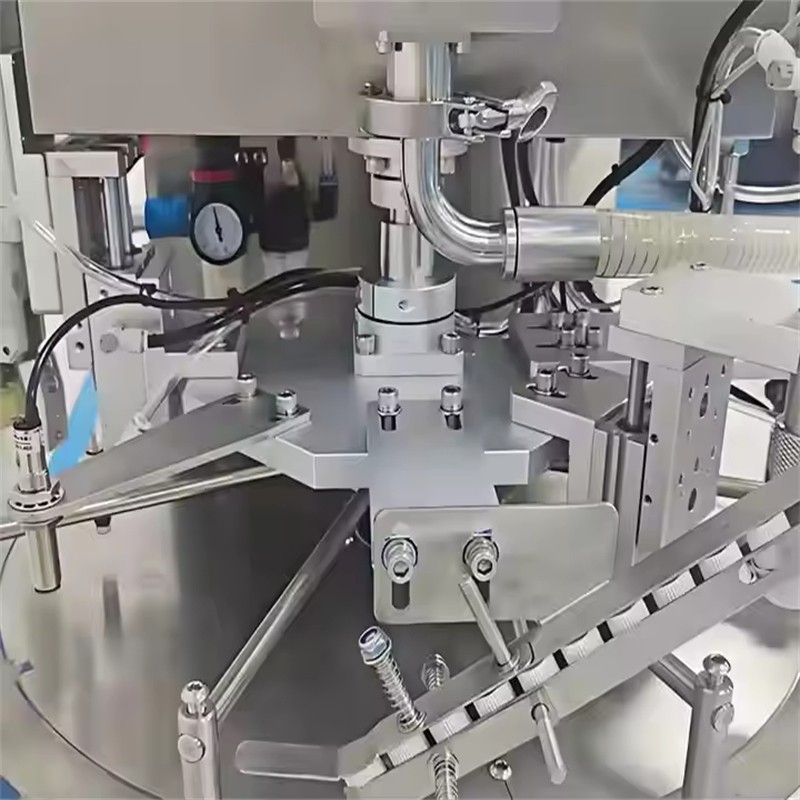

3.Easy to clean: gear pump, storage tank and filling head are connected and fixed by hoop type, and

can be partially disassembled and cleaned without using tools; There is an automatic cleaning button

on the main control screen.



Product parameters

Machine Type

XLY-X70

Filing accuracy

±1-3%

Filling speed

1200 pouchs/hour

Filling capacity

1000-2000ml (Can be customized)

Air pressure

0.4-0.7Mpa/head

Machine Size

900*800*750mm

Machine wight

40KG

Applicable power supply

110-230V




Application

Suitable for daily chemical and food industry bag products: such as laundry detergent, shampoo, jelly,

milk,etc.
