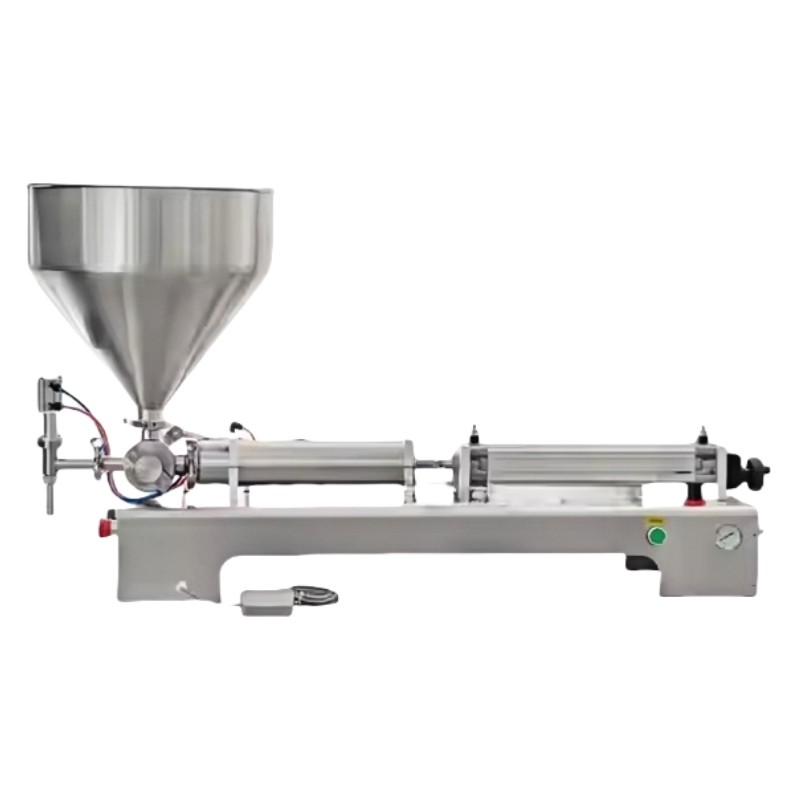

XLY-300 Liquid Filling Machine

Application
This paste filling machine is used in the chemical industry, food, cosmetic, medicine, pesticide, the lubricating oil and so on. It can fill the bags or bottles quantitatively.Single or double nozzle can be provided. As with the cylinder device, this paste filling machine has to work together with the air compressor.

Product Details

Product Tags

Product feature

1. Easy to operate and maintain.
2. The equipment is composed of branded electrical components and runs stably.
3. Stainless steel body, strong and beautiful.
4. It has a wide range of applications and can be customized according to customer needs.
5. It can meet international standards and is harmless to humans or the environment.
6. Automate production, reduce labor and increase output.
7. Intelligent adjustment, simple operation, induction filling, precise measurement.
8. Cylinder positioning, automatic bottle feeding, no filling without bottle, automatic stop and start.
9. Microcomputer control, more stable filling, higher precision, small repeat error.
10.All stainless steel body, laser cutting, smooth surface without hurting hands.
11.Independent motor control for each head, digital display speed regulation, adjustable flow rate.



Parameters

Type XLY-300
Voltage 220/110V 50/60HZ
Motor Power 50W
Filling Speed 5-20 B/Min
Filling Volume 10- 100, 30-300, 50-500, 100- 1000,300-2500, 1000-5000ml
Filling Accuracy ±1 % (Depends on actual filling material)
Filling Head 1
Package Size 1250* 395*380mm 520* 500* 790mm
Package Weight 38KG


Application

This paste filling machine is used in the chemical industry, food, cosmetic, medicine, pesticide, the

lubricating oil and so on. It can fill the bags or bottles quantitatively.Single or double nozzle can be

provided. As with the cylinder device, this paste filling machine has to work together with the air

compressor.
