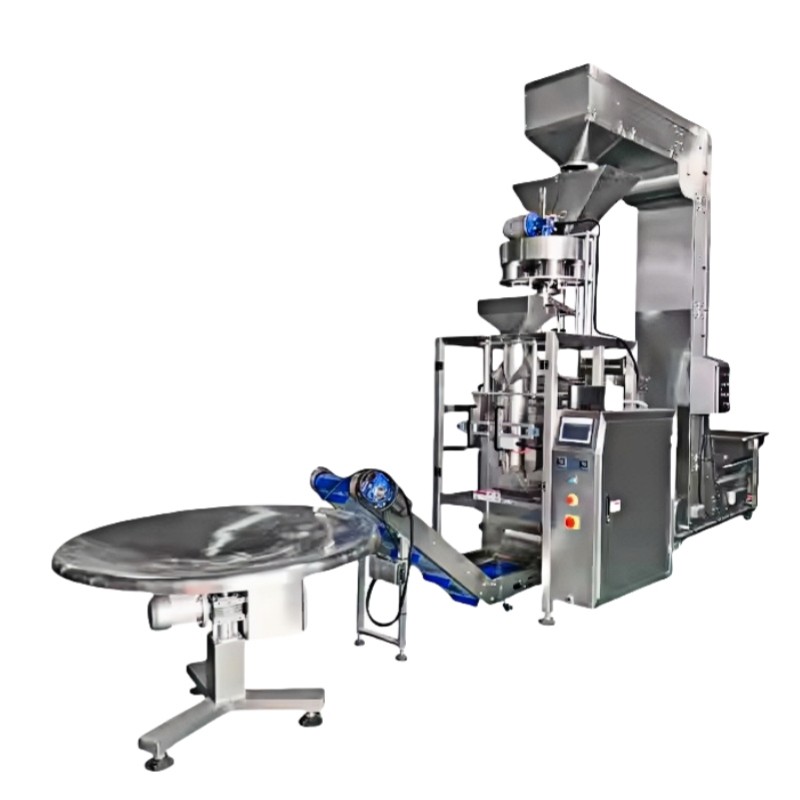

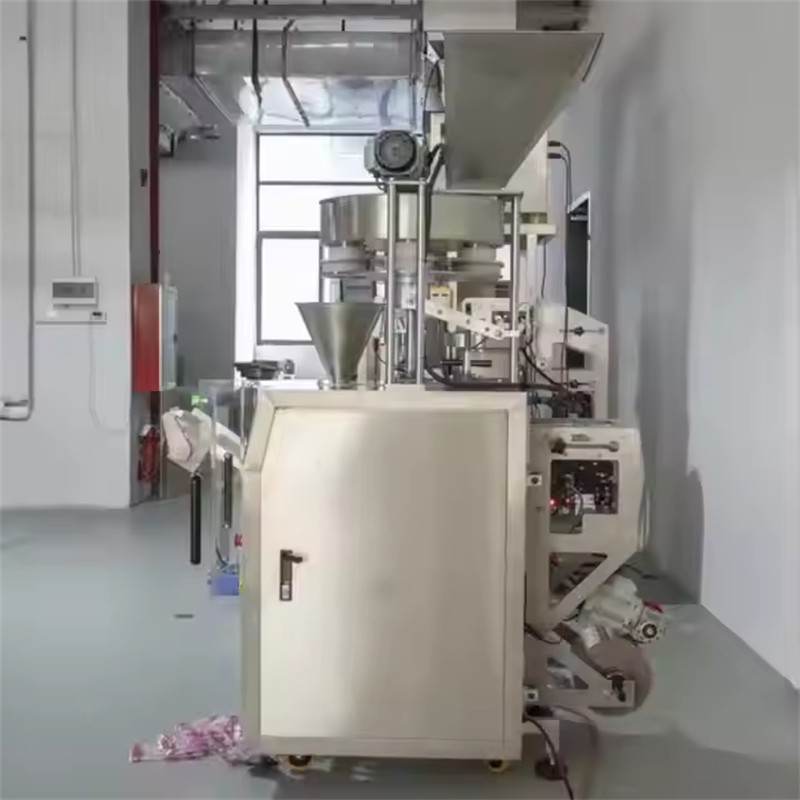

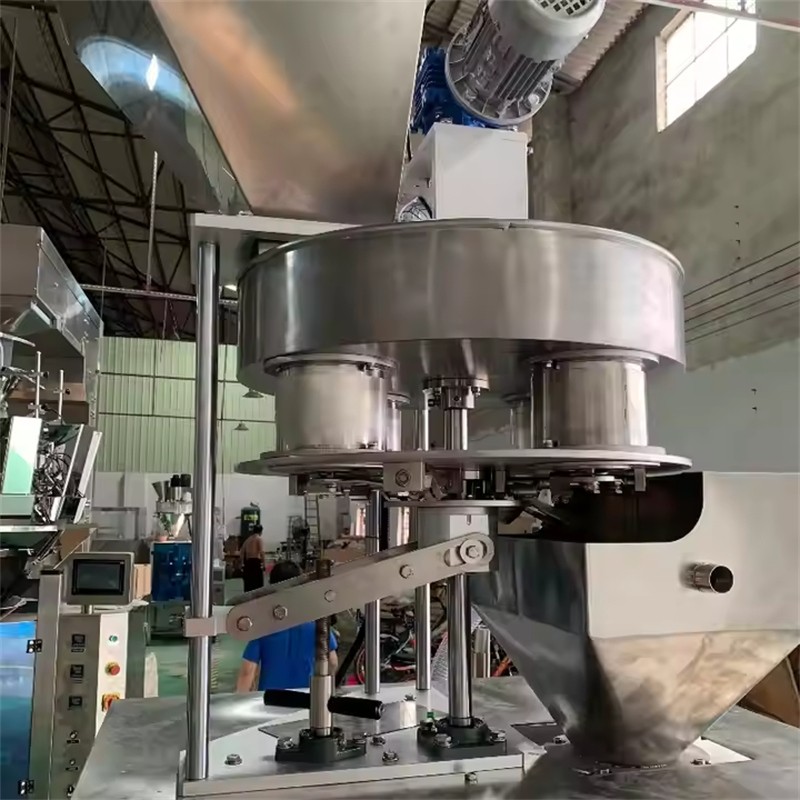

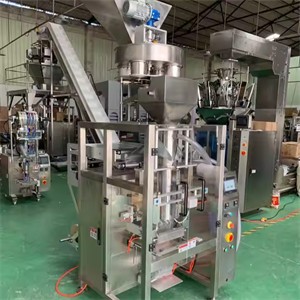

XLY-420 Granule Vertical Form Fill Seal Packing Machine

Application
The granule packing machine is suitable for loose rounded granules in the food, chemical and other industrial.
Such as: puffed granules, peanuts, popcorn,melon seeds, rice, pepper, sugar,salt, biscuits etc.

INQUIRY

Product Details

Product Tags

Advantages

1.Small size, low weight to be manually put into the lifter, without any space limitation;

2.Low power requirement: 220V voltage, no need dynamic electricity, and also can be customized the

power as you request;

3.operation positions, low maintenance, high steadily;

4.Fast speed, easy to be matched with other equipments, Max 55bags /min;

5.Multi-function operation, run the machine by pressing only one button, no need professional training.

Good compatibility, it can suit different types of irregular shapes of bags, easy to change the bag types

without adding extra accessories.

Working procedure:

Large roll of film -form in to bag shape -fill the bag with product, and seal it- bag size can be customized

- finished the bag ( bag size can be customized,and speed 30-60 per minute)

Machine parameters

Model	XLY -320	XLY-420	XLY-520	XLY-720	XLY-920	XLY-1200
Film width	120-320 mm	420 mm	520 mm	720 mm	920 mm	1200 MM
Bag length	50-200 mm	80-300mm	80-400mm	80-500mm	80-650mm	80-750MM
Bag width	50-150 mm	50-20 mm	70-250 mm	60-350 mm	200-450 mm	200-550 MM
Packing grams	50-150 ML	50-1500ML	50-3000ML	50-5000ML	100-10000ML	100-20000ML
Packing speed	35-70bpm	35-70bpm	35-70bpm	35-70bpm	35-70bpm	35-70 bpm
Power	220V/380V/50/60 HZ
Machine dimension	9706801960 mm	120015001700	150016001800	160017001800	160017001800	180017001800
Machine weight	300 kg	450 kg	500kg	600 kg	750 kg	1200 kg
