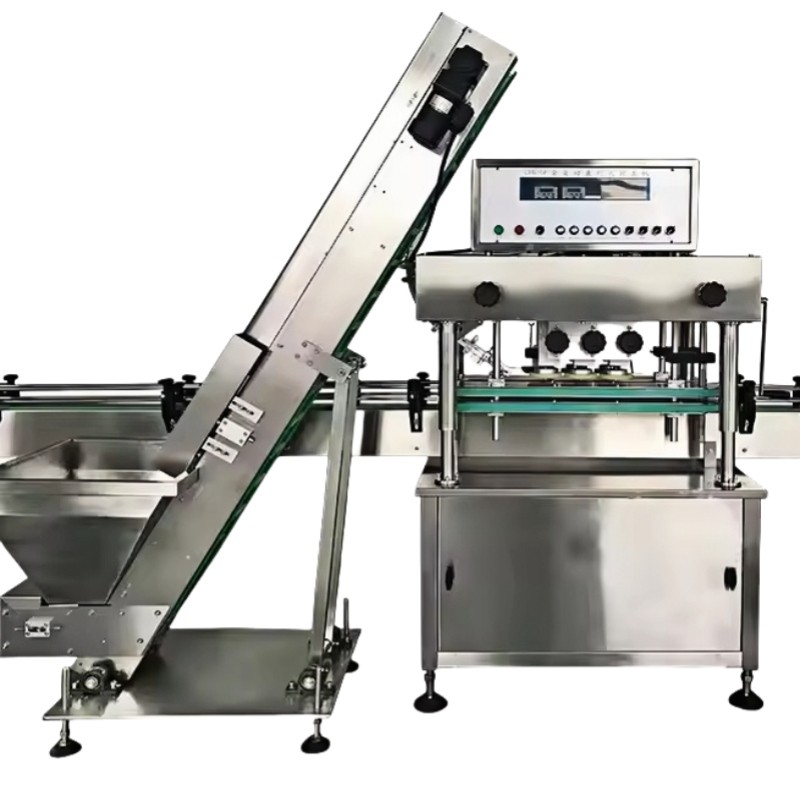

XLY-78  Automatic Twisting Capping Machine

Application

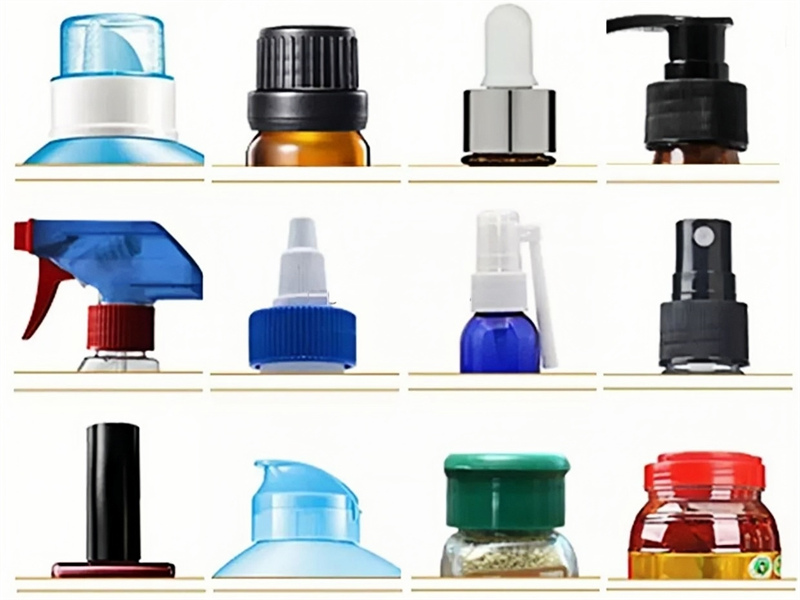

The capping machine could capping various size,such as for twist caps,trigger caps,spray pump caps,flip caps,conical caps etc.The machine has an wide using range.

Product Details

Product Tags

Machine Features

1. The machine has an wide using range.It could used various size caps sealing.such as for normal

screw caps,spray pump caps,flip caps,conical caps etc.

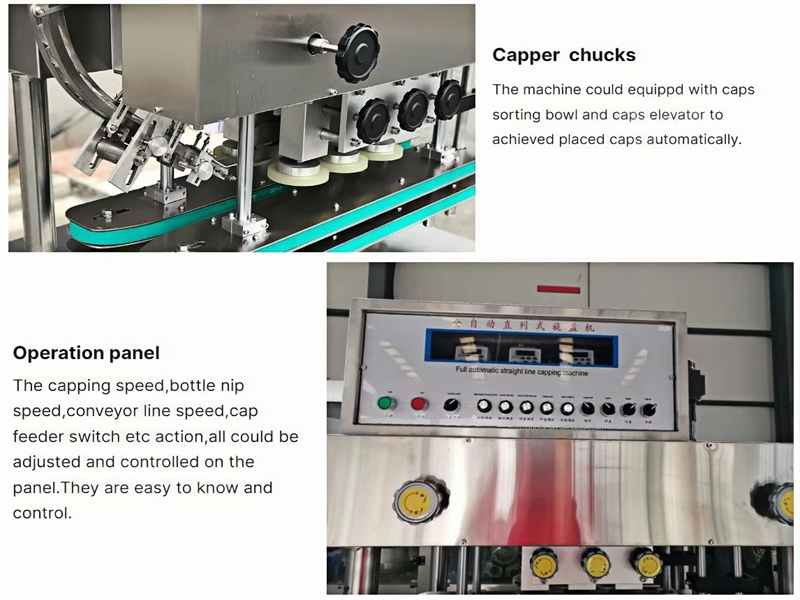

2. The machine with PLC program and touch screen,easy to operate and control.

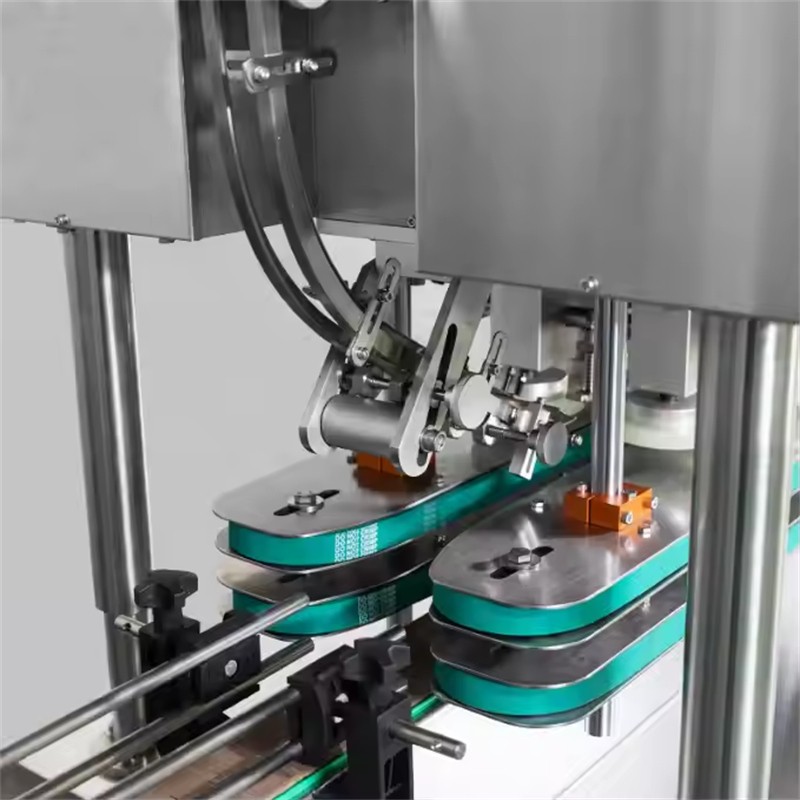

3. The capping wheels with PU materials,no slip,no scratch.

4. Caps screwing strength and force,and capping speed could adjustable.

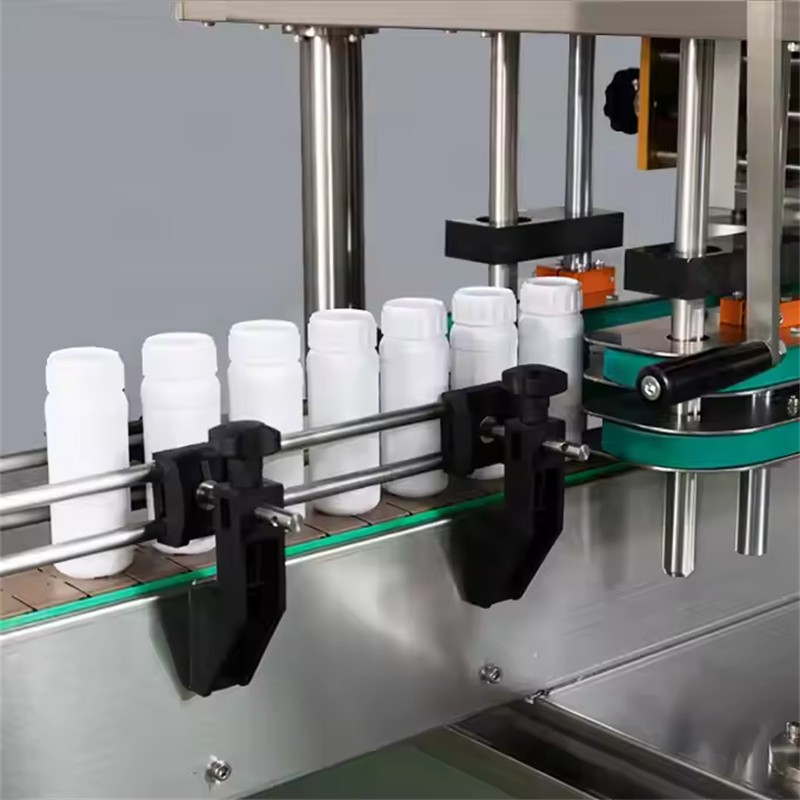

5. Bottle clamping strength and screwing height are adjustable to matching different size bottles.

The automatic cap sealing machine could used various kinds caps sealing.such as for twist caps,spray

pump caps,flip caps,conical caps etc.The screw capping machine with high high degree of automation,

stability, easy to adjust, when changing into other caps sealing,no need changing spare parts, just make

certain adjustments will be ok.



Machine parameters

Type XLY-78
Bottle diameter 25-96mm
Production capacity 8000 bottles/hour(adjustable)
Air pressure 0.6Mpa clean and stable   compressed air
Total power 2kw
Machine  Dimension(L*W*H):2000*900*2000mm



Application

The capping machine could capping various size,such as for twist caps,trigger caps,spray pump caps,

flip caps,conical caps etc.The machine has an wide using range.
