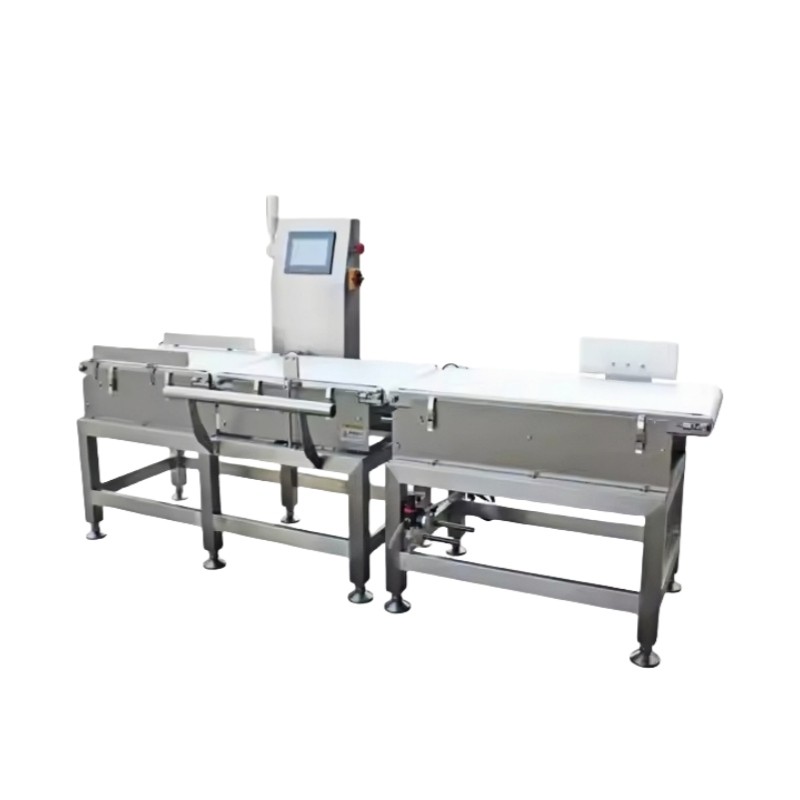

XLY-X150 Food Check Weigher Device Machine for Snack Food

Application:
Check weigher is widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health care products, and many other industries. For example, it can be used in food industry to check the weight of bread, cake, hams,0nstant noodles, frozen food, food additives, preservative etc, packaging products like bag, sachet, box, jar, cans, cartons, etc.

INQUIRY

Product Details

Product Tags

Product parameters

Model	XLY-X150	XLY-X200	XLY-X300	XLY-X400	XLY-X500	XLY-X600
Weight Range	≤200g	≤1000g	≤3000g	≤20Kg	40Kg	≤40Kg
Minimum Scale	0.01g	0.1g	0.1g	0.1g	0.1g	0.1g
Accuracy	±0.2-0.5g	±0.2-0.5g	±0.2-0.5g	±0.2-0.5g	±0.2-0.5g	±0.2-0.5g
Speed	0-70m/m	0-70m/m	0-60m/m	0-50m/m	0-40m/m	0-30m/m
Product's Length	150mm	300mm	300mm	500mm	600mm	700mm
Product's Width	120mm	180mm	270mm	350mm	440mm	530mm
Power	0.1KW	0.15KW	0.4KW	0.4KW	0.4KW	0.4KW

Main Function:

* Easy Integration: adjustable height, modular design.
•Sturdy and robust construction: Stainless Steel 304.
•Easy to use: touch screen operating system is easy to use with user password protection.
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application.
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for

excellent accuracy and speed.
•Zero Trace: Manual and Automatic Calibration, increase accuracy*
Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production

data in USB disk.
•Connectivity: standard ports for data exportation and connect to PC.
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to

2000 product setting.
•Different Detection Modes: Default Mode, Static Mode, Power saving mode.
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose

problems.
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines.

Application:

Check weigher machine can check packed products’ weight online whether their weights are overweight

or less-weight to ensure the weight of products to meet standards. Check weigher is automatic device

that used to check the products’ weight in automatic packing production lines, and it can check products

in a continuous working process which weight accords with the standard weight we set or not. Also, the

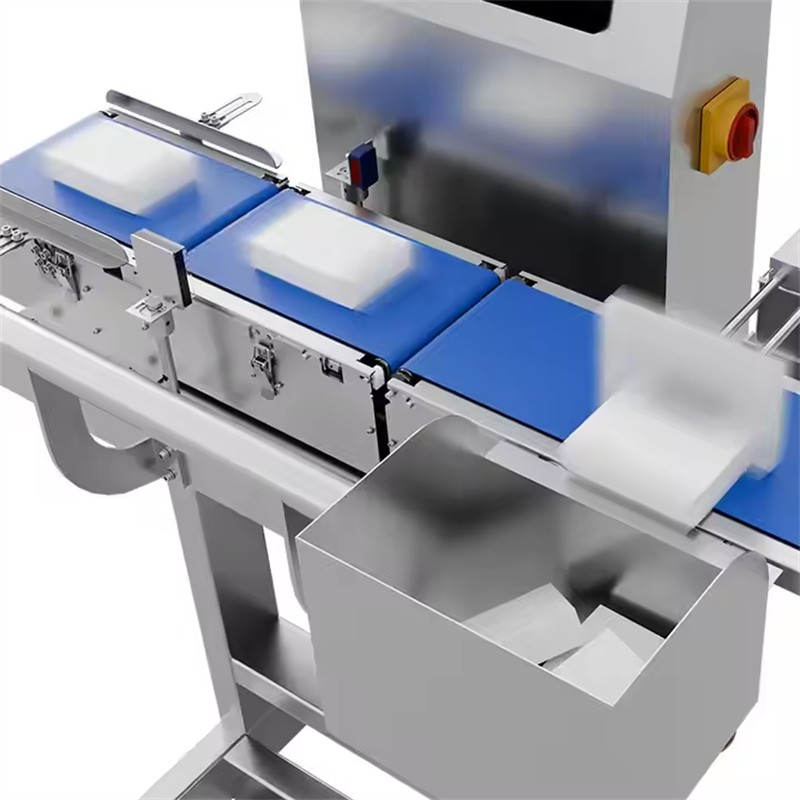

check weigher can automatically reject unqualified products.
Check weigher is widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health

care products, and many other industries. For example, it can be used in food industry to check the weight

of bread, cake, hams,0nstant noodles, frozen food, food additives, preservative etc, packaging products

like bag, sachet, box, jar, cans, cartons, etc.
Check weigher substantiates the extensive know-how that the company has accumulated in weighing

technology over the years. By including a high-precision weight checking function in the production line,

your product quality can improve without any decline in efficiency. The series provides a whole range

of features for handling different products, and incorporate new functions in response to modern

necessities.
