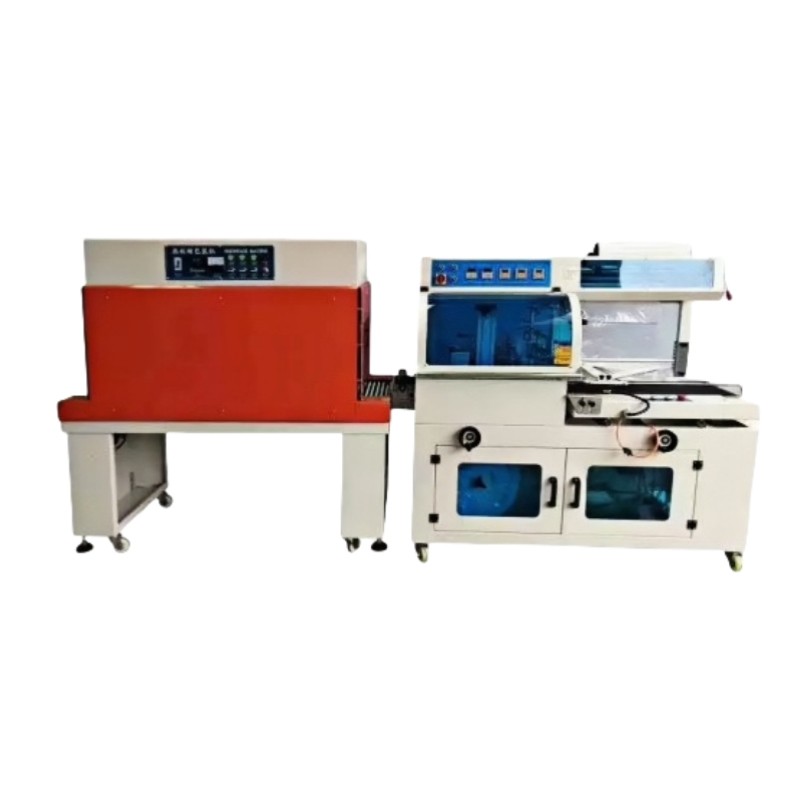

XLY-450A Auto Shrinking Tunnel Shrink Packing Wrapping Machine for boxes

Application
These machine can fold film ,seal sides and shrink film to finish the package.The temperature and time can be adjusted according to operation needs.These machine are widely used in food,electronics, and printing industries.

Product Details

Product Tags

Machine description

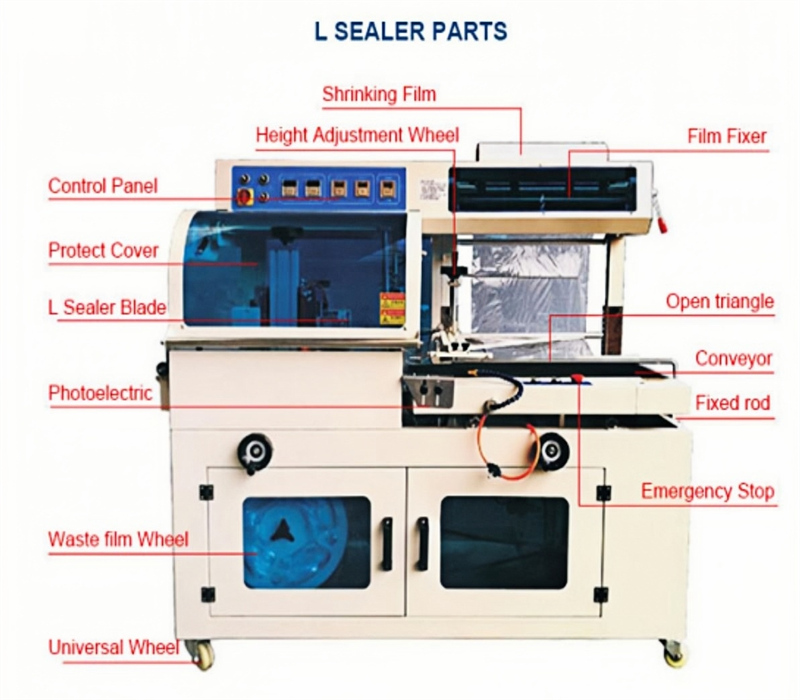

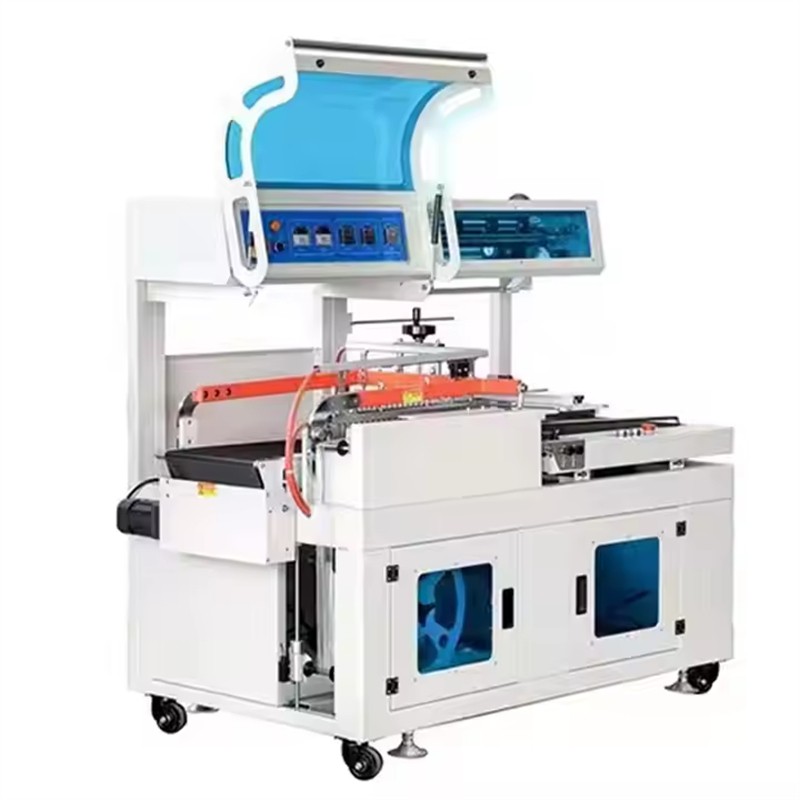

Fully automatic L-shaped sealing and shrinking machine packaging machine is a fully automatic

unmanned packaging machine, which can be used with automatic packaging lines. feeding, bagging,

sealing, cutting and shrinking are completed automatically. High working efficiency. A shrink film is

used to wrap the product or package, and the heat shrinks the film to tightly wrap the product or

package. It enhances the product's display type, and increases the sense of beauty and value.

The articles packed by the heat shrinkable machine can be sealed, protected from moisture and

pollution, and protect the goods from external impacts. They have a buffer effect, especially It is

used to prevent fragility when the container is broken when packing fragile products. In addition, the

possibility of the product being disassembled or stolen can be reduced.



Machine parameters

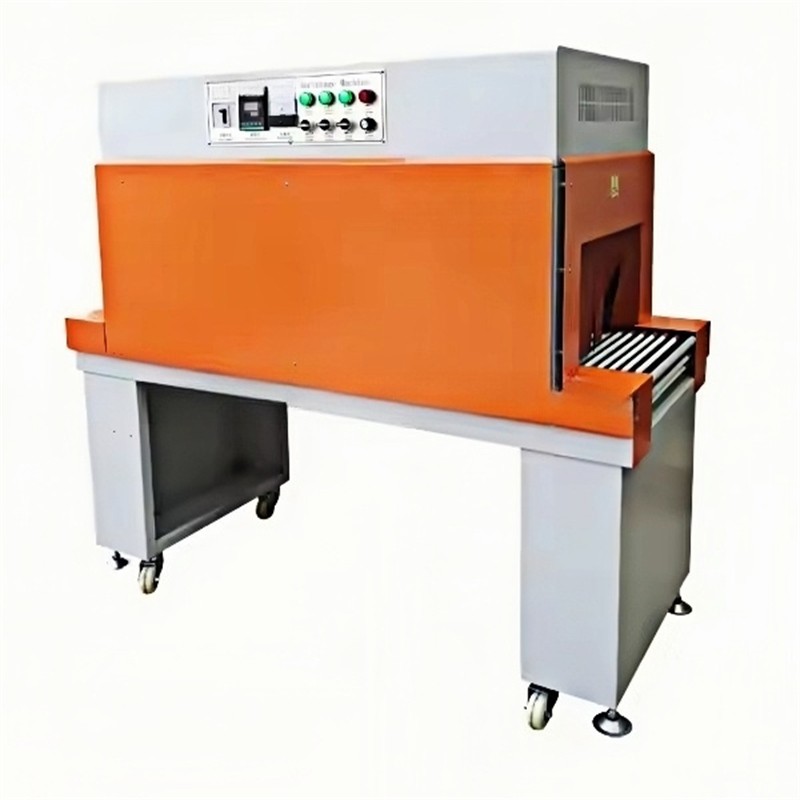

L SEALER XLY-450A SHRINK TUNNEL XLY-4020C
VOLTAGE 220/50-60HZ VOLTAGE 380v 50-60HZ
POWER 1.35KW POWER 9KW
AIR PRESSURE: 5-7 TUNNEL SIZE(L*W*H) 1200*400x200mm
CAPACITY 15-30bags/min PRODUCT SIZE(W*H) 350x150mm
PRODUCT MAX SIZE L+H(H<150mm) <500mm CONVEYOR SPEED 0-15m/min
PRODUCT MAX SIZE W+H(H<150mm) <400mm MATERIAL CHAIN, TEFLON
SEALING SIZE 550*450mm CONVEYING LOAD 20kg max
MACHINE SIZE (L*W*H) 1650*800*1450mm MACHINE SIZE (L*W*H) 1600x560x660mm
WEIGHT 300KG WEIGHT 80kg

Application

These machine can fold film ,seal sides and shrink film to finish the package.The temperature and

time can be adjusted according to operation needs.These machine are widely used in food,electronics,

and printing industries.
