Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, pharmaceutical,
metal industries etc, imported PLC automatic program control, easy operation, safety protection and alarm
function, and effectively prevent incorrect, packaging, Equipped with imported horizontal and vertical
detection photoelectric, easy to switch selection. It has the function of contact, specially designed for
packing small size products. The machine can be connected with the production line, no need additional
operators.
Model
XLY-663
Machine
Sealing and cutting

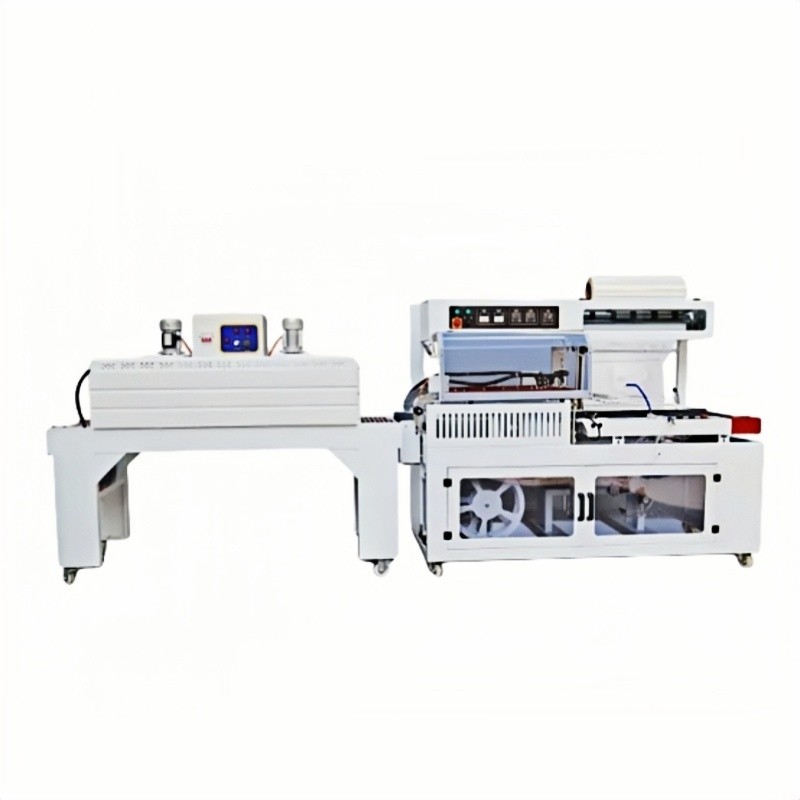

Shrink Tunnel
Machine size(L×W×H)
1685×828×1480mm
1300×700×1465mm
Max.packing size
L≤500 W≤430 H≤200mm
(L)700×(W)350×(H)200mm
Max.sealing size
(L)550×(W)450mm
Packing speed/Conveyor sepped
15~25 pcs/min
0~15 m/min
Machine weight
225kg
260kg
Power
2.5kw
9kw
Voltage
1PH 220V 50Hz
3PH 380V 50Hz
Air pressure
6-8kg/cm2
Film material
POF

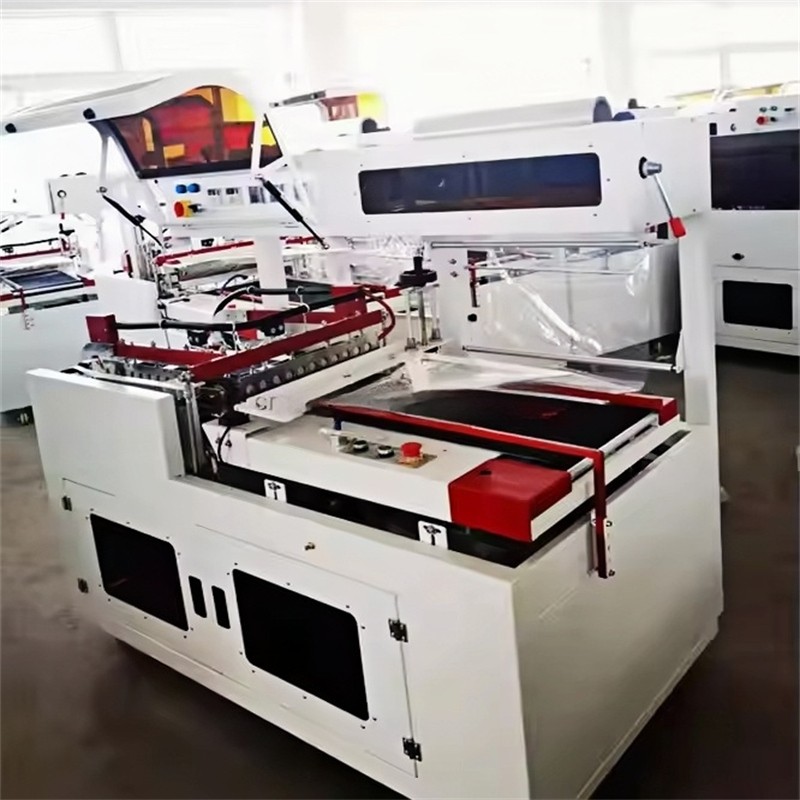

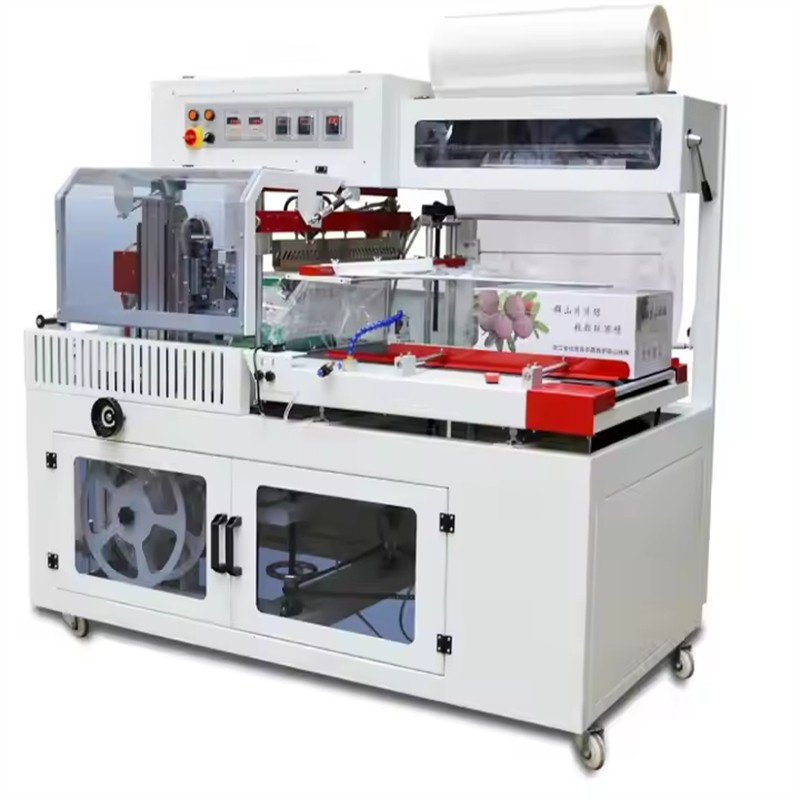

1. the Automatic L Sealer Shrink Packing Machine is equipped with imported photoelectric detection
one horizontal and one vertical detection, which is convenient for switching. for thin and small packaging
it is also easy to complete sealing and packaging operations.
2. Automatic feeding, the length can also be automatically adjusted through the combination of photoelectric
and timer. Equipped with induction motor to automatic take up waste material
3. When the size of the package is changed, the size of the package is adjusted by the rotation of the hand
wheel and the adjustment is very simple. no need to change the mold and the bag maker.
4. Different sizes of products can also be combined with packaging to achieve promotional effects.
The shrink wrapping machine is Suitable for large-volume shrink packaging of software, food, cosmetics,
printing , beverage,hardware and other industries, such as wood flooring, photo frames. aluminum profiles
and other wide and long items.
