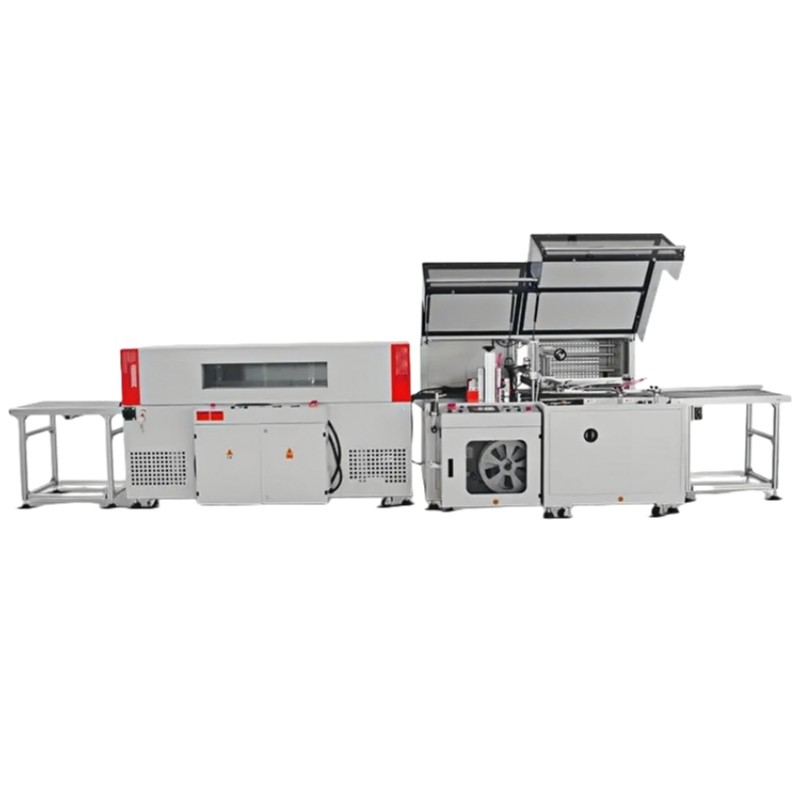

XLY-389 High Speed Heat Shrink Film Carton Box Packaging Machine

Machine introduction
Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, metal industries etc,imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect,packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact,specially designed for packing small size products.

INQUIRY

Product Details

Product Tags

Machine introduction

Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, metal industries

etc,imported PLC automatic program control, easy operation, safety protection and alarm function, and

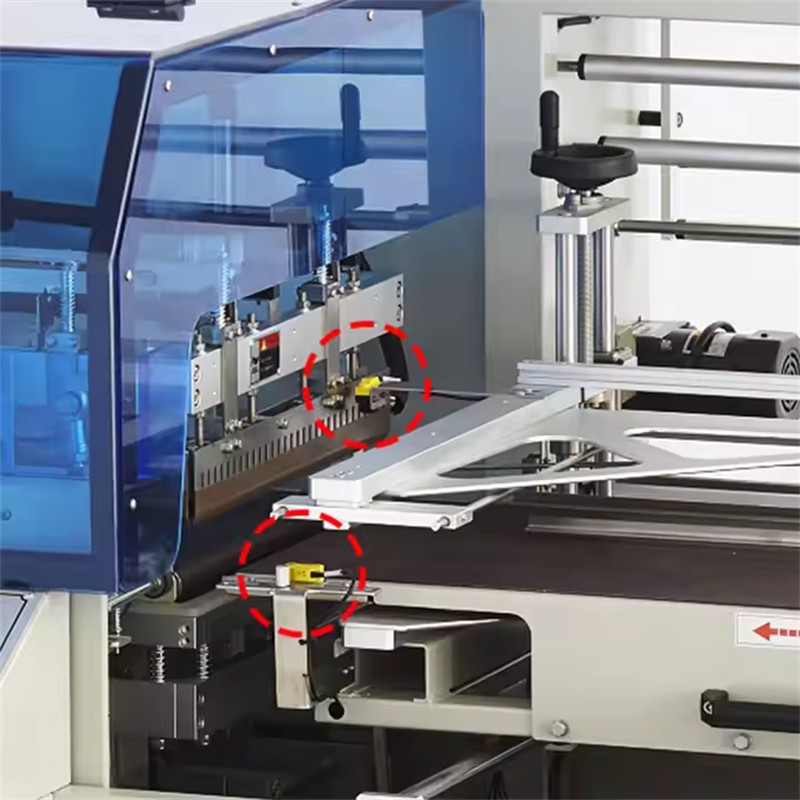

effectively prevent incorrect,packaging, Equipped with imported horizontal and vertical detection photoelectric,

easy to switch selection. It has the function of contact,specially designed for packing small size products.

The machine can be connected with the production line, no need additional operators.

Machine parameters

MODEL	XLY-389
Sealing Type	High Speed Continuous Sealing
Installed Power	380V/50-60HZ/3Phase
Packing Capacity	Max. 70 Packs per Minute (Depends on Product Size)
Sealing Height	170MM
Packing Width	350MM
Conveyor Speed	Variable, 30M/Min
Film Thickness	12-30 Micron (Minimum-Maximum)
Packing Size	Width + Height < 450MM
Film Type	Center Folded POF/ PE Film
Max Film Roll Size	530MM(Width) X 280MM (Outer Diameter)
Power Consumption	3KW
Working Height	780-850MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats

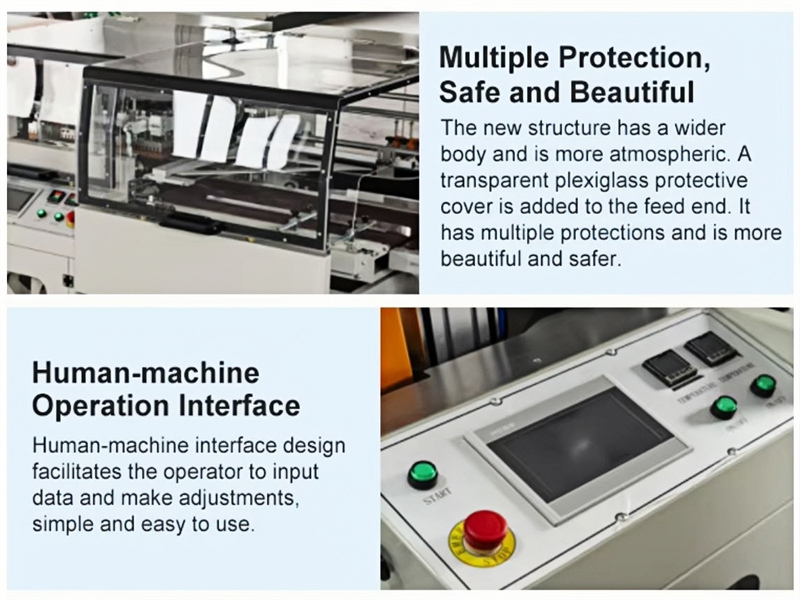

Operating Panel	Siemens Colorful Touch Screen, PLC.
Machine Material	Carbon Steel
Sealing Machine Dimensions	1825X1515X1350 MM
