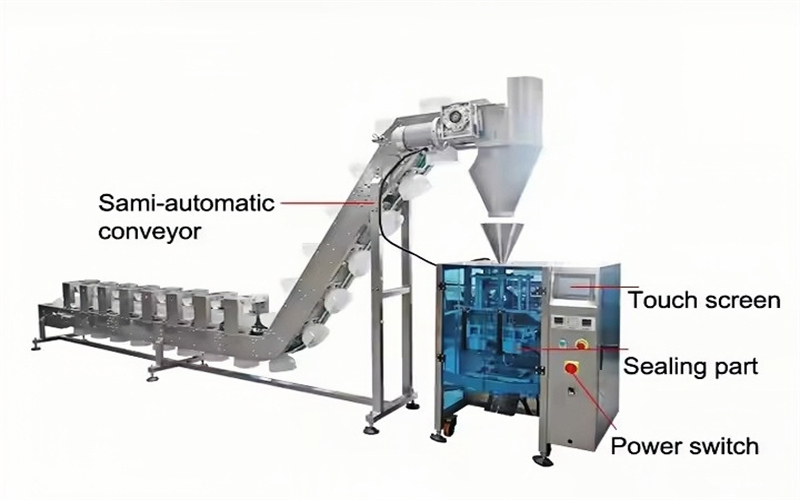

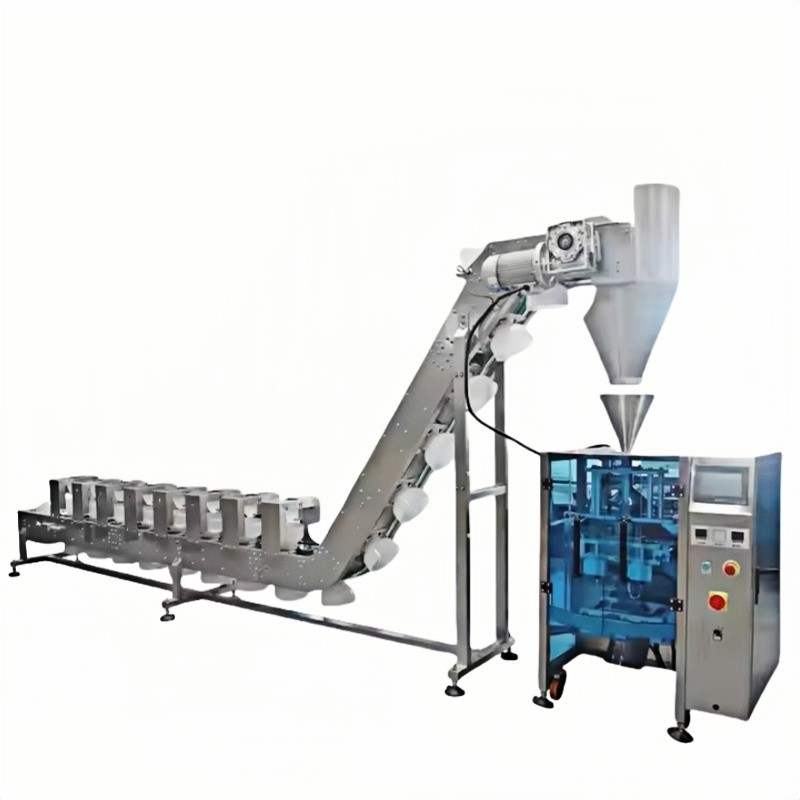

XLY-475 Granular Vertical Form Fill Seal Machine

Application
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Product Details

Product Tags


Feature

1.The machine completes the whole procedure of filling,measuring,bagging,date printing,charging

(exhausting),product out-putting automatically.
2.High precision,high efficiency without crash the materials.
3.New design with perfect fashion, more reasonable structure, more advanced technology.
4.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
5.Standard positioning with imported servo film transporting system and mark sensor, super excellent

capability for complete machine, perfect packaging.
6.With auto warning protection function to minimize loss.
7.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
8.Automatic correct function, save time, labor and film, the operation more intelligent.
9.Adopt external film feeding mechanism. Film setting be more easy and quick.


Machine parameters

Model XLY-475
Bag Length 50-300mm
Front Width 50-200mm
Film Width 420mm(Max.)
Packing Speed 30-85packet/min
Gas Consumption 0.45m³/min
Air Pressure 0.65Mpa
Power 220V AC 50HZ,single phase,2.2KW
Packaging Film Complex film
(OPP/CPP,OPP/PE,PET/PE etc)
Dimension(mm) 1600(L)×1150(W)×1480(H)mm
Net Weight 580KG

Application

All kinds of grain material, sheet material, strip material and abnormity material which such as candy,

melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond,

chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be

weighed by the ration.
