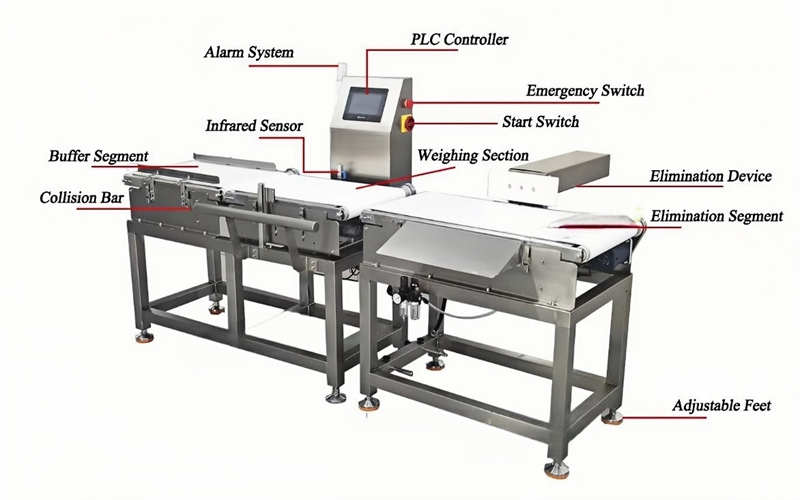

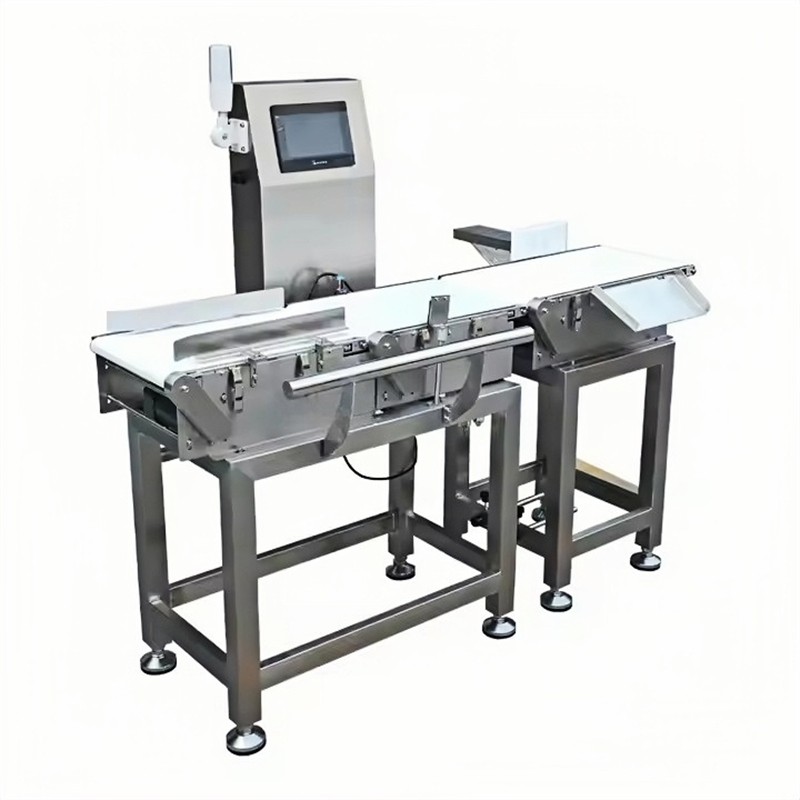

XLY-L-220 Check Weigher with Pusher Rejector

Application
This product is suitable for testing the weight of individual products. It is widely used in many industries such as electronics, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products.

Product Details

Product Tags


Feature

*Specially designed to increase production capacity and improve production efficiency;

* High-speed sampling control makes the equipment faster and more precise;

*10-inch large color touch screen, easy to use;

* Whole body 304 stainless steel structure, waterproof model is optional;

*A variety of product preset functions, switching products is simple and fast;
*Using Mitsubishi frequency conversion products, the speed is adjustable;
*The modular structure is easy to maintain and clear;
* Zero point tracking: manual or automatic zero clearing, and dynamic zero point tracking;
*Customizable: The model can be customized according to the size of the customer's product.


Machine parameters

Model XLY-L-220 XLY-L-330
Control System SIEMENS PLC and 7" HMI (WEINVIEW or SIEMENS)
Weighing range 10-1000 grams 10-2000 grams
Accuracy +1.0 grams +1.5 grams
Product Size 10<L<220; 10<W<200MM 10<L<220; 10<W<280MM
Mini Scale 0.1 grams
Weigh Belt 420L*220W mm 500L*320W mm

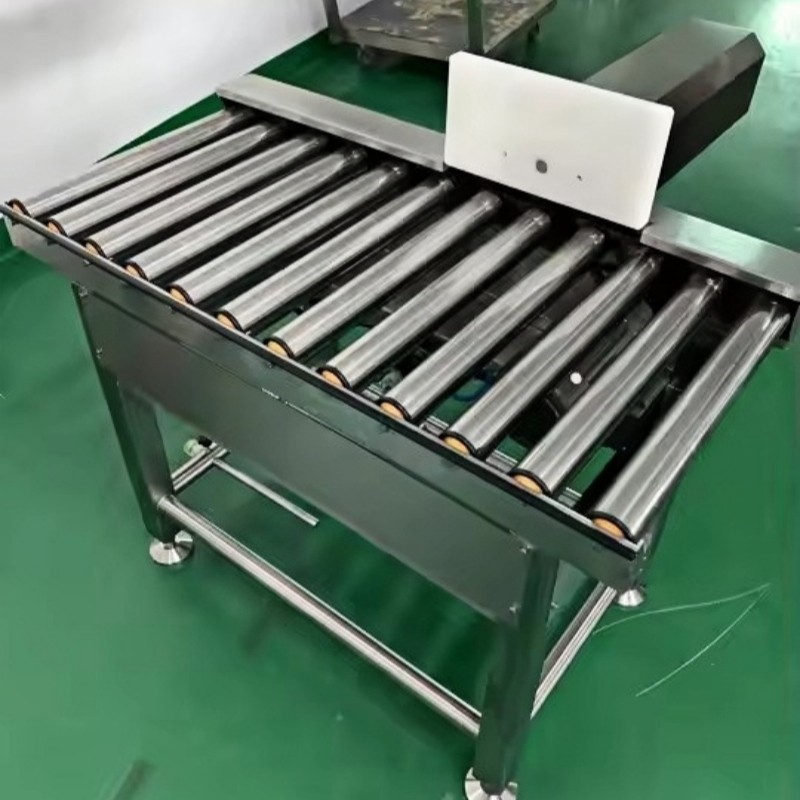

Reject system Reject Arm/Air Blast/ Pneumatic Pusher
Power supply 220V/50HZ or 60HZ Single Phase
Packing Dimension 1600L*500W*900H mm
Gross Weight 200kg 250kg


Application

This product is suitable for testing the weight of individual products. It is widely used in many industries

such as electronics, food, beverages, health products, daily chemicals, light industry, agricultural and

sideline products.
