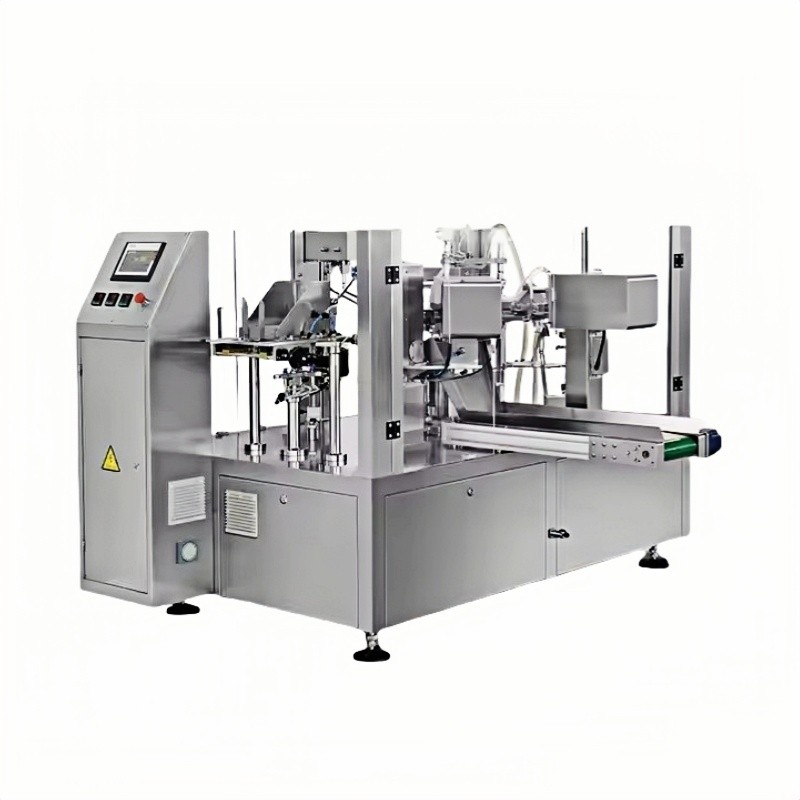

XLY-200Y Rotary Premade Pouch Packing Machine

Applicable Product
* Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
* Granular type: crystal monosodium glutamate, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar,pesticide, fertilizer, etc.

INQUIRY

Product Details

Product Tags

Features and Characteristics

1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

2. Easy to adjust: All working process in one station, more easily adjusting.

3. Frequency control: Speed can be adjusted by frequency conversion within the range.

4. High Automation: Unmanned in weighing and packing process, machine will show alarm automatically

when failure.

5. Pouch size change: 8 sets of gripper can be adjusted hand wheel at one time .

6. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.

7. Machine will show alarm and stop when inadequate air pressure.

8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.

10. Imported engineering plastic bearings, no need oil, no contamination.

11. Oil-free vacuum pump, avoid the pollution of the production environmental.

Machine parameters

Model	XLY-620Y	XLY-260Y	XLY-300Y	XLY-400Y
Bag Size	Width:100-210mm, Length:100-350mm	Width:120-260mm, Length:120-350mm	Width:180-300mmMLength:180-400mm	Width:280-400mm, Length:280-650mm

Filling Volume	5-2500g (Depending on type of products)			Max 5kgs
Capacity	30-60bags/min	30-60bags/min	30-40bags/min	20-30bags/min

	(The speed depends on products and packaging material )	(The speed depends on products and packaging material )	(The speed depends on products and packaging material )	(The speed depends on products and packaging material )

Package Accuracy	Error≤±1%
Total Power	4 KW (220V-450V, 3PH, 50HZ/60HZ
Demension	2300×1500×1600	2400x1500x1500	2460×1700×1500	2520×1750×1600
Weight	1700 KG
