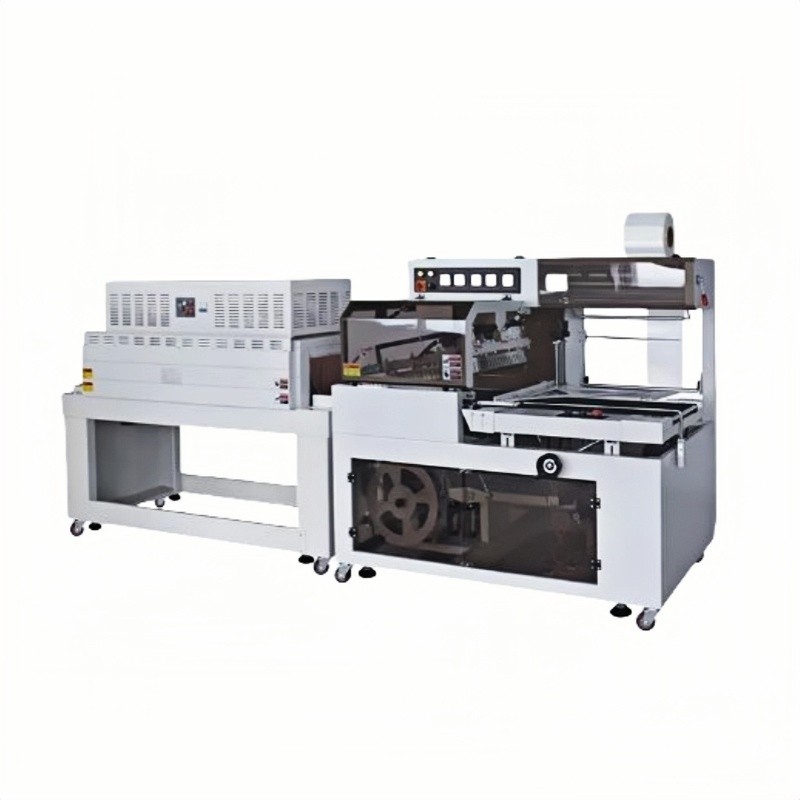

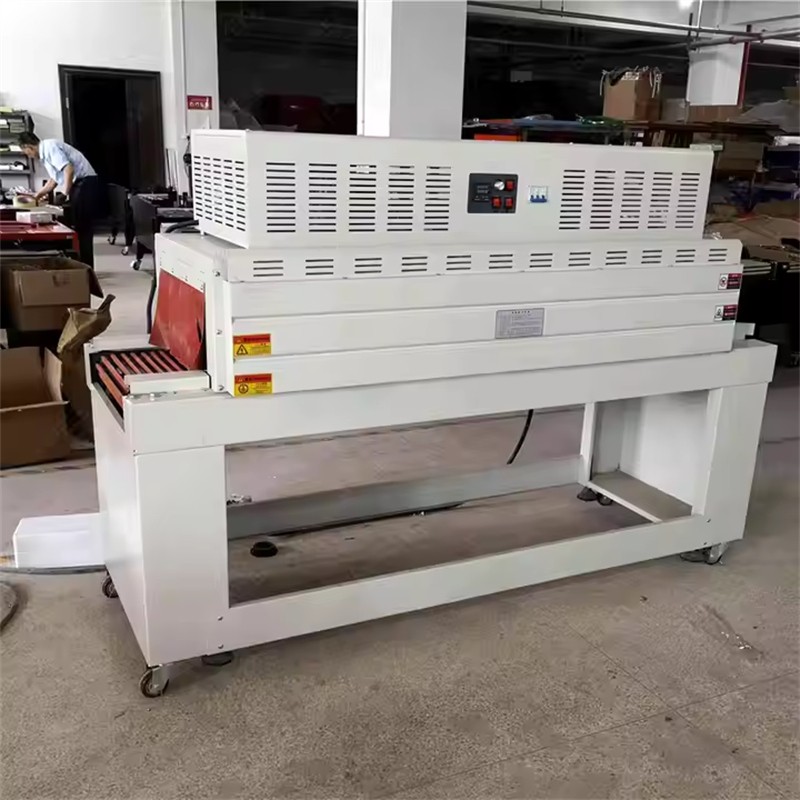

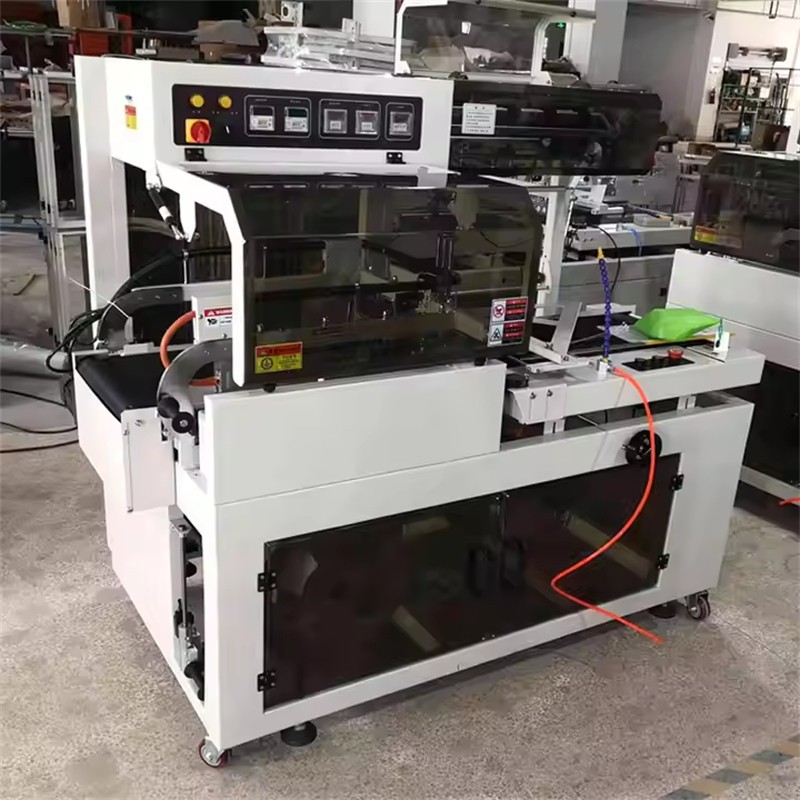

XLY-450A Automated Shrink Packing Wrapping Tunnel Machine

Application:
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.

Product Details

Product Tags

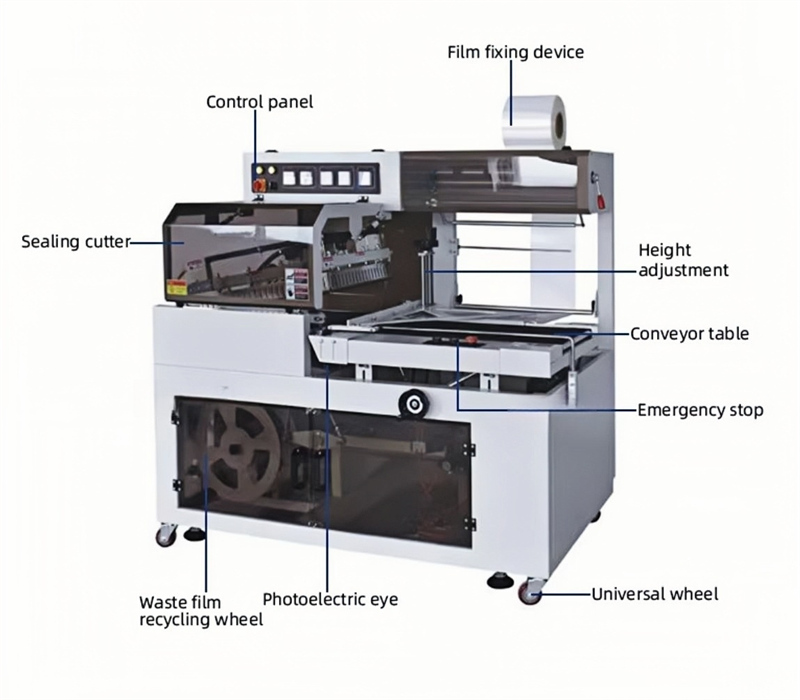

Feature

1.The machine is sealed and cut with special imported materials. The surface coating is made of Teflon

high temperature resistant material to ensure that the seal is not broken and the sealing line is strong.

2.This machine adopts two sets of photo electricity, horizontal and vertical, which is convenient to switch.

For thin or small products, the packaging can be easily completed.

3.This machine automatically feeds, the length can also be automatically adjusted through the combination

of photoelectric and timer; equipped with sensory motor, automatic coiling waste.


Machine parameters

Model XLY-450A
Power Supply 220/50-60HZ
Use power 5-7.
power 1.35KW
Packaging speed 15-30bags/min
Maximum packaging size L+H (H<150mm) <500mm
Maximum packaging size W+H (H<150mm) <400mm
Sealing knife size L * W (mm) 550×450
Machine dimensions (L * W * H) 1650x800x1450mm
Operating Weight 300kg
Suitable for shrink film POF.PE


Application

Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed

matter, cosmetics, gifts, electronic products, toys and other products.
