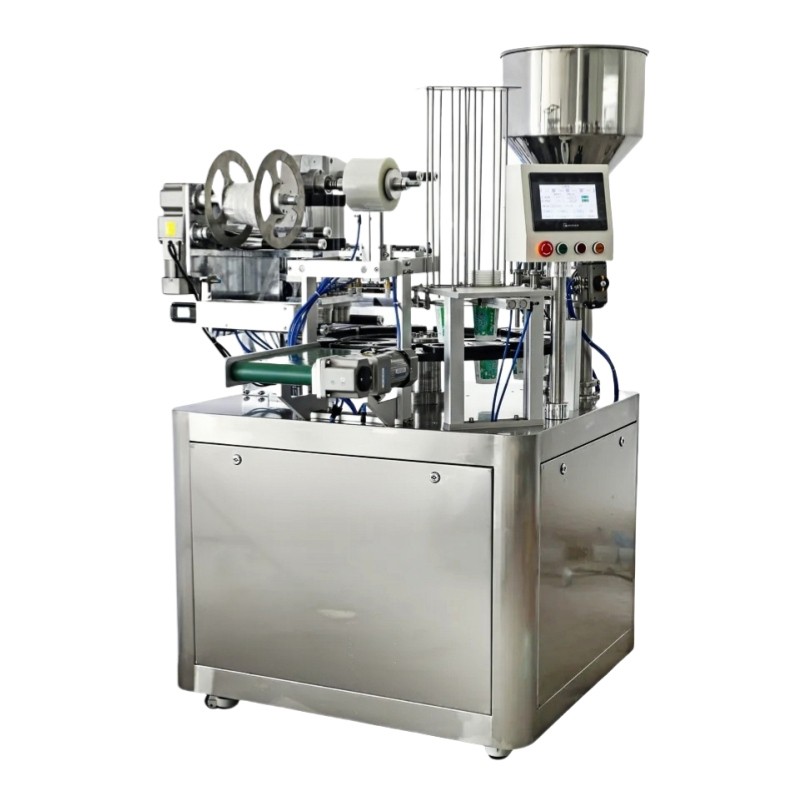

XLY-657 Automatic Rotary Plastic Cup Filling Sealing Machine

Application
Suitable for jelly, juice, jam, yogurt, ice cream, salad, pudding, condiments, beverages, chocolate, mineral water and other food filling and sealing.

Product Details

Product Tags


Feature

1. Use touch screen to set parameters, support multiple languages, easy to operate.
2. Stable operation, filling quantity and filling speed can be adjusted arbitrarily.
3. Intelligent PLC control system, reliable operation of the machine.

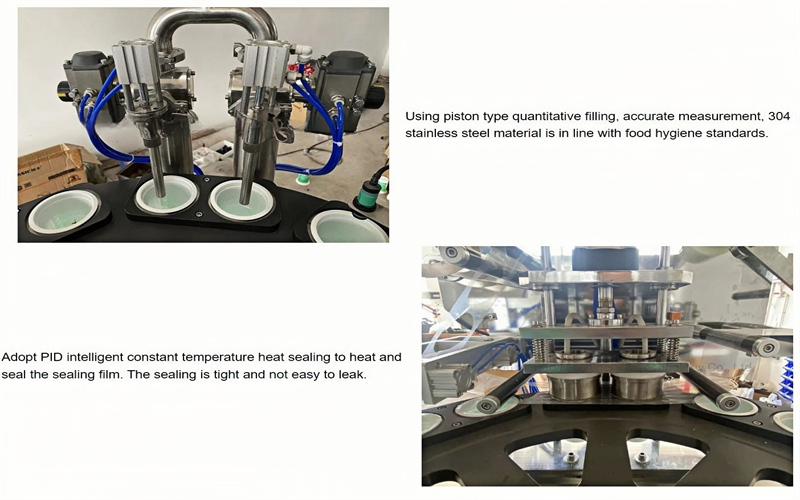

4. PID independent control of temperature, more suitable for different packaging material.
5. Multiple automatic alarming functions, maximum deduction the loss.
6. New-style turntable design, small footprint, easy to detect and maintain.

7. Convenient to change products with different specifications.


Machine parameters

Type

XLY-657

Name

cup filling and sealing machine

liquid filling and capping machine

Packing speed

2000-2400 pcs/H(Actual speed   needs testing)

Filling Head

2heads

Power Voltage

380V 50HZ

Total Power

3.5kw

Size(L*W*H)

1200*1050*1950 mm

Weight

about 380kg


Application

Suitable for jelly, juice, jam, yogurt, ice cream, salad, pudding, condiments, beverages, chocolate,

mineral water and other food filling and sealing.
