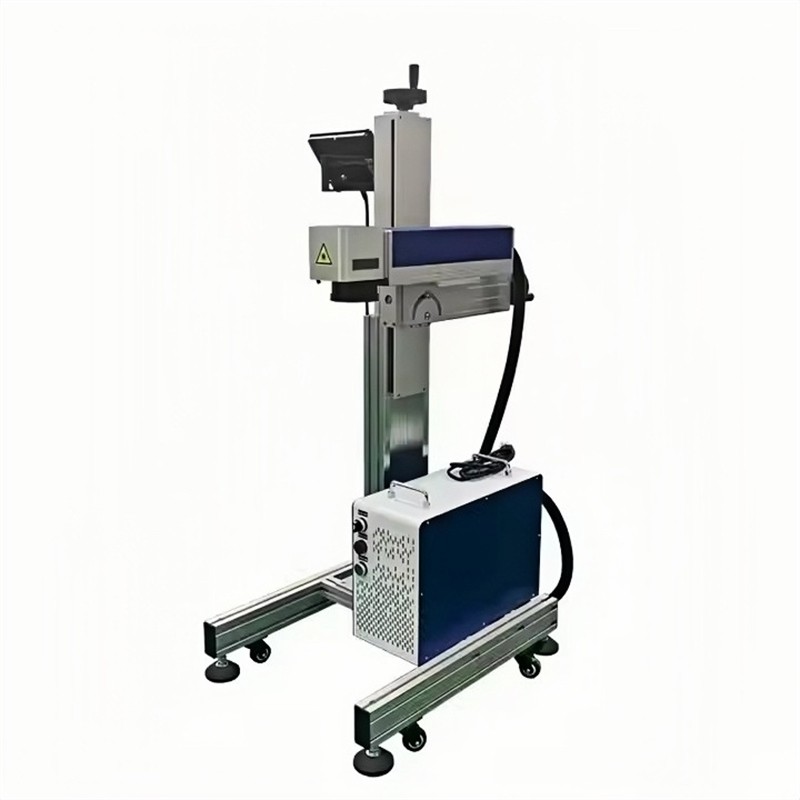

XLY-835 High-Speed Non-Stop Laser Marking Machine

Application
Laser marking machine is able to engrave a variety of non-metallic materials and can be widely applied to the laser marking of paper, PVC,rubber, ceramics, acrylic, organic glass, resin, leather, cloth, bamboo, wood crafts.

Product Details

Product Tags

Product parameters

Model XLY-835
Laser Power 20W
Laser Wave length 1064nm
Repeat Frequency 20KHz-80KHz
Repeat Postioning Accuracy 0.005mm
Laser Beam Quality M2:1.5
Min Linear width 0.01mm
Marking Speed 0-7000mm/s
Marking Depth 0-2mm
Standard Marking Area 70mmx70mm,200mmx200mm,300mmx300mm
Marking Format Graphics,Text, Bar Codes, Two-dimensional Code


Feature

1.Mark on most metal materials and non-metal materials like:PE/PVC/HDPE etc.
2.laser life can up to 100000 hours.
3.Windows-based marking software. real-time monitoring the laser power and pulse frequency.
4.Small size,stable and reliable marking system, free- maintenance.
5.Marking contents include text, graphics, pictures, serial numbers, bar codes, or it's combinations.
6.High-performance digital galvanometer scanning system,perform high-speed and high-precision.
7.It is in line with international safety and operating standards.


Application

Laser marking machine is able to engrave a variety of non-metallic materials and can be widely applied

to the laser marking of paper, PVC,rubber, ceramics, acrylic, organic glass, resin, leather, cloth, bamboo,

wood crafts.
