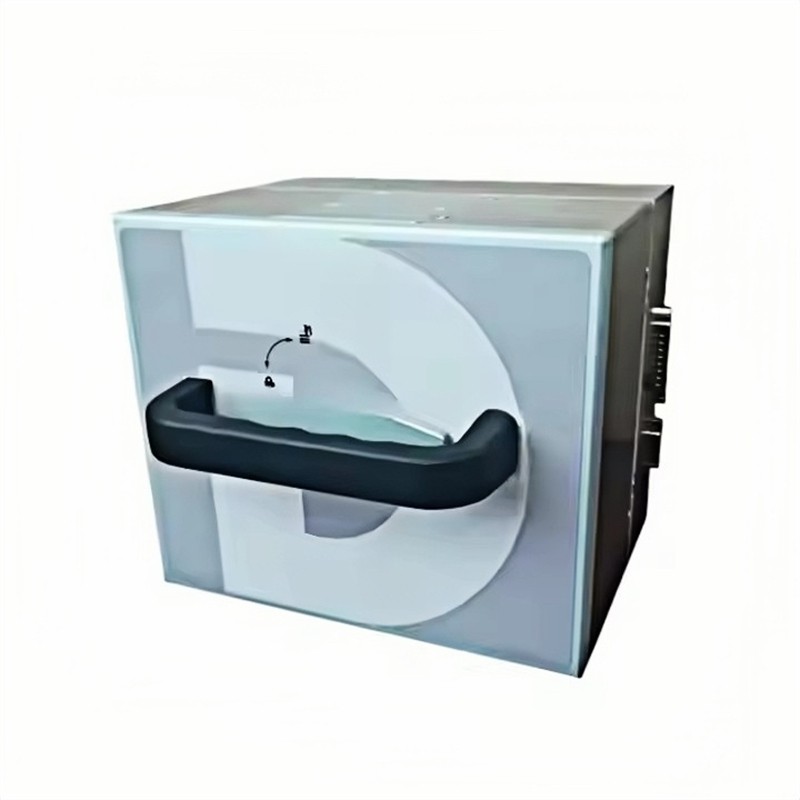

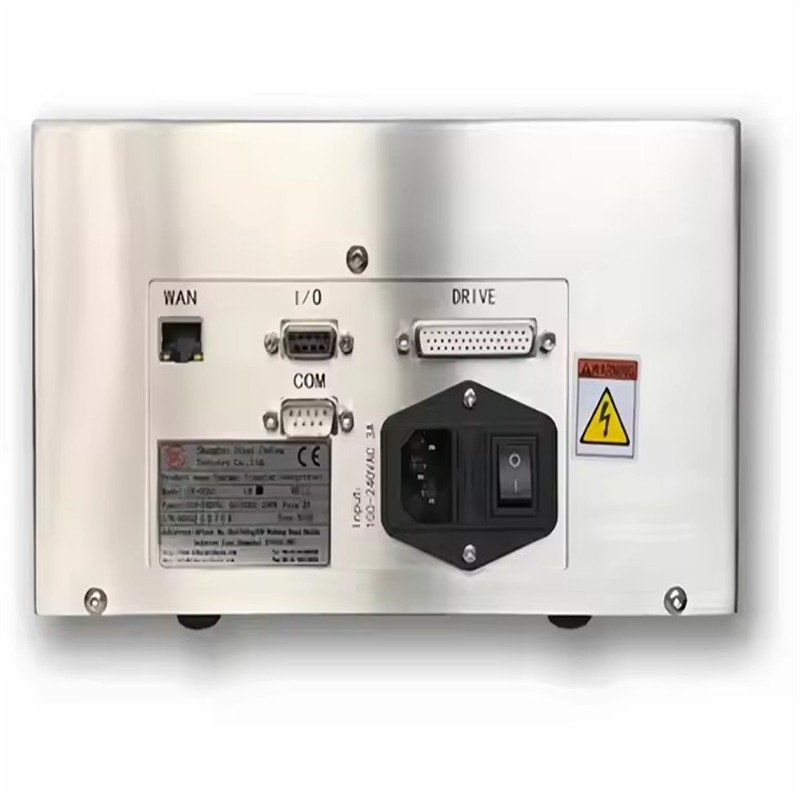

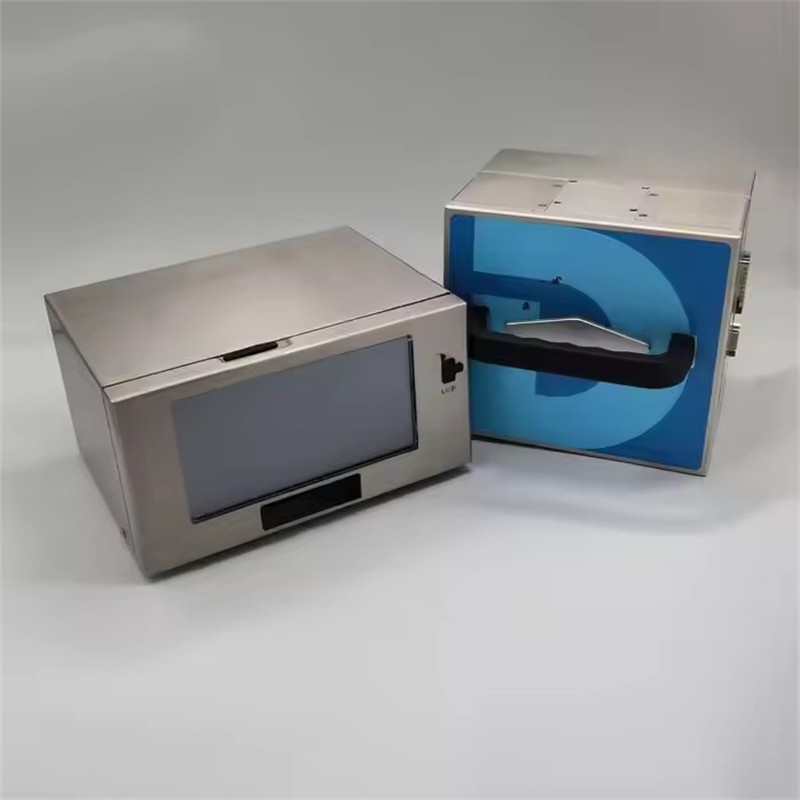

XLY-828 Smart Coding Machine

Product description
It is one of most cost-effective smart coding machines, It can help customers to manage and use the manufacture data for identification, verifying, product promotion and logistic tracing. All these solutions are widely applied to industries of food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, wood industry, etc. It has two types: Right hand machine & Left hand machine.

INQUIRY

Product Details

Product Tags

Product description

It is one of most cost-effective smart coding machines, It can help customers to manage and use the

manufacture data for identification, verifying, product promotion and logistic tracing. All these solutions

are widely applied to industries of food, paper making, medicine, seeds, medical equipment, cosmetics,

daily tissue, daily chemicals, wood industry, etc. It has two types: Right hand machine & Left hand

machine.

Product parameters

Model	XLY-828	XLY-829
Print Model	Intermittent	Continuous

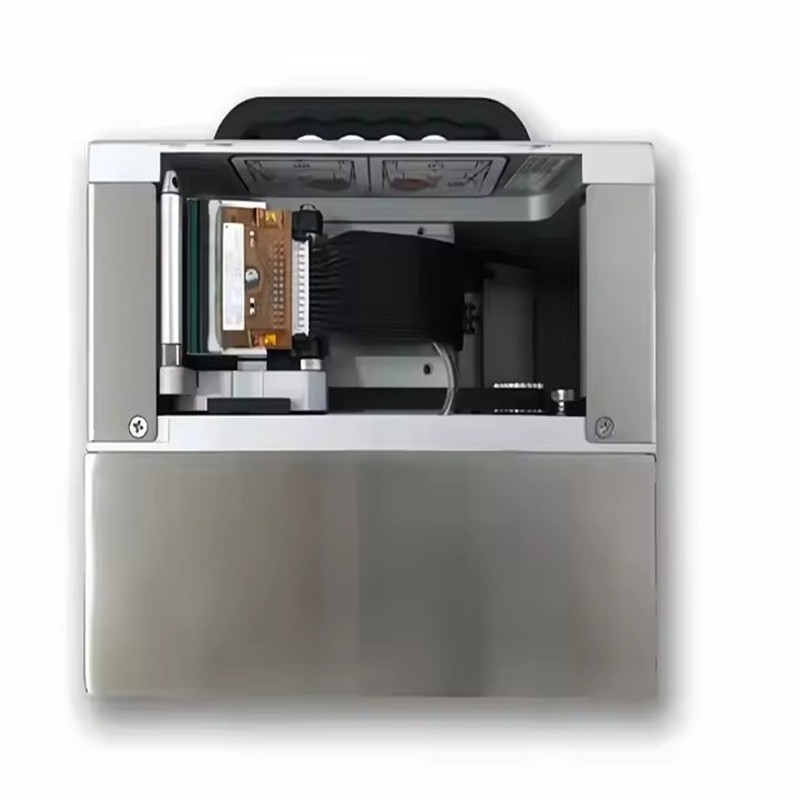

Print Head	53mm width,300DPl
Print Area	53mm X 70mm	53mm X 150mm
Print Speed	6-20m/min	<40m/min
Frequency	<200 times/min
Ribbon	22mm -55mm*600m
Electricity	AC100~240 V, 50/60Hz
Power	200W
Working Temp	0-40°C
Air supply	0.6Mpa (max),dry,non-polluted air
Weight	Print unit: 9.3kg.Controller: 2.0kg
Dimension(LxWxH)	Print unit:210mmx213mmx180mmController:233mmx180mmx155mm

Feature

1. High cost-effectiveness.
2. Unique ribbon box spool structure (making ribbon replacement more convenient).
3. Flexible and reliable input/output control.
4. The perfect presentation of 300DPI ensures clear and firm coding effect.
5. Suitable for various on-site environments, meeting long-term high load operations.
6. The overall cost has been greatly reduced, leading the popularization and promotion of heat transfer

printing technology.
7. Support various Chinese and English fonts, various formats of dates, various variables, automatic

generation of serial numbers, and the ability to print one-dimensional codes, two-dimensional codes,

images, and tables.
8. Stable and fast coding, good printing effect, and strong compatibility.
