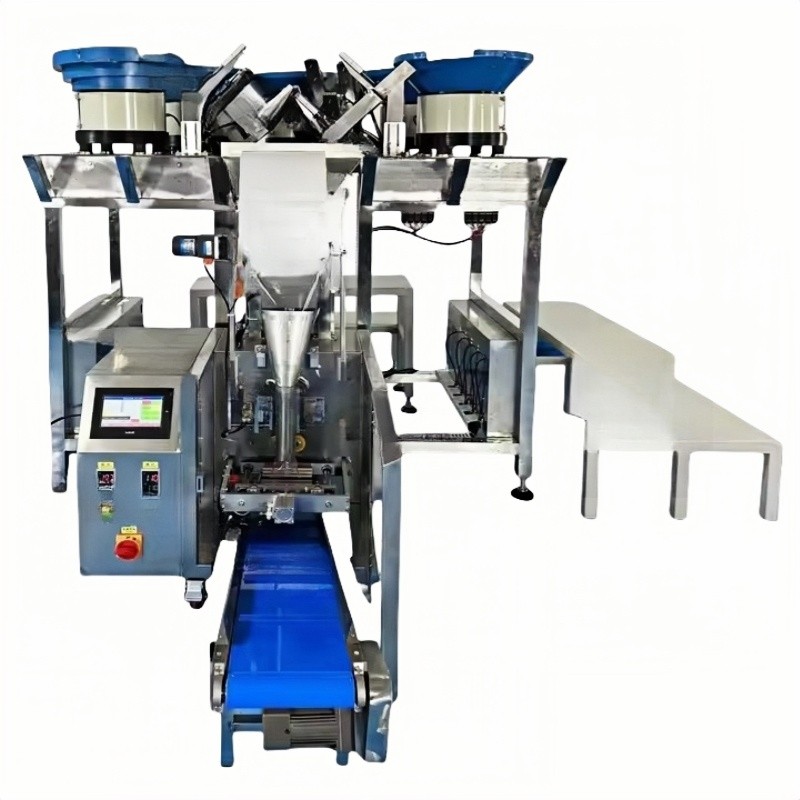

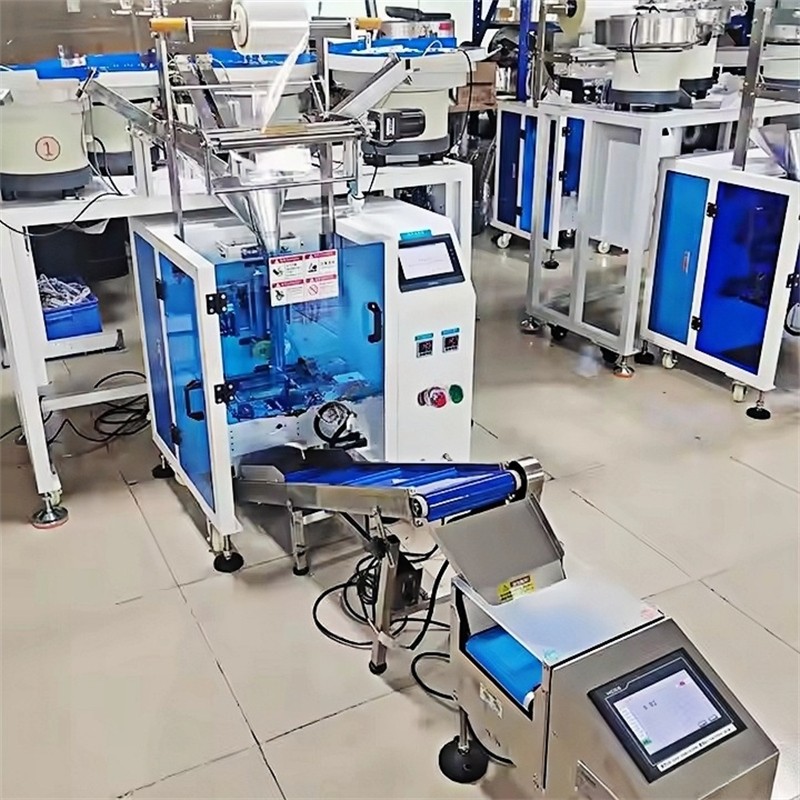

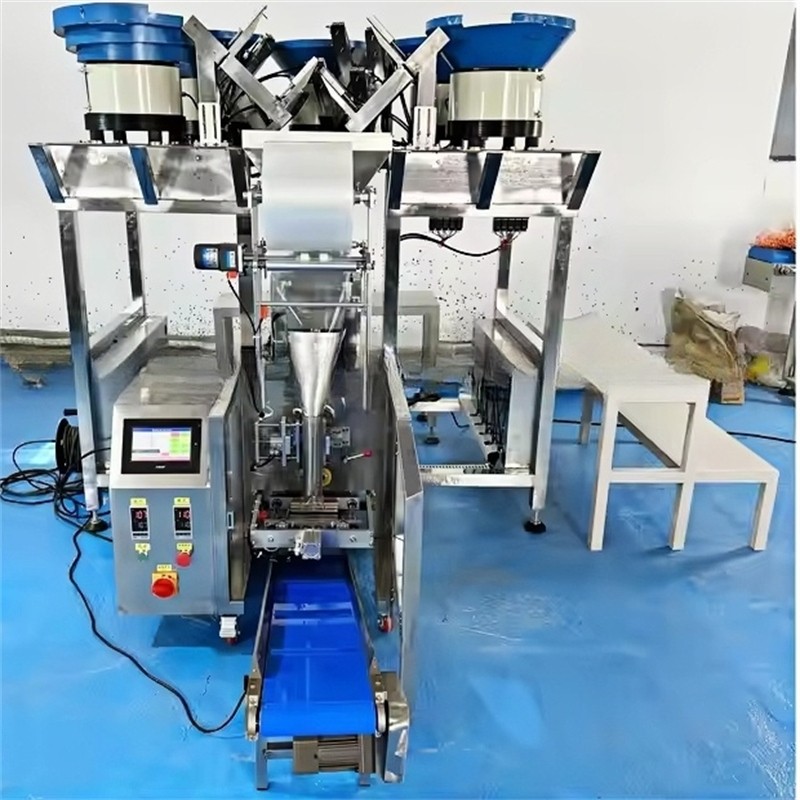

XLY-680 Automatic Candy Counting Packaging Machine

Application
Suitable for products that require a bag width of less than 150mm and a vibrating disc that can automatically sort materials, such as food candies and milk tablets; Tablets, pills, capsules; Hardware fasteners such as bolts, nuts, washers, etc; Furniture accessories, toy blocks, etc.

INQUIRY

Product Details

Product Tags

Machine parameters

Model	XLY-680
Vibrative filler speed	80--200pcs each filler per minute.
Vibrative filler speed	(Depends on the sizes and amount of the products)
Vibrative filler amount	3 Vibrative fillers (Can be customized 1--30 fillers)
Filling amount	Adjustable
Filling speed	20--40times/min (Depends on the amount of the products)
Accuracy	± 1%
Machine material	Stainless steel 304 or Stainless steel 316
Control system	PLC & Touch screen
Power supply	AC 220V 1 phase 50/60Hz, AC 380 V 3phases 50/60Hz.
Power	3.5Kw.
Air consumption	0.6-0.8 Mpa. 300L/min
G.W.	(Roughly) 650KG
Dimension	(Roughly) L3000×W1870×H1250 mm

Features

1. With PLC system,raster counting,human-machine interface and easy operation
2. Servo film-pull system,pneumatic control system,accurate positioning and high stability.
3. With auto alarm function to reduce the loss.

4.Can finish the function of measuring,counting,bag forming,filling,sealing and date printing. Consist

of vibration plate,raster measurer,feeding part and bag former part. Will set several vibration plate

according to different products to improve the diversification of the products.
