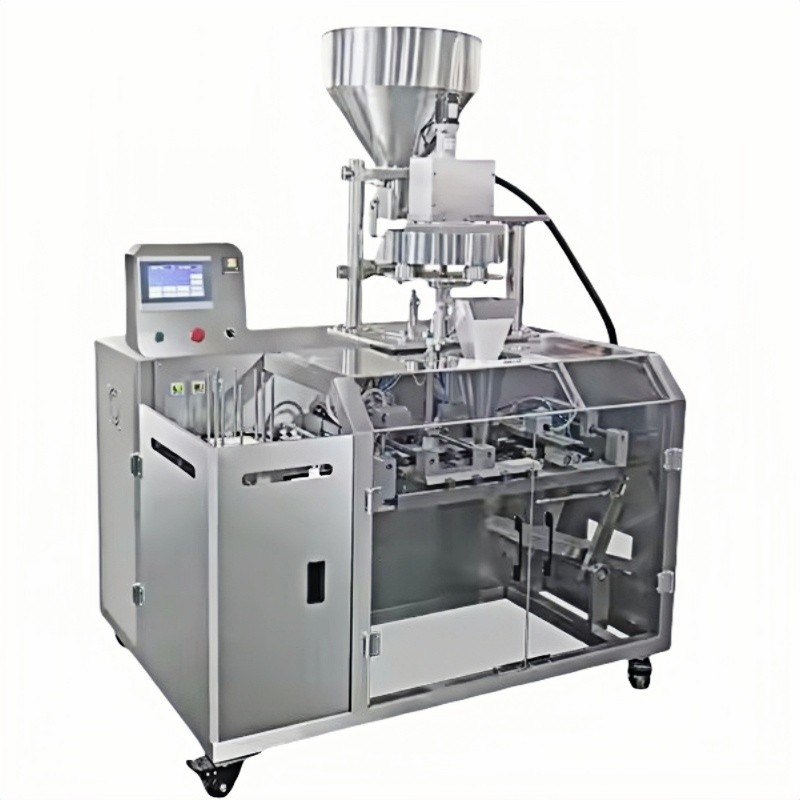

XLY-590 Mini Doypack Packing Machine
Product feature
1. Wide range of pouches: all kinds of pre-made pouches such as flat and stand-up pouches (with/
without zip).
2. Easy to operate: PLC and color panel, fault indication on the panel.
2. Easy to adjust: Only needs 10 minutes to suitable for different pouches.
3. Frequency control: speed can be adjusted by frequency conversion within the range.
4. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
5. Using servo control system, the machine runs reliably and stably.
6. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
7. The packaging process is fully automatic without manual operation.it can be vacuum, filled with
nitrogen, combined feeding.Different blanking structures can be selected according to the nature
of the filling material, and can be configured according to customer requirements to print batch
number and other functions.
Machine parameters
| Equipment name | Premade Bags Weighing filling machine |
| Model | XLY-590 |
| Voltage | 110V/60HZ 220V/50HZ AC |
| Power | 2 KW |
| Filling range | 20-500g(Reference material, rice) |
| Working speed | 20-35 times/min (depending on materials and packing weight) |
| Gas source | ≥0.6 Mpa |
| Size | 1660 * 1301 * 2228 MM |
| Weight | 450 KG |
Application
This pouch packaging machine is suitable for a wide range of applications, designed to handle
different product types including powders, liquids, and granules:
It is used in fertilizers, spices, masala, chili powder, protein powder, coffee powder, instant beverage
powder, flour, Rice noodles, corn powder, coconut powder, washing powder, pesticide powder, etc.
Tea, fertilizer pellet, snacks, biscuits, cookies, chips, chocolate, candies, nuts, dates, peanuts, seeds,
coffee beans, tea, cereals, grain, dried food, dried fruits, dried vegetables, rice, sugar, pickles, salt,
noodles, pet food, beef jerky, pills, capsules, herbs, bolts & nuts, hardware parts, tissue paper packets,
wet wipe packets, etc.
Liquid fertilizer, liquid detergent, liquid soap, car wash detergent, edible oil, soy sauce, duck sauce,
salad, mayonnaise, tomato paste, tomato ketchup, anchovy essence, cocktail sauce, salsa, barbecue
sauce, ranch dressing, hot sauce, cosmetic cream, pet food, soup, milk, yogurt, honey, juice, drinks,
peanut butter, chocolate paste, etc.
