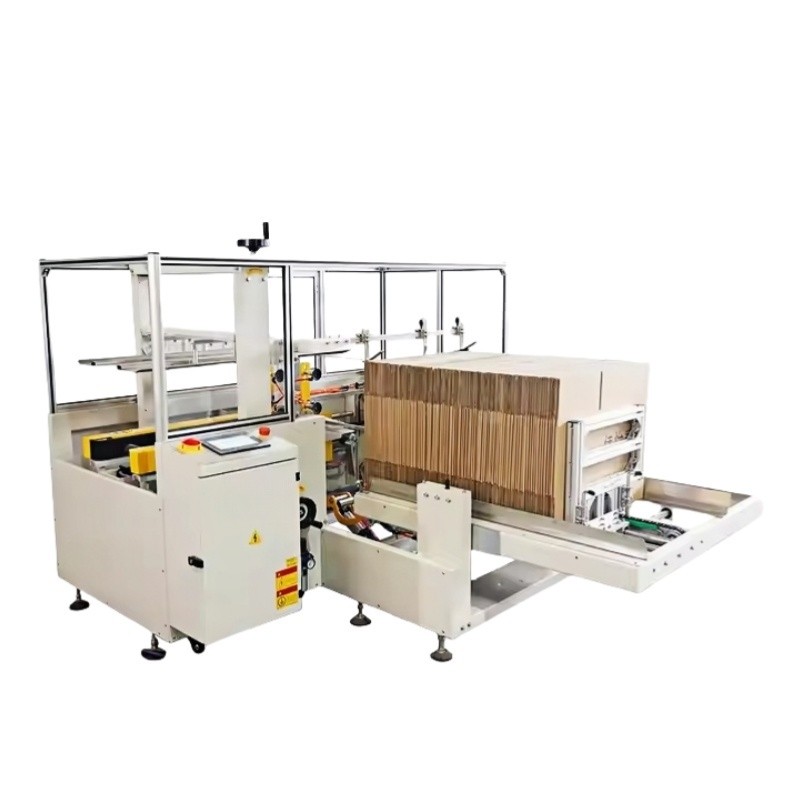

XLY-649 Fully Automatic Box Case Carton Erector

Machine introduction
Carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes. Equipped with our consistency system, it runs precisely and reliably. This machine provides extremely secure sealing effect, without tape slipping problems. Hot melt glue system is optional. It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.

INQUIRY

Product Details

Product Tags

Machine introduction

Carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.

Equipped with our consistency system, it runs precisely and reliably. This machine provides extremely

secure sealing effect, without tape slipping problems. Hot melt glue system is optional. It is widely

used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,

strapping machine and conveyor system accordingly.

Machine parameters

Model	XLY-647
Carton size	L(250mm-900mm); W(160mm-400mm);
Carton size	510<(L+W)<1200mm; 285＜W/2+H＜700mm
Packing speed	8-12pcs/min
Width of adhesive tape	48mm,60mm,72mm
Power	200W
Voltage	220V/ 50Hz single phase
Air supply	6kgf/cm2, 450nl/min
Conveyor height	Min.600mm Max.700mm Standard height:650mm
Machine dimension	L2100mmW2100mmH1480mm
N.W	450kg
