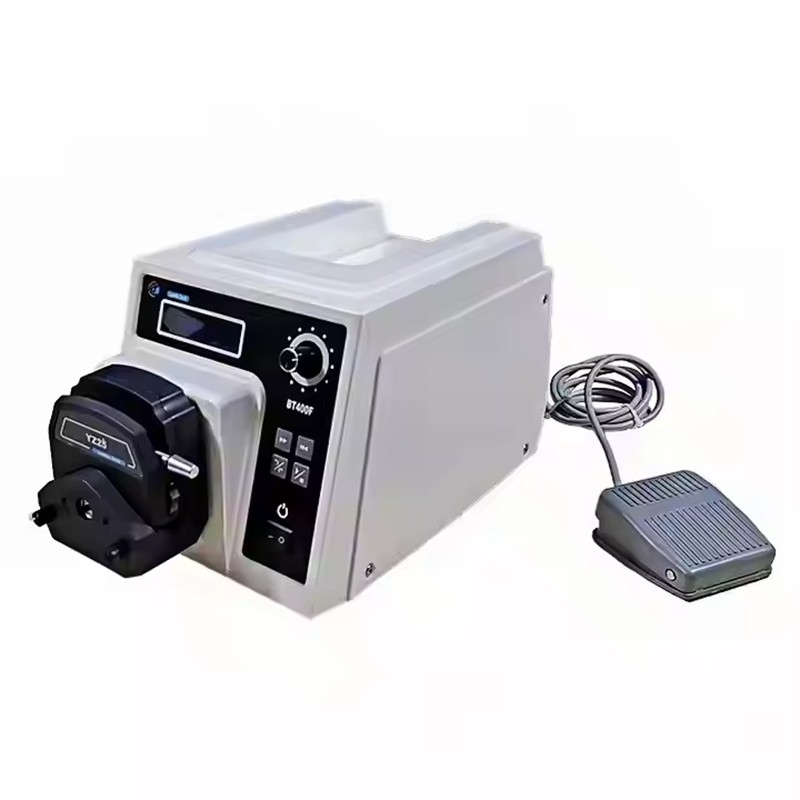

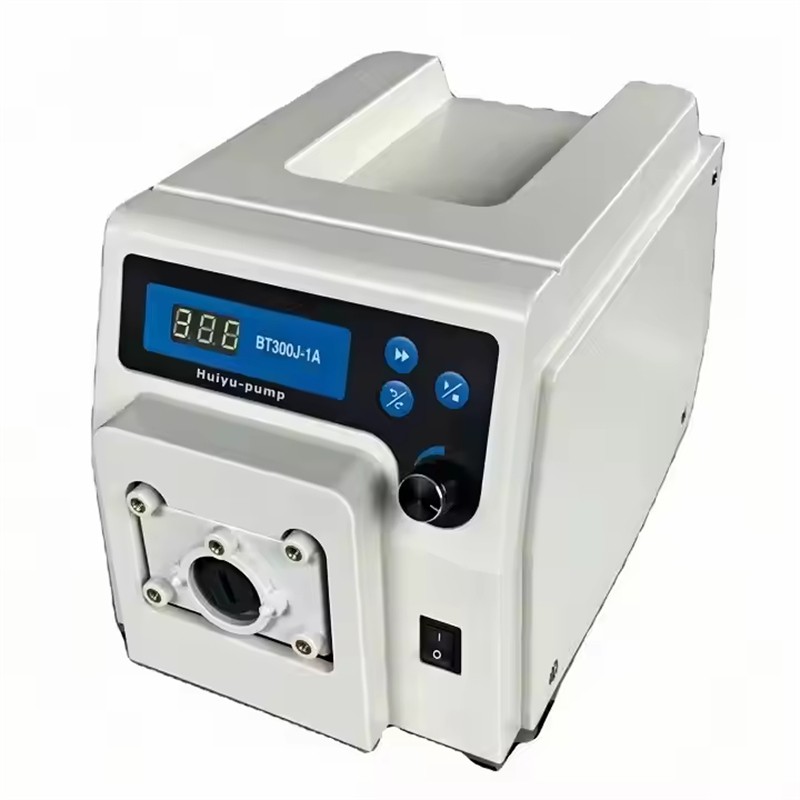

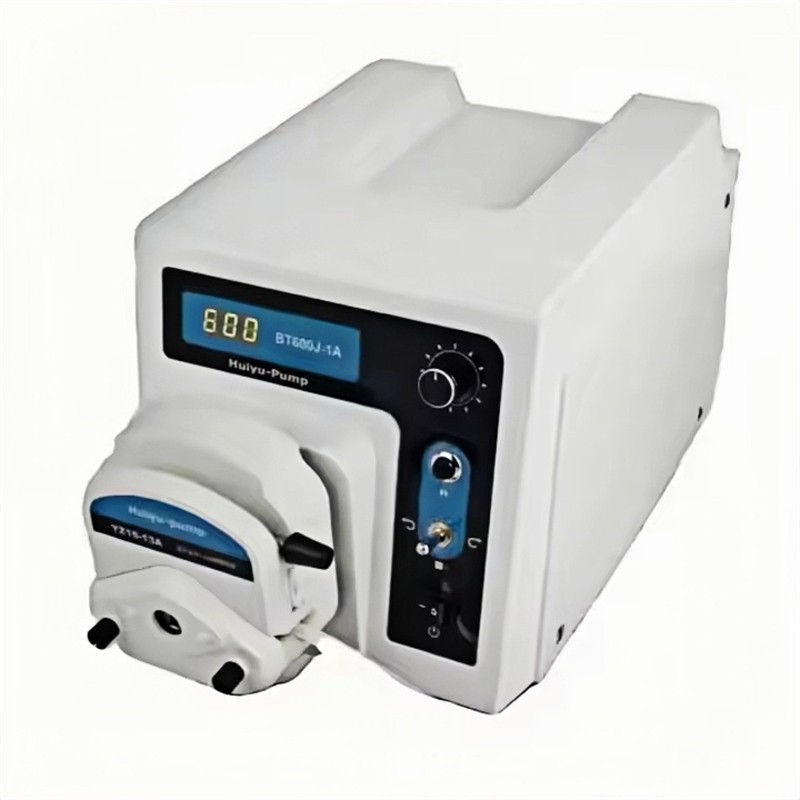

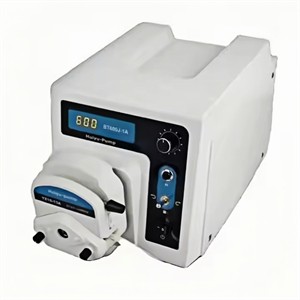

XLY-15-1A Liquid Pump Filling Machine

Product description

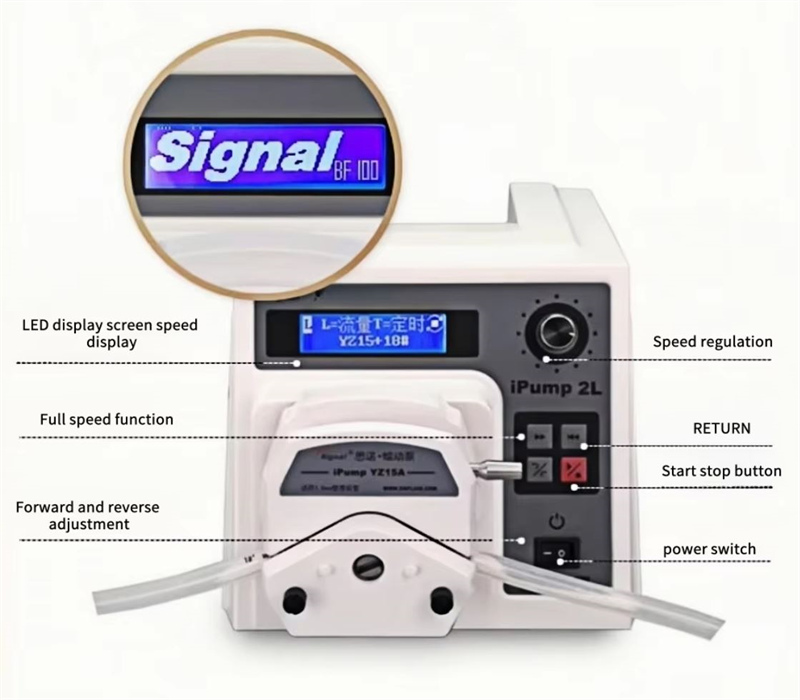

The pump delivers flow rates from 0.2μL to 500 mL/min and dispensing volume is from 0.01mL to 9900 mL. Combining 128*32 LCD display with membrane keypad and rotary encoded switch makes the operation easy and prompt.The speed can be adjusted manually or automatically through external control interface.

INQUIRY

Product Details

Product Tags

Product description

The pump delivers flow rates from 0.2μL to 500 mL/min and dispensing volume is from 0.01mL to

9900 mL. Combining 128*32 LCD display with membrane keypad and rotary encoded switch makes

the operation easy and prompt.The speed can be adjusted manually or automatically through external

control interface.

Product parameters

Pump head model	Available tubing	flow rate range (ml/min)
XLY-15-1A	13#,14#,19#,16# ,25#,17#,18# wall thickness 1.5mm	0.7-2200ml/ min
2* XLY-15-1A	13#,14#,19#,16# ,25#,17#,18# wall thickness 1.5mm	single channel 0.7-2200ml/min
XLY-25-1A	15# ,24# wall thickness 2. 5mm	17- 1600ml/min
2* XLY-25-1A	15# ,24# wall thickness 2. 5mm	single channel 17- 1600ml/min
XLY-35-1A	24# wall thickness 2.5mm	29- 1600ml/min
XLY-25	15#,24#,35#,36#	34-6000ml/min

Specification

- Speed: 1 to 600 rpm, reversible

- Speed Resolution: 1 rpm

- Speed Control: Rotary encoded switch
- Display: 3-digit LED displays current speed

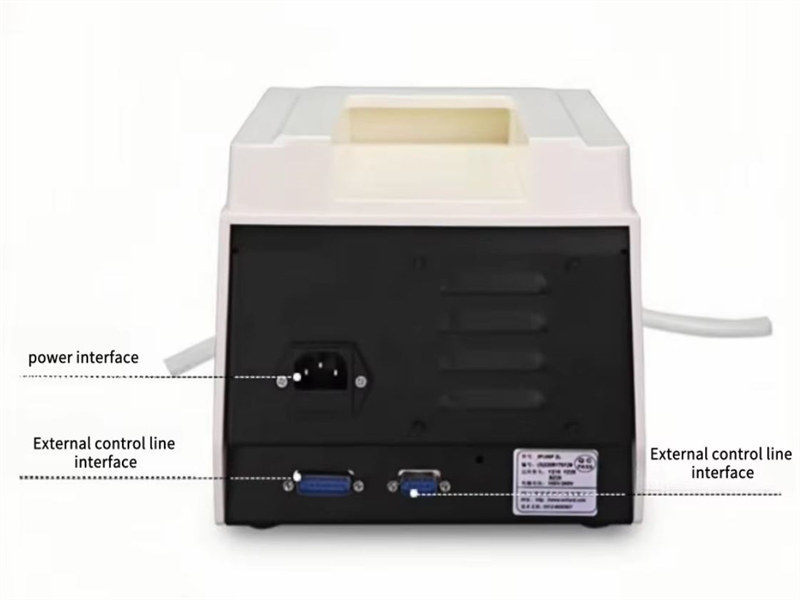

- External control: Start/stop and CW / CCW control, 0 to 5V, 0 to 10V, 4 to 20mA and 0 to 10kHz

speed control
- Power Supply: AC 90 - 260V 50/60 Hz
- Power Consumption: <100W
- Operating Condition: Temperature 0 to 40 degree, Relative humidity < 80%
- Dimensions (L× W× H): 280× 200× 180 (mm)
- Drive Weight: 3.8 kg
- IP Rating: IP 31
